V NOTICE:
Befo re attaching any cables, verify that the connector pins are
aligned correctly to avoid damaging the connectors.

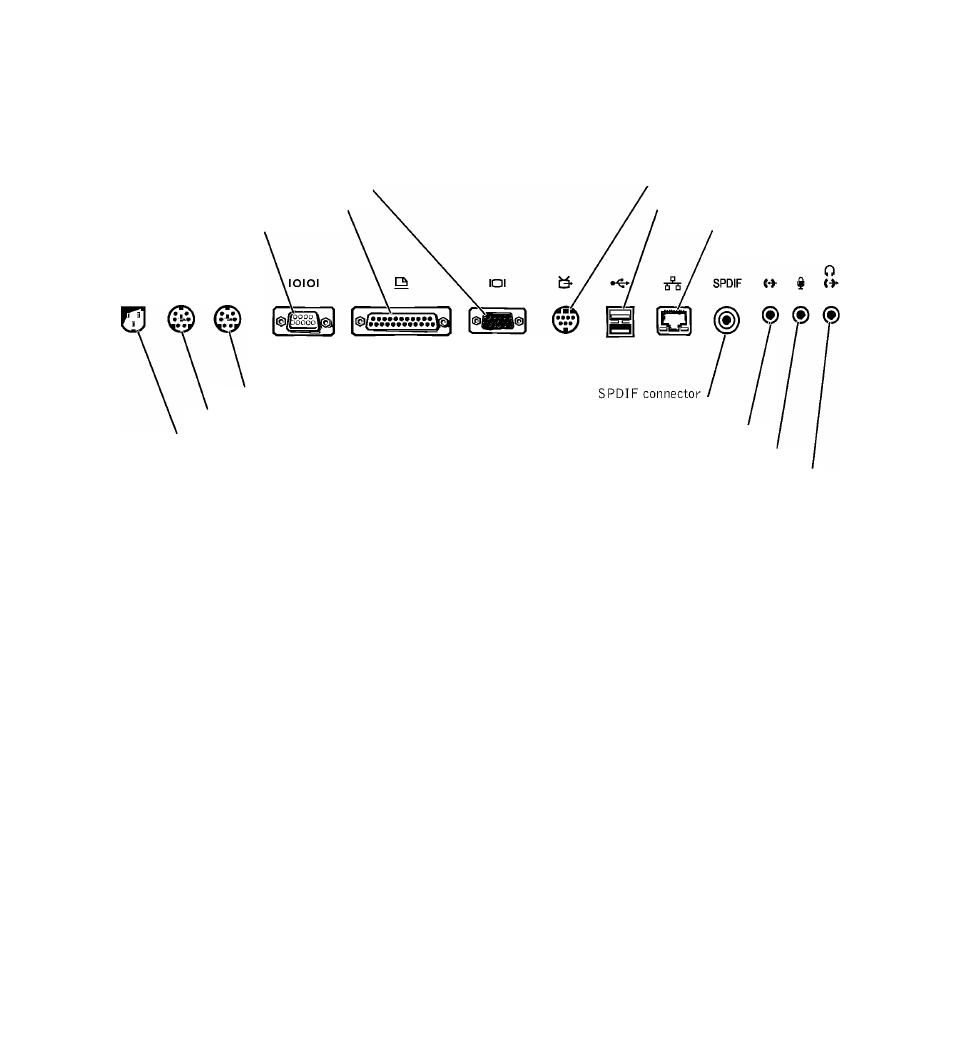

monitor connector
parallel port connector
serial port connector
TV-out S-video connector
dual USB connector
NIC connector
(APR only)
—
keyboard connector
PS/2 mouse connector
AC adapter connector
line-in connector
microphone connector
line-out connector
2 If the cable connector from the external device has thumbscrews,
tighten them for a proper connection.
3 Connect the external devices to an electrical outlet, if applicable.
Connectors on a Port Replicator
The following table shows the icons for each of the connectors on the back
of the port replicator and indicates the type of external device(s) that you
can attach to each connector.
Connector
Icons
h
External Devices
Connect the AC adapter that came with the port replicator.
Connect a PS/2-style mouse.
Connect a PS/2-style keyboard or numeric keypad.
A d d i n g P a r t s |
5 9
