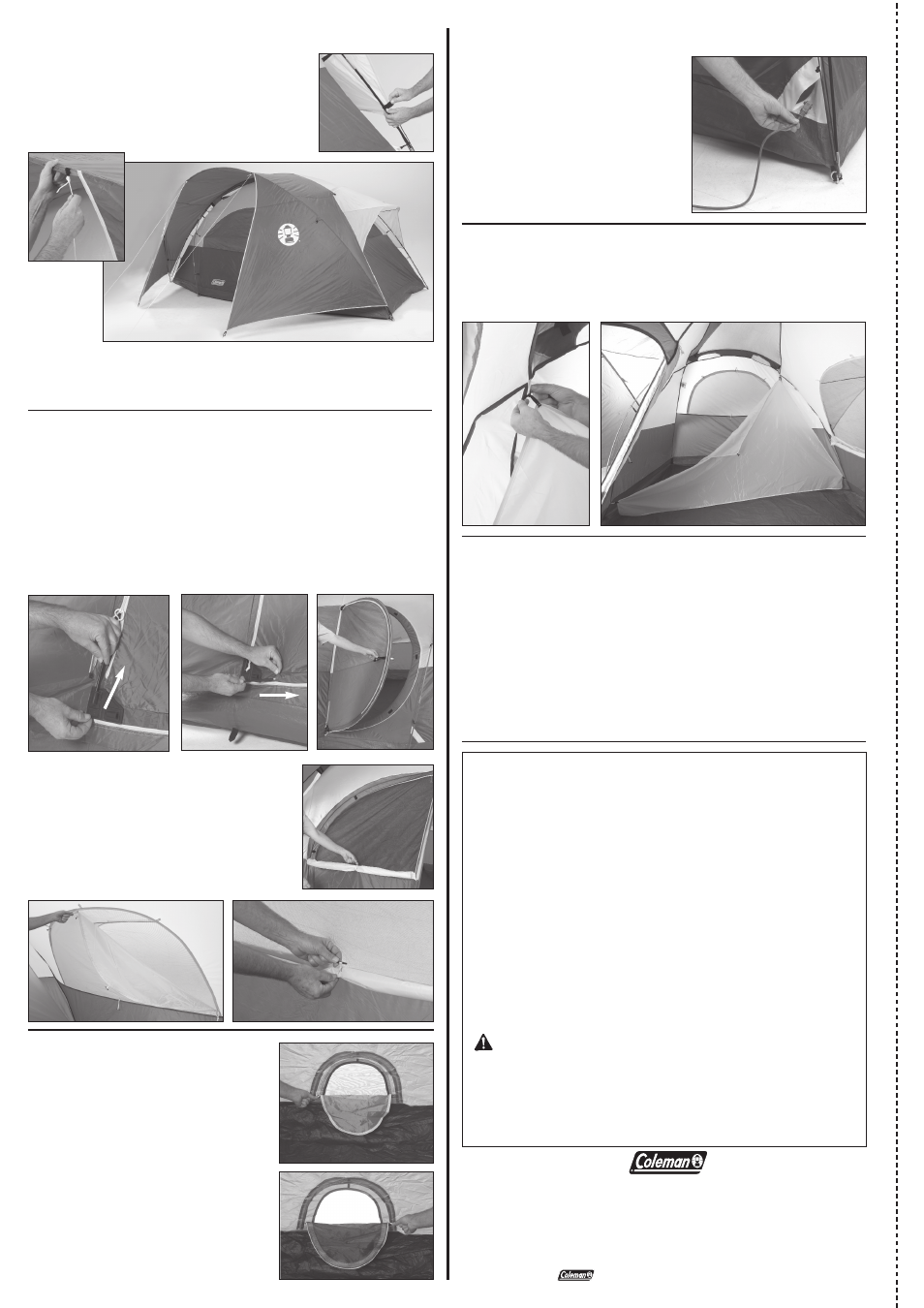

Attaching Dividers
1. Divider panels can be installed on left or right sides of the
tent by inserting toggles through the fabric loops.
(Fig. 26 & 27)
4. For better ventilation, unnzip flap on
door, roll down, and insert toggle into
fabric loop to secure. (Fig. 20)
5. To open back and side window vents
for more ventilation, unzip, then roll up
and insert toggles through fabric loops.
(Fig. 21 & 22)
© 2007 The Coleman Company, Inc.
Coleman ® and are registered trademarks of The Coleman Company, Inc.
Things You Should Know:
• Under certain conditions (cold weather, high humidity, etc.) condensa-
tion will form on the inside of your tent. Condensation is caused by
water vapor from your breath, perspiration, or any wet clothing inside
the tent. It is NOT LEAKAGE through the tent fabric. It can be minimized
by removing wet clothing from your tent and by providing good ventila-
tion through the tent.
• Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles
inside your tent. Use a separate storage bag.
• Stakes should be removed by pulling on the stake itself. Never pull on
the tent to remove stake.
• TENT POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER
DURING STORAGE.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure
to ultraviolet rays from the sun can seriously damage material and/or
cause it to become discolored.
WARNING: Keep all flame and heat sources away
from this tent fabric.
This tent meets the flammability requirements of CPAI-84. The
fabric will burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
To Attach Rainfly
continued
Fig. 22 Fig. 21
9. Secure rainfly with velcro hook & loop
located on underside of fly. (Fig 14)
10. Tie guylines onto web straps located on
the rainfly, stretch until taut, and secure
with stakes. (Fig 15 & 16)
Fig. 14
Fig. 16
Fig. 15
11. Extend front flaps on rainfly and secure with stakes.
Note: Flaps may be rolled back and and secured by inserting
toggles through fabric loops.
Door and Window Vents
1. Assemble Vertical Hinge Door pole (shorter black pole with
plastic cap tips); insert into zippered vertical pocket on
hinged side of door. (Fig. 17)
2. Assemble Hinge Door pole (longer black pole with plastic
cap tips) insert into zippered pocket at bottom of door.
(Fig. 18)
3. Insert ends of both door poles into sockets at top and
bottom of door on hinged side. (Fig. 19)
Fig. 18 Fig. 19 Fig. 17
To Store
1. All metal poles and stakes must to be placed in the storage
bag to prevent damage to the fabric items placed in the
carry case.
2. Make sure tent is clean and dry before placing in carry case.
3. Remove rainfly, spread out on floor of tent, then unzip
door & vents before taking tent down for storage.
4. Neatly fold tent to width of pole storage bag, place on tent,
roll tightly, and place in carry case.
5. Store in a clean, dry area.
Cooler Access
The smaller zippered opening at the
rear of the tent is designed for added
ventilation and easy access to your
beverage cooler.
1. To use as a vent, unzip flap to
expose screen. (Fig.23)
2. To use as a cooler access, unzip
other flap to make an avenue to
bring beverages into the tent.
(Fig.24)
Fig. 23
Fig. 24
Fig. 27
Fig. 20
Fig. 26
STITCH
LINE
Electrical Cord Access
1. Unzip access panel in the
lower right corner of tent
and bring in electrical cord.
Use only UL approved
cords that are rated for
outdoor usage. (Fig. 25)
Fig. 25
