Coleman Aquila 9145-171CD User Manual

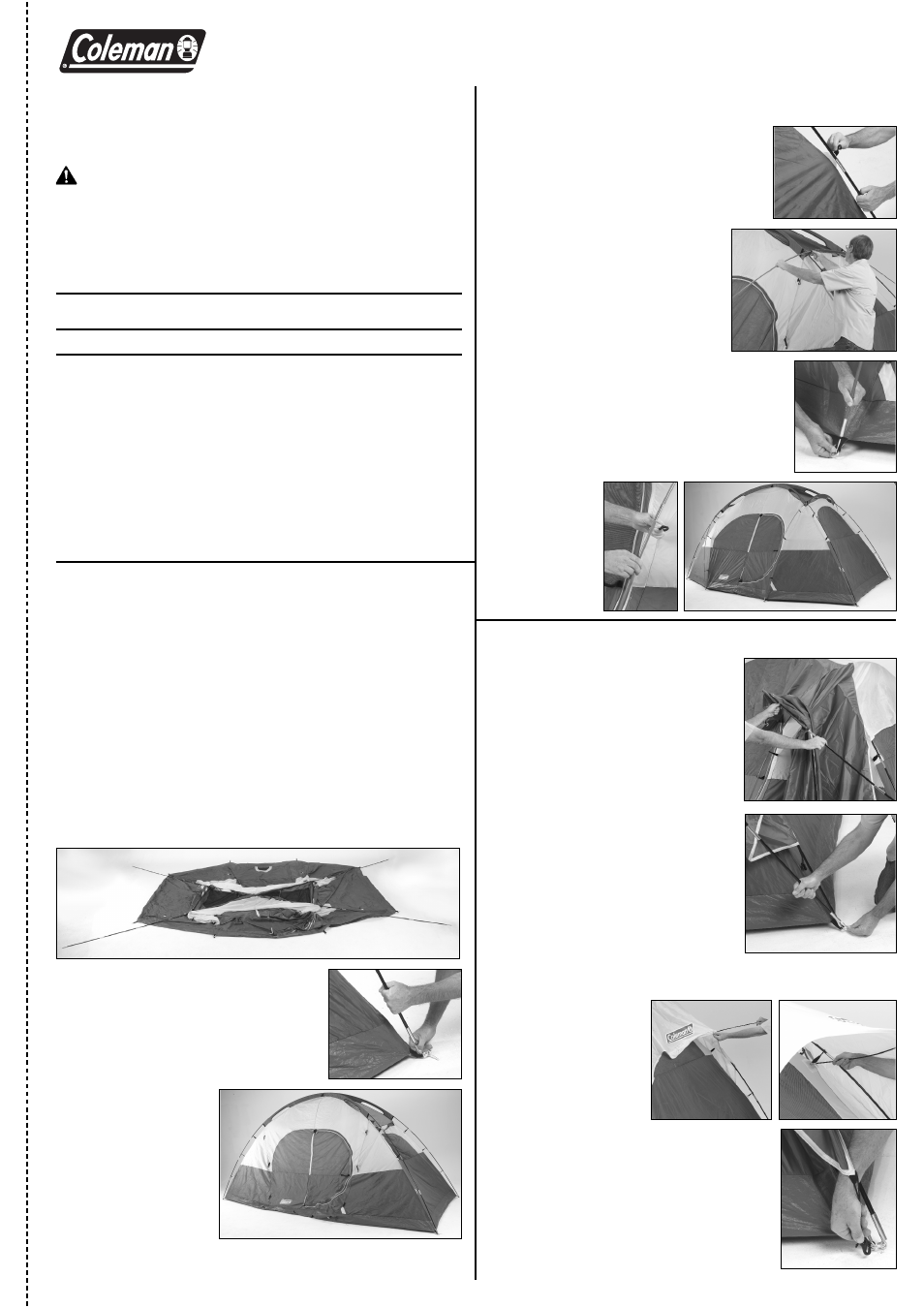

Aquila, Before you begin, Parts and components

background image

AQUILA

TM

17’ X 10’ 7”

MODEL 9145-171CD

STITCH LINE

Fig. 1

Fig. 2

To Set Up Tent

NOTE: Before setting up your tent, separate the poles to be used
for the Hinge Door from the other poles and set aside. The
Vertical Hinge Door Pole is the short, black pole with plastic cap
tips and the Hinge Door Pole is the longer, black pole with plastic
cap tips.
These two poles will be used later after the tent and rainfly have
been assembled.
1. Unfold tent and spread out on a clean, level surface with the

door facing the desired direction. Unzip door.

2. Assemble main tent poles by interlocking both longer, black

shock-corded, poles.

3. Insert black poles through sleeves in top of tent forming an

“X” as shown. (Fig. 1)

4. Insert one end of each black pole

into pins in rear corners of tent.
(Fig. 2)

5. Go to opposite end

of each pole and
gradually apply
pressure to the
pole forming an arch.
Insert the pin into the
pole end at the tent
corners. (Fig. 3)

6. Stretch corners of tent until floor is taut then hammer stakes

through loops to secure.

Fig. 3

7. Attach frame clips along edges of tent

to frame poles (Fig. 4)

8. Assemble two side poles by interlocking

both, gray shock-corded, poles.

Fig. 4

To Attach Rainfly

1. Assemble interlocking shock-corded

front awning pole.

2. Drape rainfly over tent. Make sure

colored-fabric end is centered over
the door with the web pockets
facing down.

3. Slide front awning pole through

sleeve at front of the flap. (Fig. 9)

4. Insert one end of front awning pole

into remaining pin in front corner
of tent. (Fig. 10)

5. Go to opposite end of the pole

and gradually apply pressure to
the pole forming an arch. Insert
pin into the pole end at the
opposite side of tent.

6. Assemble three black rainfly poles (2 short poles and 1

longer pole) with metal tips. The 2 shorter poles go into
sleeves over side
windows and the
longer pole goes
in the sleeve over
the back window.
(Fig. 11)

7. Insert tip of rainfly

pole into grommet on side of window
and gently arch until you can insert the
opposite end into the other grommet
(Fig. 12). Repeat for other rainfly poles.

8. Hook clip on elastic cords at corners of

rainfly to the rings in the corners of the
tent. (Fig. 13)

(continued on other side)

9. Insert gray poles through sleeves

above windows on both sides of
tent. (Fig. 5)

Fig. 5

10. Insert one end of each gray pole into pins

located on both sides of front door. (Fig. 6)

11. Go to opposite end of each pole and

gradually apply pressure to the pole
forming an arch. Insert the pin into the
pole end at the rear of the tent.

12. Attach

remaining
frame clips
along tent
to gray side
poles.
(Fig. 7 & 8)

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Before you begin

Read all instructions before set up.
• Select a level campsite clear of rocks, branches, and other hard

or sharp objects, to install your tent.

WARNING: Keep clear of overhead power lines.

• Do not set up your tent under trees.
• For best results in windy conditions, position end of tent into

the wind.

• Enlist the help of at least one other person to assist you when

it is time to assemble the tent.

Parts and Components

Description

Part Number

Main Poles, Black (2)

9145-1001

Side Poles, Gray (2)

9145-1011

Rainfly Poles, Black, short with metal tips (2)

9145-1021

Back Rainfly Pole, Black, long with metal tips (1)

9145-1031

Front Awning Pole, Black (1)

9145-1041

Rainfly

9145-1051

Vertical Hinge Door Pole, Black, short with

plastic cap tips (1)

9145-1061

Hinge Door Pole, Black, long with

plastic cap tips (1)

9145-1071
