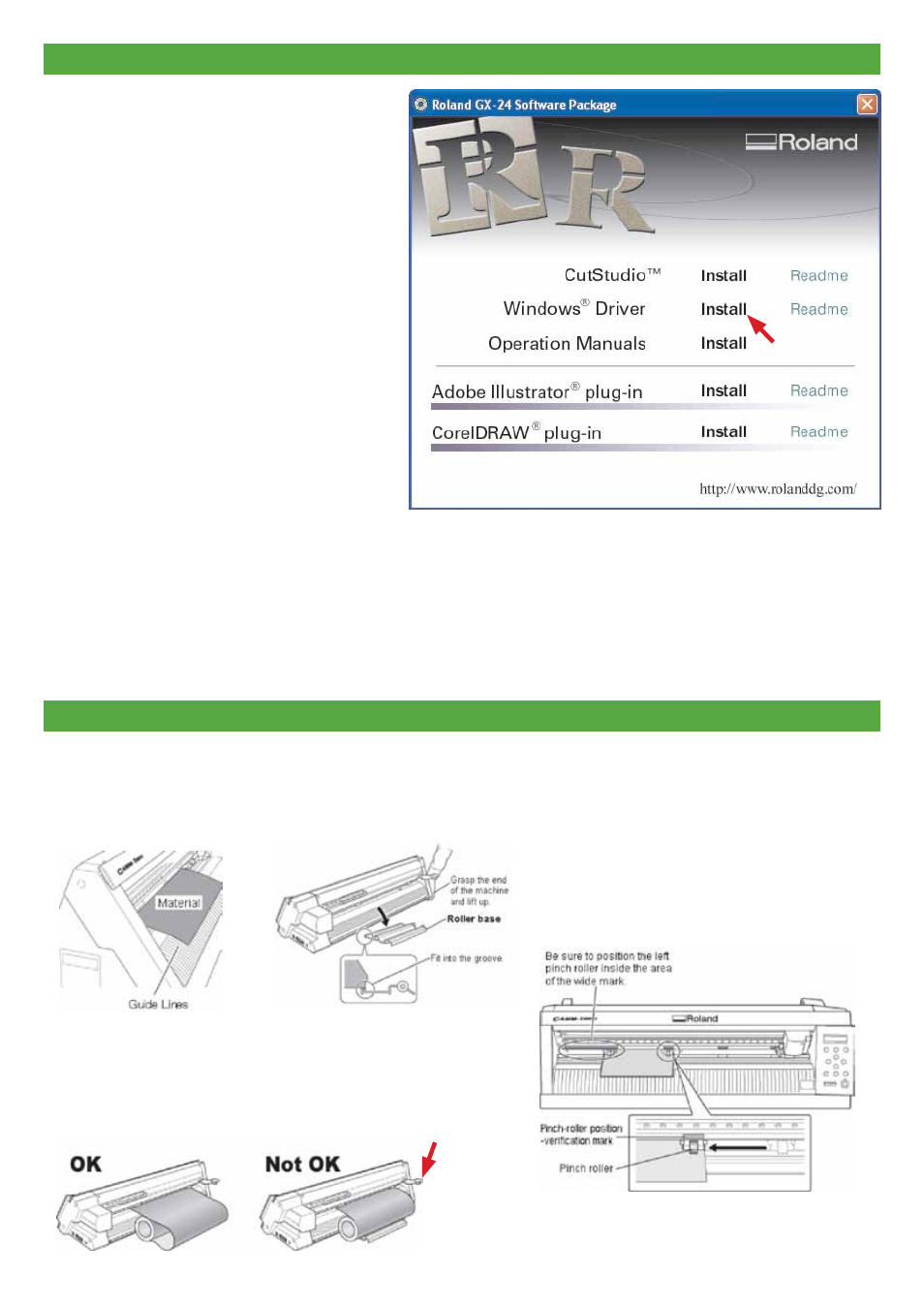

Insert the Roland GX-24 software package cD into
the cD-RoM drive. the cD Will Auto Run and you
will be presented with the screen on the right.
click Install next to the Windows driver option.
Important: Do not connect the GX-24 to the
computer until you are instructed to make the
connection. Failure to follow the correct procedure
may make installation impossible. Installation of the
driver requires full access rights for the computer.
Log on to Windows with a computer administrator
account.
1. connect the GX-24 to the computer (when
instructed to do so by the driver installation
wizard) using a UsB cable, then switch on the
power to the GX-24. the [Found new Hardware
Wizard] appears.
2. When the found new hardware wizard appears,
select [no, not this time], then click [next]. If the
screen does not appear, refer to step 3.
3. choose [Install the software automatically (Recommended)], then click [next]. Installation of the driver starts.
4. When the driver compatibility window appears, click [continue Anyway].
5. click [Finish].
6. Browse to the printers and faxes folder, right click on the Roland GX-24 and choose properties. click on ‘printing
preferences’ and click on the ‘options’ tab. Un-tick the ‘High Resolution’ check box then click ok.
the Roland GX-24 driver installation is now complete.
1. Make sure the loading lever is lowered.
2. Pass the material through the machine, and pull out the
material until its leading edge is positioned over the
guide lines.
4. Move the pinch rollers so that they are
positioned at the edges of the material and also
inside the areas of the pinch-roller
position-verification marks.
note: Be careful to position the pinch rollers
so that they are not too close to the edges of
the material and do not extend beyond the
edges of the material.
3. Pull out a length of material that is slightly longer than
the amount needed for cutting, leaving some slack.
If you don’t, the material will not feed correctly.
Installing the Roland GX-24
3
Loading garment film
Loading lever
click here
