12
The Xpres Cut
®
Plus process continued

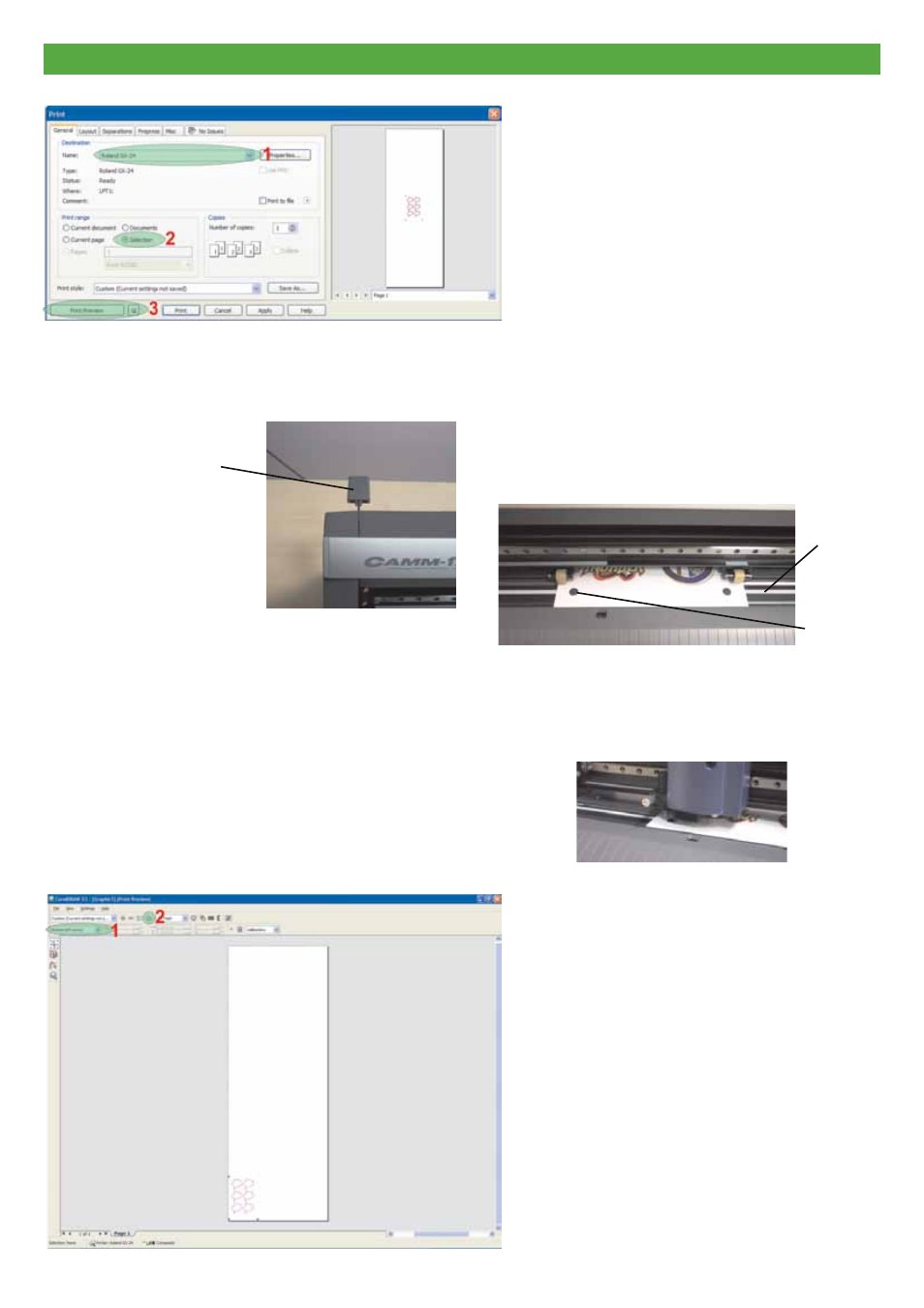

• When the cutter has finished reading all three cropmarks the head will rest
on the bottom left corner of the material. Do not press oRIGIn
• ensure the material clamping
lever is in the down position
• Load material from the rear of the machine making sure
the two bottom cropmarks on the paper are lined up
with the grey cutting strip. Pull the lever up to lock the
material in position.
Refer to page 7 for button positions, and media sizes (these will need to be set before you send the job to the cutter).
cropmarks
grey
cutting
strip
1. turn the cutter on, you will see seLect sHeet *RoLL
on the display, load media then press enteR. tip: see
page 4 for blade force settings.
2. Press the MenU button on the display twice
3. Press the DoWn arrow key twice
4. Press the RIGHt arrow key twice
5. Press the UP arrow key until MAnUAL stARt appears
on the display
6. Press the enteR key.
Step 10 - Loading the Roland GX-24
Step 11
select Bottom Left corner from the drop
down list (
1 ), then click the print icon at
the top ( 2 ).
the cutter will now start to contour
cut your logos.
When the cutter has stopped cutting
press Menu then enter on the cutter
to reset.
Step 9
select the Roland GX-24 from the drop
down list (
1 ). now click on selection from
the ‘Print Range’ area ( 2 ). now click the
Print Preview button ( 3 ).
