Workrite Ergonomics, Inc 9
SwingArm–Dual™ Installation Instructions

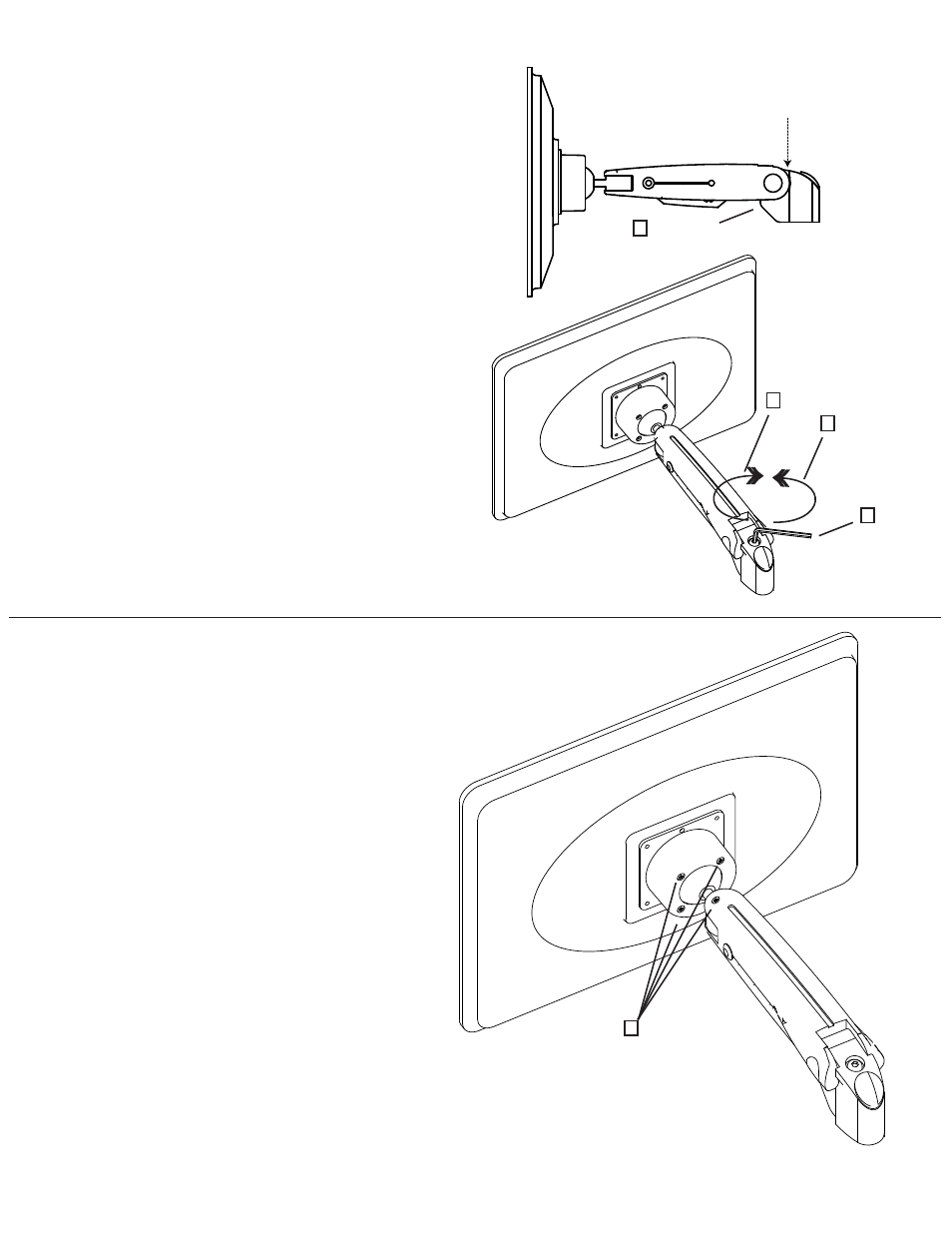

Step 4: Vertical Movement Adjustment
Set the monitor arm at a 90° angle and lo- A:
cate the adjustment screw on the top of the
arm joint.
If the arm tends to rise, turn the adjustment B:
screw clockwise using the M5 hex wrench,
decreasing tension until the arm reaches a
stable, balanced adjustment.
If the arm tends to drop, turn the adjust- C:
ment screw counterclockwise using the M5
hex wrench, increasing tension until the arm
reaches a stable, balanced adjustment. With
too much tension on the arm, the arm will
tend to rise.
To prevent damage to the arm, remove the D:
hex wrench after adjustment.
Your SwingArm—Dual is now installed and it is
time for the final adjustments. If your monitor is
too light or too heavy for the factory-set tension,
the arm will raise or lower too easily (or even on
its own). If this is the case, you need to adjust the
vertical movement.
Step 5: Ball-joint Adjustment for Tilt
Action
If the monitor is too tight or too loose A:
on the ball-joint, adjust the tension by
turning the four screws closest to the
ball one quarter turn each*, clock-
wise to tighten or counterclockwise to
loosen.
Repeat as necessary. B:
* It is important to turn them in very
small increments and turn each of the
four screws the same amount until
the desired tension is achieved.
C
A
D
B
Adjustment screw
90°
A
