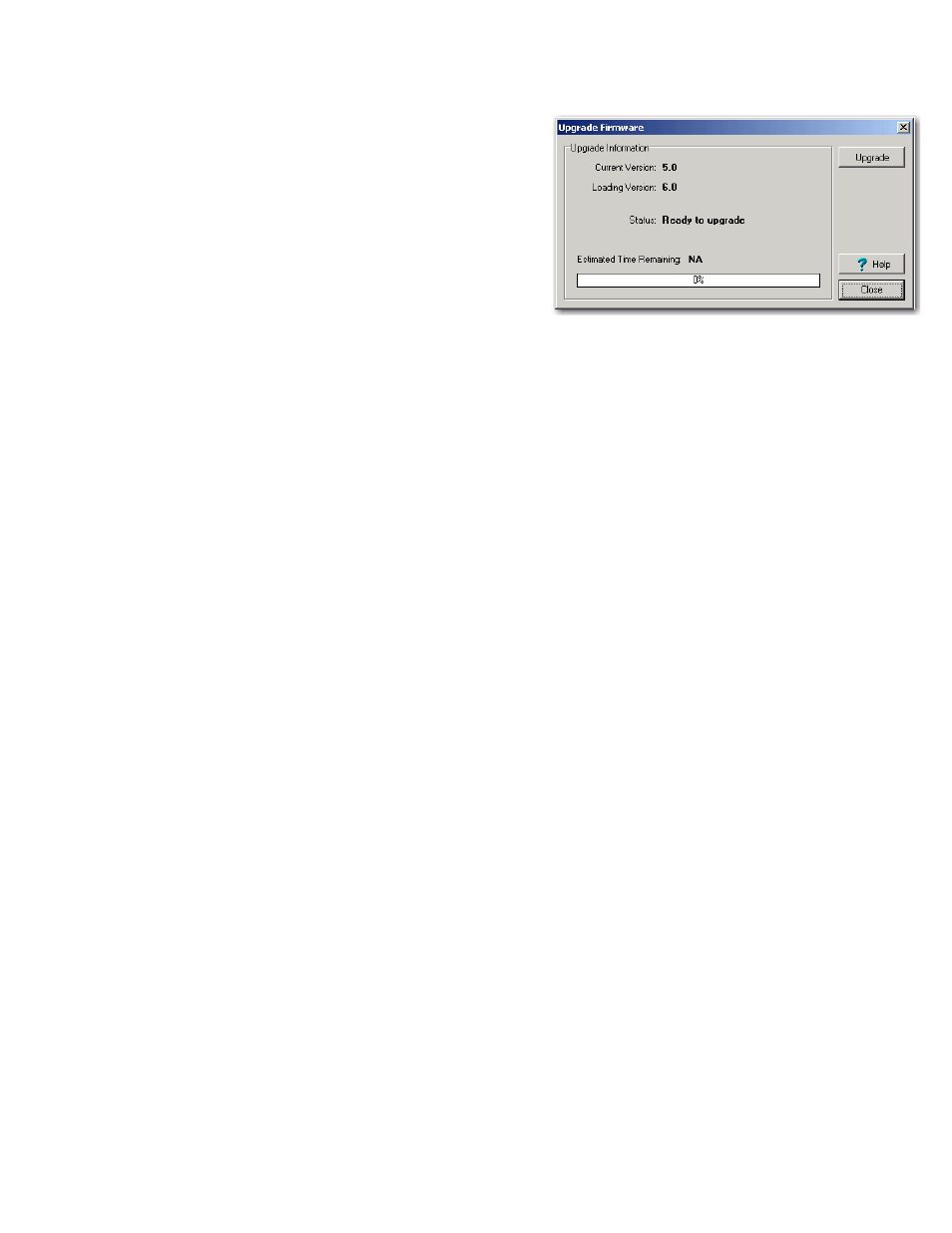

6. Select Unit>Upgrade Firmware.
7. Click Upgrade, if enabled. If Current Version is the same as Loading
Version, click Close. This returns you to the main screen.
8. Power on the Spot Vital Signs LXi and it displays internal post errors. To continue select Accept. Spot Vital Signs LXi displays the Set Defaults
screen. Reset any changed defaults and click Exit.
9. Power off and then power on the Spot Vital Signs LXi in the Internal Configuration Mode. To enter the Internal Configuration Mode, press and
hold the Spot Vital Signs LXi Select and Power buttons for 5 seconds. The Spot Vital Signs LXi enters the Internal Configuration mode and the
Configuration Menu displays. Press Select on Version Numbers to verify the version information is correct.
10. Turn the Spot Vital Signs LXi off and click Close.
11. Go to the Spot LXi Firmware Upgrade Utility and click the printer icon. Print two copies of the report.
12. Return one signed document to the customer and mail the other signed document to the address listed above.
Figure 1. Firmware Upgrade Utility Report Sample
Note The progress bar indicates the upgrade is occurring and the remaining
time to complete. When complete, the Status changes to Success! The
device powers off upon completion and follow any computer prompts.
If the battery charger is left unplugged, a pop-up displays “Warning,
Charger has to be plugged in to continue.” Verify the charger is plugged
in and functional. If the charger is not plugged in or is not functional, a
new popup displays “Charger is not plugged in, cannot continue.” Click
OK, and abort the upgrade.
• ---------------------------------------------------------------------------
• UPGRADE FIRMWARE
• Serial Number: 20050800001 / Model Number: 45NT0
• ---------------------------------------------------------------------------
• ---------------------------------------------------------------------------
• ---------------------------------------------------------------------------
• Calibration Settings Prior To Firmware Upgrade
• ---------------------------------------------------------------------------
• Serial Number: 20050800001
• Model Number: 45NT0
• Software Versions:
• Unit : 5.7
• BP Module: 1.02
• Temperature Module: 1.2
• SpO2 Module: 1.9.0.1
• Pressure:
• Zero: -96
• Gain: 18871
• Cal Signature: ATE2
• Cal Date/Time: 11/22/2005 07:57:24 PM
• Voltage:
• Cal Factor: 16608
• Cal Signature: ATE2
• Cal Date/Time: 11/22/2005 07:56:43 PM
• ---------------------------------------------------------------------------
• ---------------------------------------------------------------------------
• Filename: C:\SOS\Spot LXi Repair Tools\Applications\ultra_prod_5_7.mot
• Highest address loaded 0xA3297
• Erasing Sector 4
• Erasing Sector 5
• Erasing Sector 6
• Erasing Sector 7
• Erasing Sector 8
• Erasing Sector 9
• Erasing Sector 10
• Erasing Sector 11
• Erasing Sector 12
• Erasing Sector 13
• PROM CRCs sent: 4278684E D738B593
• Received CRCs 4278684E 4278684E D738B593 D738B593
• CRC checksums good!
• ---------------------------------------------------------------------------
• ---------------------------------------------------------------------------
• Calibration Settings After Firmware Upgrade
• ---------------------------------------------------------------------------
• Serial Number: 20050800001
• Model Number: 45NT0
• Software Versions:
• Unit : 5.7
• BP Module: 1.02
• Temperature Module: 1.2
• SpO2 Module: 1.9.0.1
• Pressure:
• Zero: -96
• Gain: 18871
• Cal Signature: ATE2
• Cal Date/Time: 11/22/2005 07:57:24 PM
• Voltage:
• Cal Factor: 16608
• Cal Signature: ATE2
• Cal Date/Time: 11/22/2005 07:56:43 PM
• The above checks are designed to:
• 1.) Verify that the device stored data was not lost.
• 2.) Verify Firmware installation was completed and accurate during the upgrade process.
• The Device should have Calibration and Operational performance verified prior to first use.
• ---------------------------------------------------------------------------
• ---------------------------------------------------------------------------
• Signature Block
• Welch Allyn Representative __________________ __________________ ______
• Printed Name Signature Date
• Customer Representative __________________ __________________ ______
• Printed Name Signature Date
• ---------------------------------------------------------------------------
• ---------------------------------------------------------------------------
6.0
C:\Program Files\Welch Allyn\Spot LXi Firmware Upgrade\ultra_prod_6_0.mot
