Welch Allyn LVag Illuminator Wall Hangar Direction For Use (DFU) - Installation Guide User Manual
Kleenspec
Table of contents
Document Outline

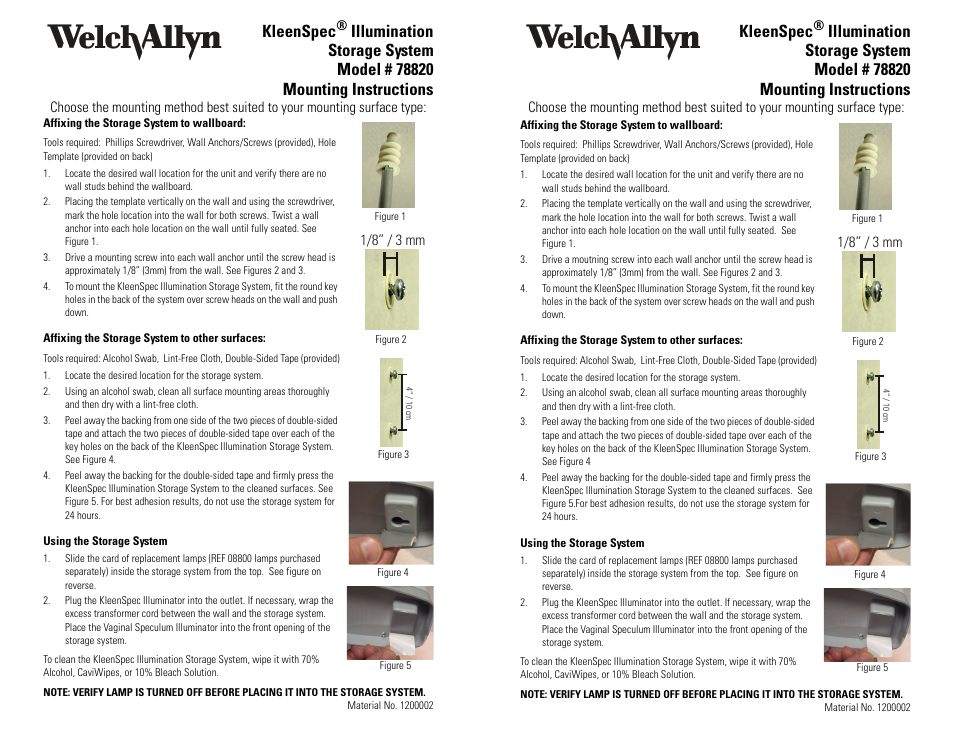

- Affixing the Storage System to wallboard:
- 1. Locate the desired wall location for the unit and verify there are no wall studs behind the wallboard.
- 2. Placing the template vertically on the wall and using the screwdriver, mark the hole location into the wall for both screws. Twist a wall anchor into each hole location on the wall until fully seated. See Figure 1.
- 3. Drive a mounting screw into each wall anchor until the screw head is approximately 1/8” (3mm) from the wall. See Figures 2 and 3.
- 4. To mount the KleenSpec Illumination Storage System, fit the round key holes in the back of the system over screw heads on the wall and push down.
- Affixing the Storage System to other surfaces:
- 1. Locate the desired location for the storage system.
- 2. Using an alcohol swab, clean all surface mounting areas thoroughly and then dry with a lint-free cloth.
- 3. Peel away the backing from one side of the two pieces of double-sided tape and attach the two pieces of double-sided tape over each of the key holes on the back of the KleenSpec Illumination Storage System. See Figure 4.
- 4. Peel away the backing for the double-sided tape and firmly press the KleenSpec Illumination Storage System to the cleaned surfaces. See Figure 5. For best adhesion results, do not use the storage system for 24 hours.
- Using the Storage System
- 1. Slide the card of replacement lamps (REF 08800 lamps purchased separately) inside the storage system from the top. See figure on reverse.
- 2. Plug the KleenSpec Illuminator into the outlet. If necessary, wrap the excess transformer cord between the wall and the storage system. Place the Vaginal Speculum Illuminator into the front opening of the storage system.
- Material No. 1200002
- Affixing the Storage System to wallboard:
- 1. Locate the desired wall location for the unit and verify there are no wall studs behind the wallboard.
- 2. Placing the template vertically on the wall and using the screwdriver, mark the hole location into the wall for both screws. Twist a wall anchor into each hole location on the wall until fully seated. See Figure 1.
- 3. Drive a moutning screw into each wall anchor until the screw head is approximately 1/8” (3mm) from the wall. See Figures 2 and 3.
- 4. To mount the KleenSpec Illumination Storage System, fit the round key holes in the back of the system over screw heads on the wall and push down.
- Affixing the Storage System to other surfaces:
- 1. Locate the desired location for the storage system.
- 2. Using an alcohol swab, clean all surface mounting areas thoroughly and then dry with a lint-free cloth.
- 3. Peel away the backing from one side of the two pieces of double-sided tape and attach the two pieces of double-sided tape over each of the key holes on the back of the KleenSpec Illumination Storage System. See Figure 4
- 4. Peel away the backing for the double-sided tape and firmly press the KleenSpec Illumination Storage System to the cleaned surfaces. See Figure 5.For best adhesion results, do not use the storage system for 24 hours.
- Using the Storage System
- 1. Slide the card of replacement lamps (REF 08800 lamps purchased separately) inside the storage system from the top. See figure on reverse.
- 2. Plug the KleenSpec Illuminator into the outlet. If necessary, wrap the excess transformer cord between the wall and the storage system. Place the Vaginal Speculum Illuminator into the front opening of the storage system.
- Affixing the Storage System to wallboard:
- Material No. 1200002
- 4341 State Street Road ˘ Skaneateles Falls, NY 13153 USA
- 800-535-6663 ˘ 315-685-4560 ˘ 315-685-3361
- 4341 State Street Road ˘ Skaneateles Falls, NY 13153 USA
- 800-535-6663 ˘ 315-685-4560 ˘ 315-685-3361
