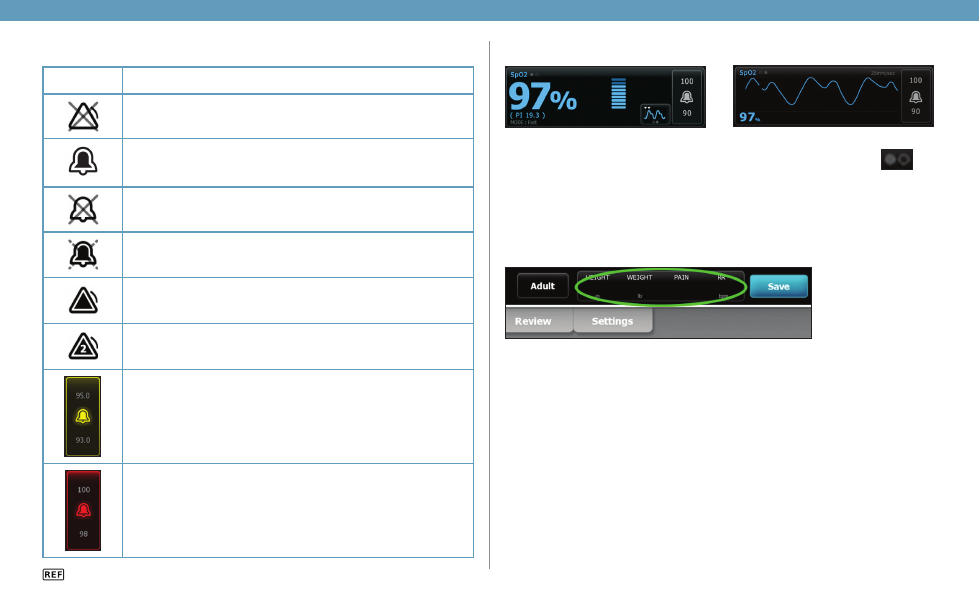

Change view of vital signs measurements

Parameter frames that support multiple views of patient data (such as numeric and
waveform, numeric and trend, SYS/DIA and MAP) include a view indicator

next to the name of the parameter frame.

Touch the left side of the parameter frame to toggle between views.

Enter manual parameters

Touch the Manual parameters frame.

1. Touch the up/down arrow keys or the keypad to adjust the parameter

measurements.

2. Touch

OK.

Note Entries will not be saved unless you touch OK.

© 2013, Welch Allyn, Inc. All rights reserved. Mat. No. 719941, 80018385 Ver. A

Alarm indicators and controls

Icon

Description
Alarm off

No visual or audio notifications are enabled.

Alarm on

Visual and audio notifications are enabled.

Alarm audio off

Only visual notifications are enabled.

Alarm audio paused

Countdown timer is active.

Alarm active

Touch to pause or silence.

Multiple alarms active

Touch to pause or silence.

Medium priority alarm

Touch to adjust alarm limits or turn off alarm.

High priority alarm

Touch to adjust alarm limits or turn off alarm.

104703
