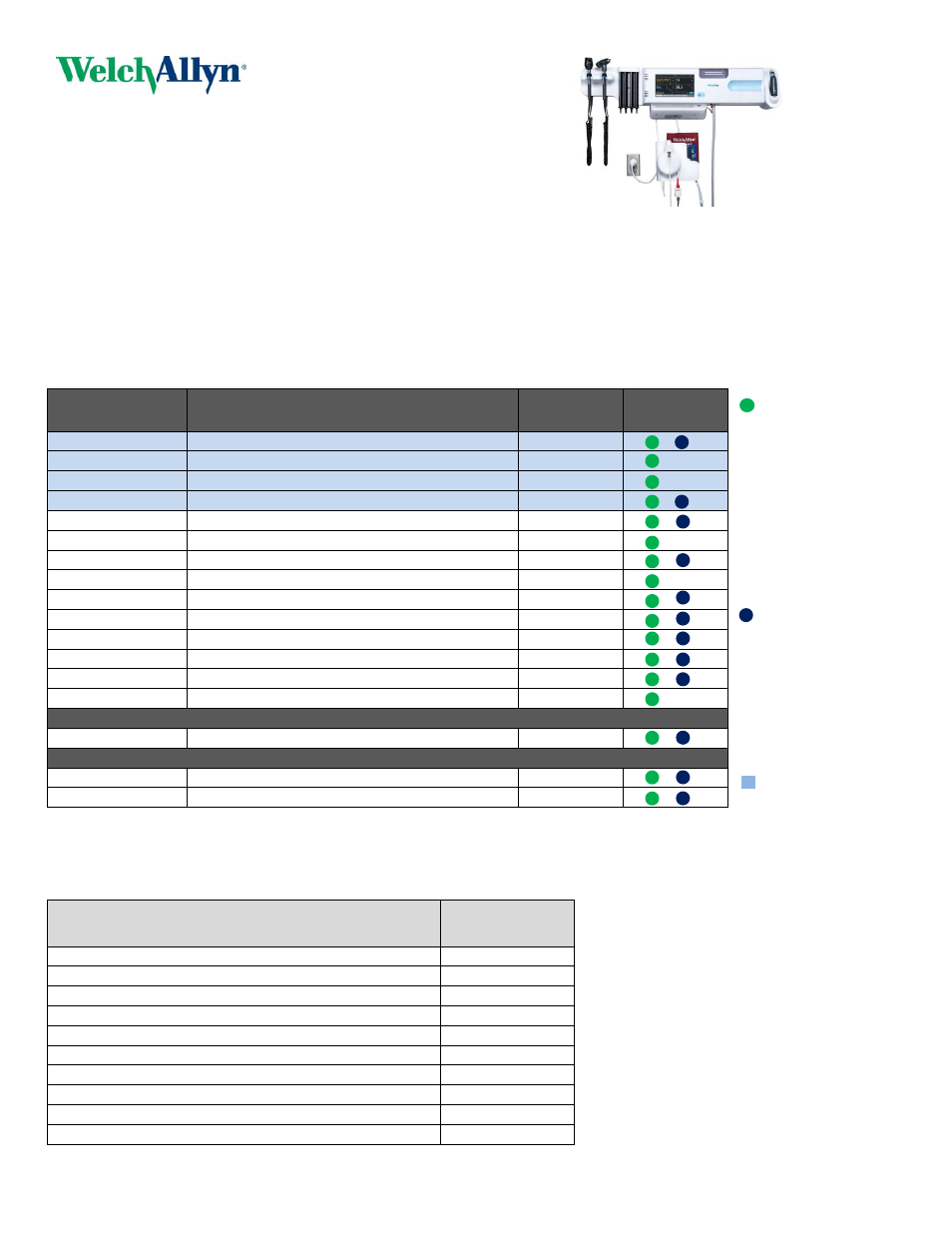

Service and maintenance toolset, Connex ® integrated wall system

Service and Maintenance Toolset
Connex ® Integrated Wall System
The following is the listing of tools to perform service and maintenance, as well as basic functional verification checks,
full functional verification checks and calibration on the Welch Allyn Connex Integrated Wall System. Please refer to the
device service manual for detailed descriptions of what these activities provide. Note: These tools must also be readily
available to complete Welch Allyn Technical Service Training for this device.
Required Service Tools and Test Equipment*
Material
Number
Description
Quantity
Required
Usage
06138-000
CAL-KEY, ASSY, M690/692
1
407691
VSM6000 SERVICE TEST BOX
1
407022
ASSY, MMF NURSE CALL CABLE - SERVICE
1
103521
Welch Allyn Service Tool CD
1
407672
BP TEST VOLUME REPAIR FIXTURE 113670
1
713549
USB 2.0 Dual A to Single Mini B Cable
1
01802-110
TESTER, CALIBRATION, 9600 PLUS
3
541-USB001
OAE USB 6' Cable
1
4500-925
Connectivity Accessory Kit - USB Cable
1
4500-30
Blood Pressure Hose (5')
1
6000-30
1-Tube Blood pressure hose (5 ft)
1
620216
Fitting “Y” 1/8 x 1/8 x 1/8
1
200-2000IN
PRESSURE METER, NETECH
1
660-0138-00
CABLE,PATCH 5' RJ45,T568B
1
Only Required for Devices Equipped With Masimo SpO2
103507
TESTER, SPO2, MX RAINBOW
1
Only Required For Devices Equipped with Nellcor SpO2
DOC-10
CABLE, SP02 EXTENSION, NELCOR
1
SRC-MAX
NELLCOR PORTABLE OXIMETRY TESTER (MP506)
1
Required Miscellaneous Off-the-Shelf Tools
The following tools are not available from Welch Allyn, but will be used in service and maintenance activities.
Description
Quantity
Required
COMPUTER RUNNING WINDOWS XP, SP3 or Windows 7
1
SPLINTER TWEEZER 3.5 INCH
1
NEEDLE NOSE PLIERS 6"
1
NETGEAR Router, A/B/G or Equivalent
1
PHILLIPS #2
1
PHILLIPS #1
1
10MM HEX BIT
1
SCISSORS
1
TIE WRAP CUTTER
1
TORX DRIVER
1
Indicates items only
available from Welch
Allyn, or a Welch Allyn
distributor.
Indicates equipment
required for full functional
verification checks and
calibration. The Welch Allyn
Service Tool software and an
active Gold License is also
required to perform these
checks. The Gold License is
obtained upon successful
completion of Welch Allyn
Technical Service Training.
Indicates equipment used
for basic functional
verification checks. The
Welch Allyn Service Tool
software (Silver Level) can
be used to perform the
NIBP checks and SWF
upgrades/updates as well
as installing Licensable
features on your device.**
