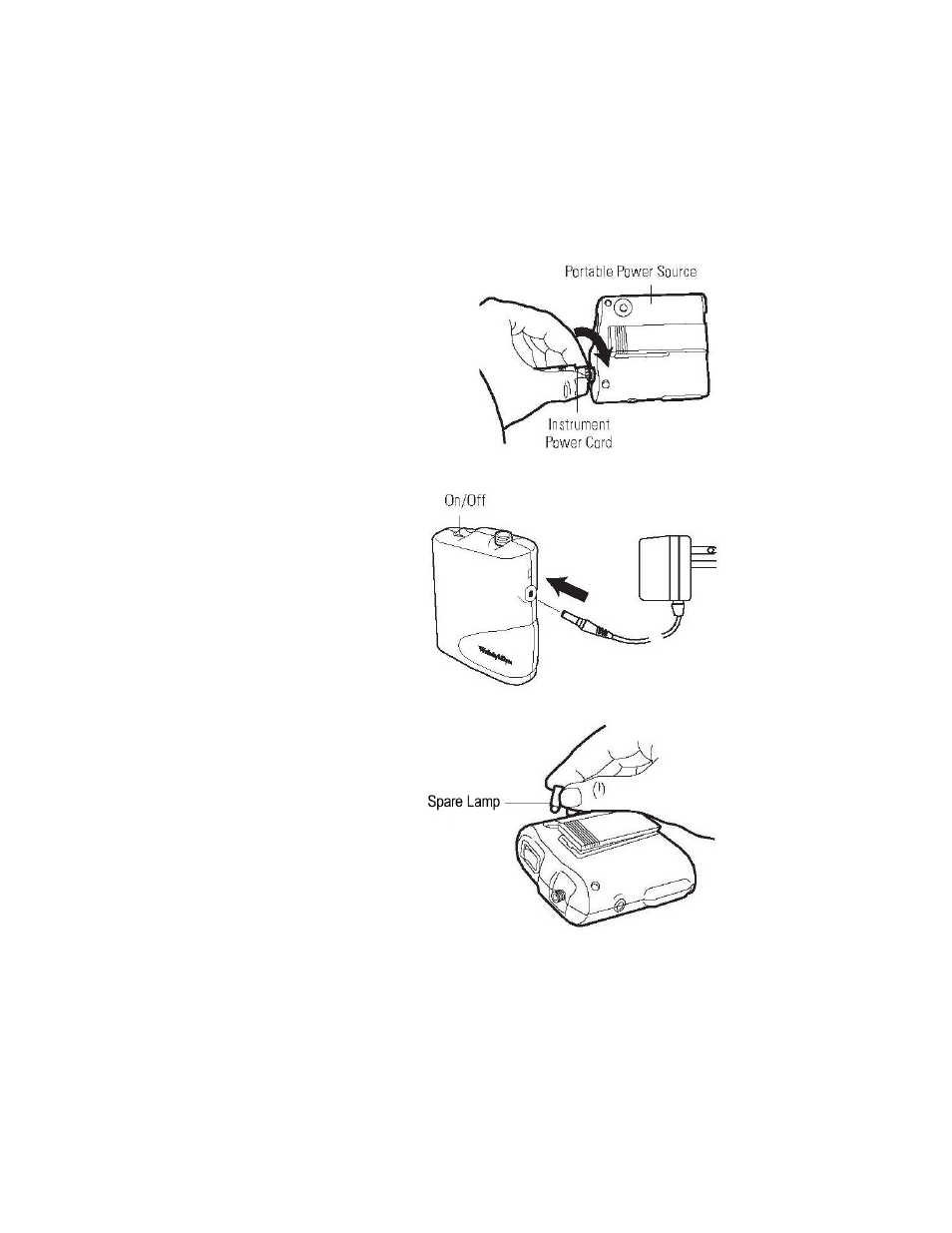

Connecting Instrument to Portable Power Source:

• Plug instrument power cord into the power

cord connector port on top of the power
source.

• Push in until firmly in place.

• Gently screw the external

connector sleeve clockwise to secure
(optional).

Recharging the Portable Power Source:

• Turn portable power source off.

• Disconnect instrument from power

source.

• Plug charging transformer into

portable power source.

• Plug charging transformer into wall

socket. LED light indicates unit is
charging.

• Disconnect charging transformer

from power source when fully
charged, after 14-16 hours.

Accessing Spare Lamp

• Lift the spare lamp out of its

receptacle and use.
