4 S o larc Light Source
To Replace the Lamp
1. Turn the Solarc Light Source off ( ) and unplug the power
cord from both the wall outlet and the rear of the unit.
2. Remove the five screws from the Solarc Light Source using a
#2 philips head screwdriver. Pivot the cover to expose the
lamp.

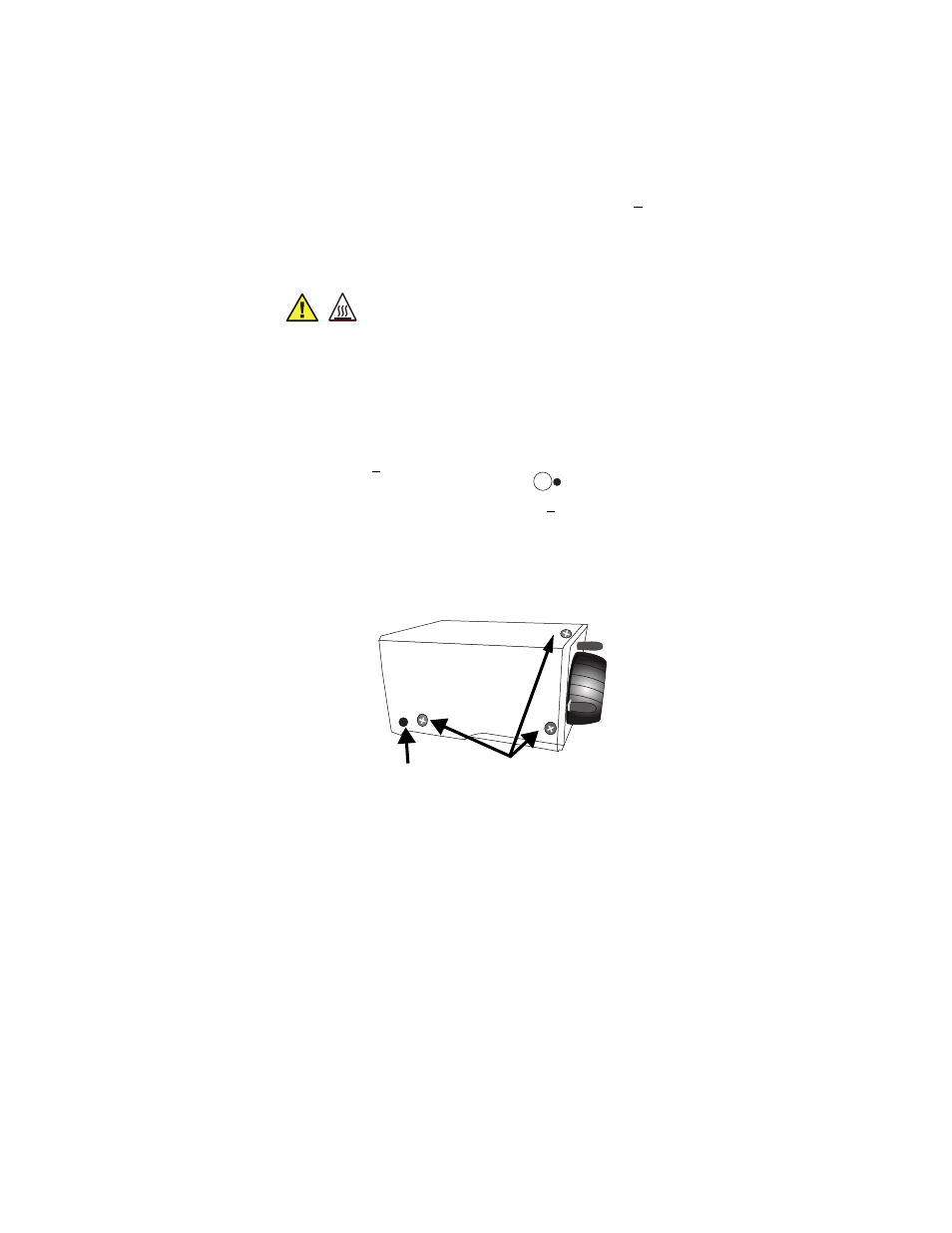

Figure 2. Removing the Top Cover
3. Flip up the retaining latch. Pull the lamp base back and up
against the retaining spring to remove the lamp.
4. Remove the lamp, with harness attached, and then
disconnect the lamp connector.
Caution LAMP MAY BE HOT. Allow lamp to cool before
handling.
Recommended lamp cooling time is a minimum
of 10 minutes.
Caution Do not operate device without the cover in
place. Operate in the horizontal position only.
Removable Screws (two on opposite side) Pivot
