Viewing electrode placement

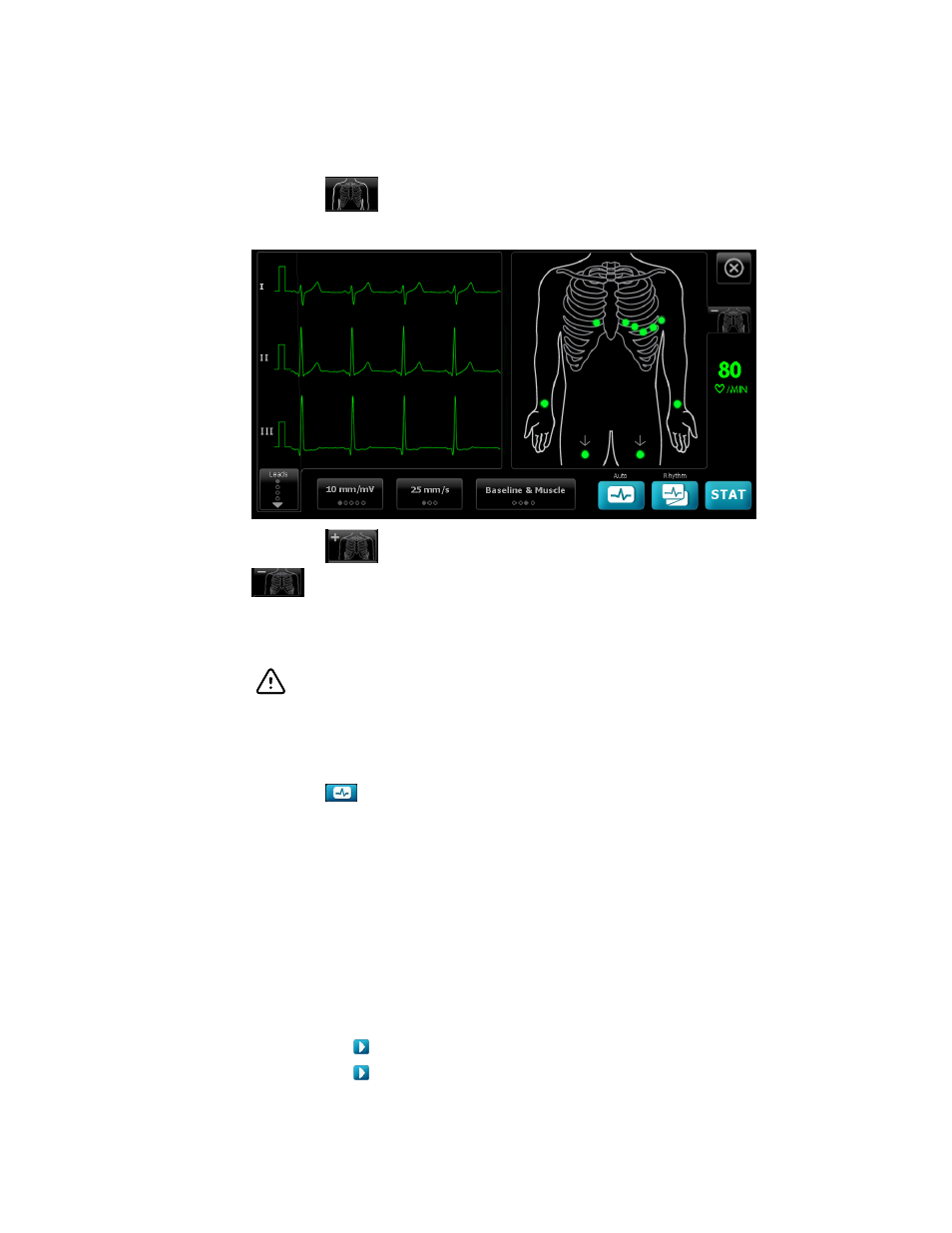

1. Touch the (ECG preview) button.
The ECG preview screen appears.
2. Touch the (torso) button to enlarge the lead placement image or touch
to close it.
Performing an Auto ECG test
CAUTION Patient data is not saved until the ECG test is completed.
Note The ECG configuration settings can be changed in the Settings tab. The
following settings may appear differently if the default settings have been
modified.
1. Touch the (Auto ECG) button. The Summary tab appears.
2. (Optional) Search for patient.
The Search tab gives you access to patient data in the Saved tests directory or in
a connected database (CardioPerfect workstation or EMR).
• Touch the Search tab.
• Enter the Patient ID or Last name.
• Touch the OK button.
• Touch the Search button.
• Touch the patient's name or ID in the Patient Name/Patient ID field.
• Touch the Select button.
• Touch the (Next) button to review or edit patient information.
• Touch the (Next) button again.
Skip to step 7.
3. Enter the following patient information as desired:
