Care and maintenance
Cleaning and disinfection
The following instructions apply to the Welch Allyn EpiScope.
Limitations on cleaning and disinfection
This device may be cleaned and disinfected multiple times
in accordance with these instructions. Cleaning and
disinfection process must include inspection to assure
damage has not occurred.
Instructions for cleaning the EpiScope
Clean EpiScope with a mild glass cleaning type solution
labeled compatible for use on plastic. Use of prepackaged
glass cleaner wipes is preferred, however, cleaning solutions
can also be lightly applied to a lint-free cloth and then used on
the EpiScope.
Apply pre-moistened wipe/cloth to surfaces of the EpiScope
and wipe to clean visible debris.
Instructions for cleaning the EpiScope’s lens or
contact plate glass
Clean debris from the lens or contact plate with a cotton-
tipped applicator moistened with 70% ethyl alcohol.
Instructions for disinfecting the EpiScope’s contact plate glass
After cleaning, the EpiScope’s contact plate can be disinfected
with the following hospital-type low or intermediate level
disinfectant solutions:
• Quaternary ammonium based, with alcohol (<50%)
low or intermediate level disinfectant.
• Inorganic chlorine based, low or intermediate level
disinfectant.
Note: Combination cleaner/disinfectants that carry a low or
intermediate level disinfectant claim based upon the disinfectant types
noted above are also suitable for use on the contact plate.
1. Remove the contact plate as shown:
2. Apply disinfectant to the contact plate per disinfectant
agent manufacturer's instructions.
3. After disinfection, the optical element may be recleaned if
necessary.
4. Re-install contact plate on to the EpiScope.
Maintenance, inspection, and testing
1. Inspect the EpiScope for signs of damage.
2. Appropriately discard any component that shows
evidence of damage or deterioration.
3. Contact Welch Allyn for component replacement.
4. Verify the proper operation of the EpiScope per this
manual’s directions for use.
Storage
Store the EpiScope in a dry, clean area. A carrying case
accessory is available, which holds the 3.5v rechargeable
handle and extra contact plate.
Lamp replacement
Power sources
The EpiScope Skin Surface Microscope is compatible with
all 3.5 v. Welch Allyn power sources.
Accessories
Warranty
Welch Allyn warrants the product to be free of defects in
material and workmanship and to perform in accordance
with the manufacturer’s specifications for the period of one
year from the date of purchase from Welch Allyn or its
authorized distributors or agents. Welch Allyn will repair or
replace, free of charge, any parts of its own manufacture,
proven to be defective through causes other than misuse,
neglect, damage in shipment, or normal wear. The EpiScope
contact plates are guaranteed for one year from date of
purchase.
Technical specifications

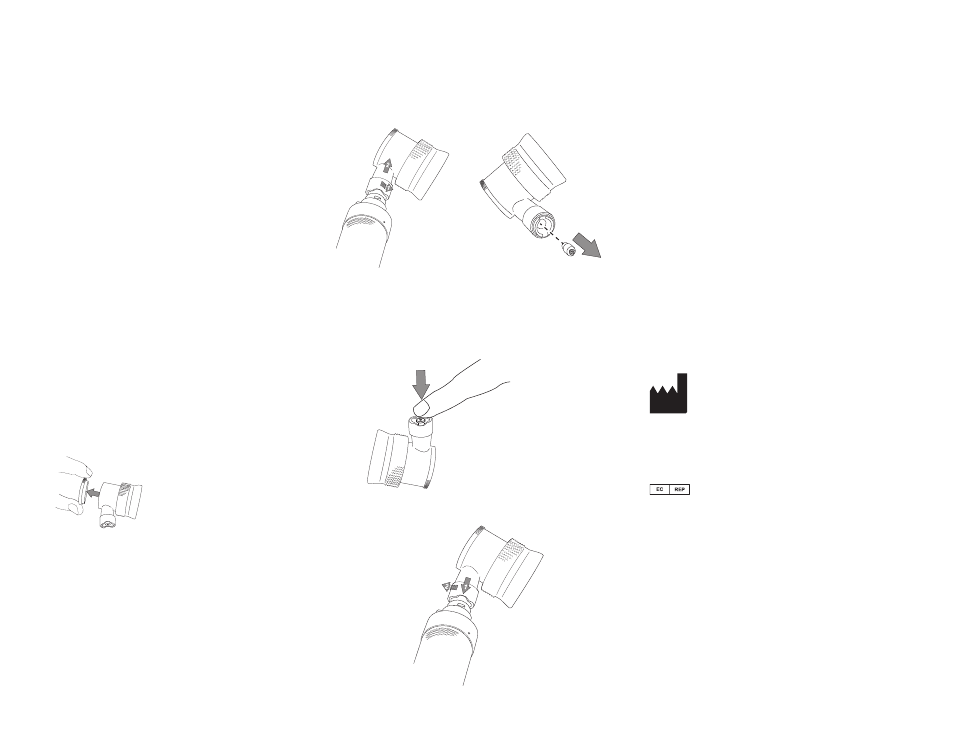

1. Remove EpiScope 2. Remove lamp
3. Remove new 03000 lamp from packaging. Be careful not to
touch the glass surface. If lamp surface is smudged, wipe clean
with a soft cloth
.
4. Insert 03000 Lamp until contact pin is below base flange.
5. Install EpiScope
47310 Reticle Contact Plate
47320 Plano Contact Plate
05232 Carrying Case
Magnification: 10x
Focal Range
(correction): ± 5D
Focal Length: 25mm
Welch Allyn Inc.
4341 State Street Road
Skaneateles Falls, NY 13153 USA
Tel. +1 800 535 6663 or +1 315 685 4560
Fax. +1 315 685 3361
www.welchallyn.com
For Welch Allyn Service Center telephone
numbers, visit:
www.welchallyn.com/about/company/
locations.htm
Regulatory Affairs Representative
Welch Allyn Limited
Navan Business Park, Dublin Road,
Navan, County Meath,
Republic of Ireland
© 2013 Welch Allyn, Inc. All rights reserved. To support
the intended use of the product described in this
publication, the purchaser of the product is permitted
to copy this publication, for internal distribution only,
from the media provided by Welch Allyn. Welch Allyn
assumes no responsibility for any injury to anyone, or
for any illegal or improper use of the product, that may
result from failure to use this product in accordance
with the instructions, cautions, warnings, or statement
of intended use published in this manual. Welch Allyn
is a trademark of Welch Allyn, Inc.
