Mounting the Third Handle Module
A Phillips screwdriver is needed to connect the Third Handle Module.
Mounting the Third Handle Module:
1.
Disconnect main unit power supply.
2. Remove main unit from the wall by lifting up and out (instructions found on page 2 of
this manual).
3. Attach stabilization bar to back of Third Handle Module (as shown using two enclosed
star washers and screws).
4. Line up the metal stabilization bar with the groove on the back of the main unit. Also,
line up the connecting blades with the blade openings on the side of the main unit
housing.
5. Slide Third Handle Module into the main unit until firmly in place.
6. Secure Third Handle Module in place (as shown using two enclosed star washers and
screws).
7. Place unit on the wall following the instructions found on page 2 of this manual and
reconnect main unit power supply.
8. Place instrument on third handle and lift from cradle. This will test for correct
attachment.

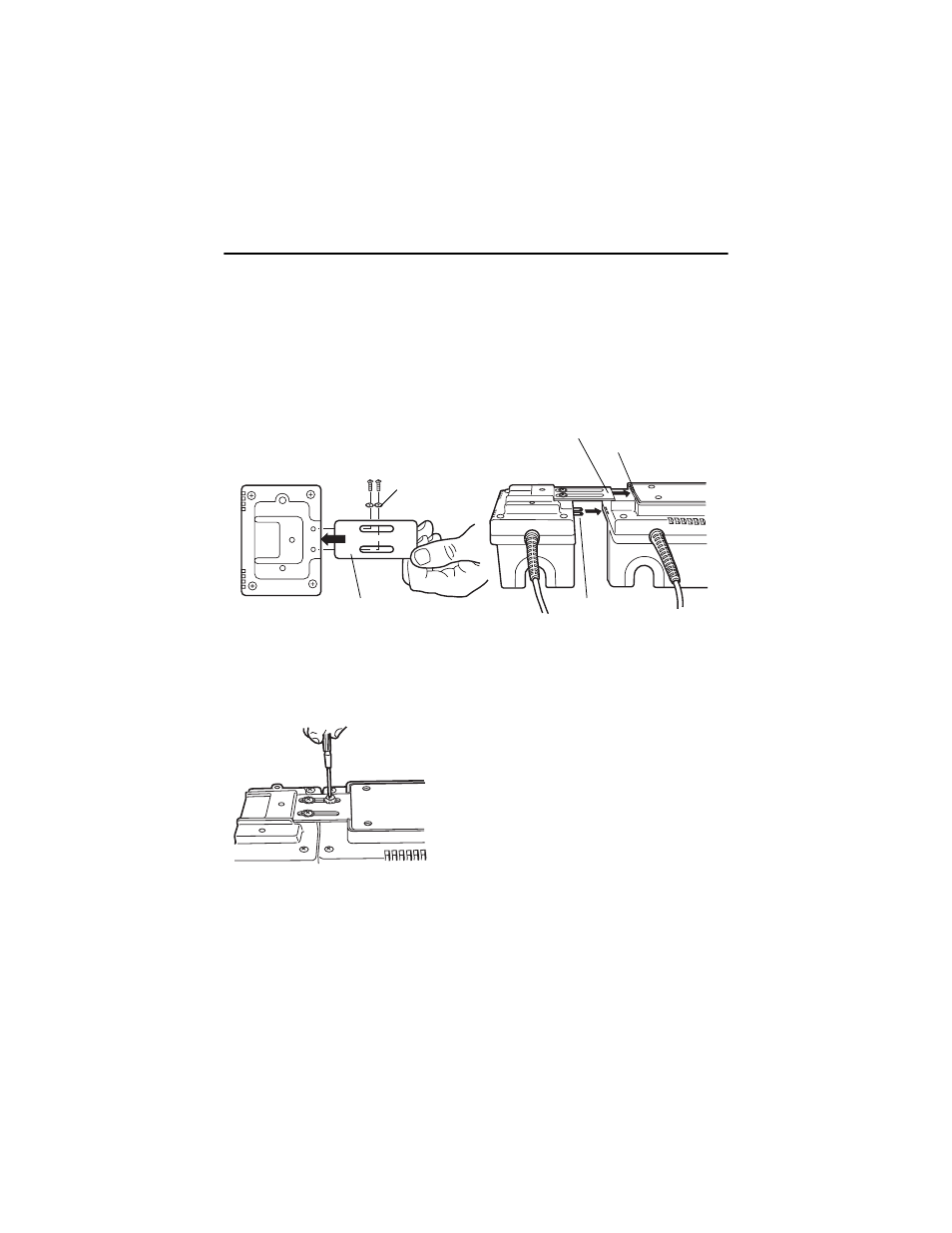

BACK OF THIRD
HANDLE MODULE
STAR
WASHERS
STABILIZATION
BAR CONNECTION
BLADES
MAIN UNIT THIRD HANDLE MODULE
BACK GROOVE
STABILIZATION
BAR
Step 3: Step 5:
Step 6:
