17

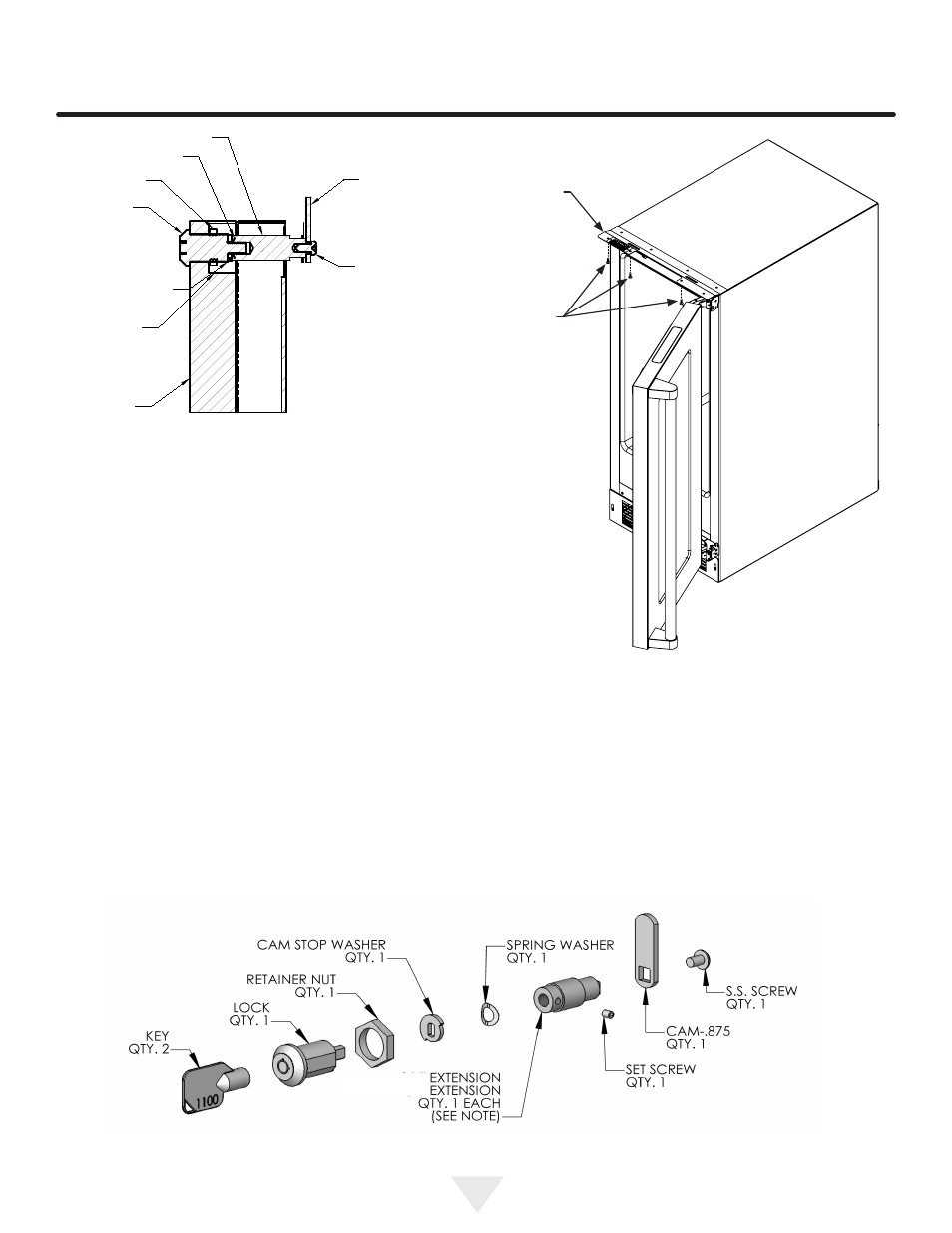

1.234" (31.3 mm)
.991" (25.2 mm)
SECTION A-A
SCALE 1 : 1
LOCK
NUT
BRASS EXTENSION
CAM
PHILLIPS SCREW
13/16 COUNTER
BORE 7/16 DEEP
1/2 HOLE
3/4 INCH
WOOD PANEL
SPRING WASHER
INNER
DOOR
Figure 20
Figure 21
Step 8: Secure the cabinet
Use the #8 x 3 ⁄
4
" black screws from the literature pack to
secure the counter top to the cabinet top through the holes
in the cabinet "Z" bracket.
Step 7: Install the door
Carefully open the top and bottom hinges on the door being
careful as there are many pinch points. Place the hinges
over the 4 screws in the cabinet, 2 at the top and 2 at the
bottom and slide the door into position. Tighten the 4 hinge
screws with a phillips screwdriver. (See Figures 8 and 8a).
Place wire harness from the grille and mount to the bot-
tom of the door with the screw and "P" clamp removed in
step 1. (See Figure 8b). Reconnect the wire harness, (See
Figure 9).
Cabinet
"Z" bracket
#8 x 3 ⁄
4
" black
screws
(3 places)
Figure 22
OVERLAY DOOR PANEL INSTALLATION
