12
!
WARNING
!
WARNING
!
CAUTION
OVERLAY DOOR PANEL INSTALLATION
!
WARNING
Use extreme caution with the articulated hinges. The
hinge is self closing and many pinch points exist prior
to built-in installation. Do not remove the cabinet "Z"
bracket from the top of the cabinet.
Loosen (do not remove ) these
2 phillips head screws on the
top and bottom hinges
If you purchased an overlay panel model, your unit is
equipped with articulated hinges to allow fully integrated
built-in installations. Custom panel thicknesses of 5 ⁄
8
" (15
mm) and 3 ⁄
4
" (18 mm) are accommodated.
It is important to use the factory provided grille that came
with the product to assure proper air flow is maintained
through the condenser. The use of a custom grille is not
recommended and will void the warranty.

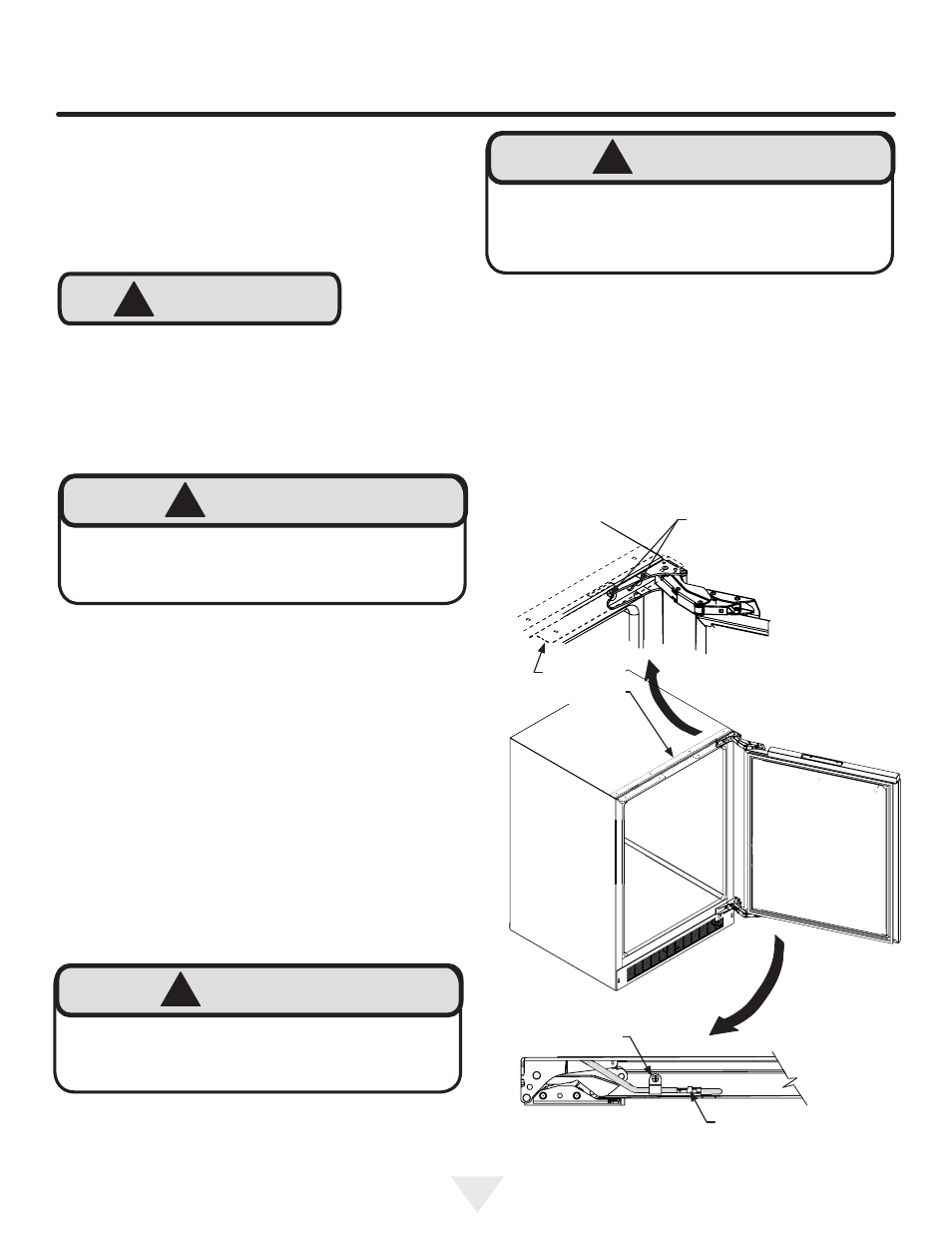

Figure 8
Figure 8b
Bottom of
door
Figure 8a
"P" clamp
and screw
Wire connector
see Figure 9
Cabinet
"Z" Bracket
Overlay panel models are designed for use with built-
in installations only. Use in freestanding installations
could result in personal injury.
Step 1: Removing the Door
With a phillips screwdriver remove the screw and "P" clamp
from the bottom of the door near the hinge. See Figure 8b.
Disconnect the door wire harness by pressing and holding
down the locking tab on the wire connector and pulling the
connector apart. See Figure 9.
Open the door and loosen the screws holding the hinges to
the cabinet (2 at the top and 2 at the bottom hinge). Do not
remove the screws but loosen them enough so the hinges
can be slipped off of the screws when sliding the door to
the side.
With a helper, and being careful not to scratch the cabinet
or the door, slide the door to the side about 1 ⁄
2
inch and
remove the hinges and door from the unit.
The articulated hinges have many pinch points. Care-
fully close / collapse the hinges as soon as the door is
removed from the cabinet.
