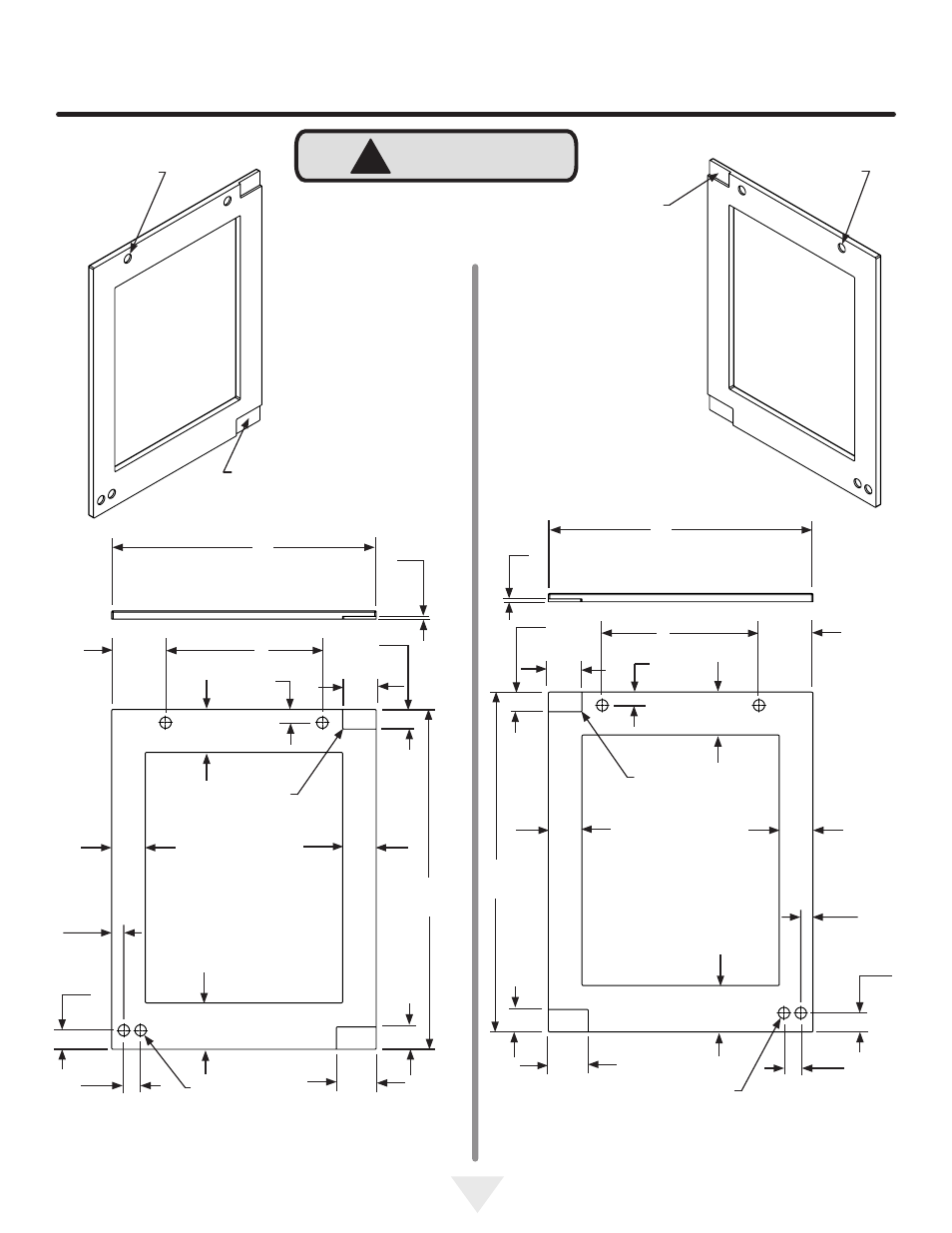

OVERLAY DOOR PANEL INSTALLATION
This side
facing interior
This side
facing interior
23 3 ⁄
4
"
(60.3 cm)
1 ⁄
4
"
(6 mm)
Deep
23 3 ⁄
4
"
(60.3 cm) 1 ⁄
4
"
(6 mm)
Deep
1" (2.5 cm) diameter
x 1 ⁄
4
" (6 mm) deep
4 places
1 1 ⁄
2
"
(3.8 cm)
typical
1 11 ⁄
16
"
(4.3 cm)
1" (2.5 cm) diameter
x 1 ⁄
4
" (6 mm) deep
4 places
4 7 ⁄
8
"
(12.4 cm)
3 1 ⁄
8
"
(7.9 cm)
2"
(5.1 cm)
3 11 ⁄
16
"
(9.4 cm)
3 11 ⁄
16
"
(9.4 cm) 1 1 ⁄
2
"
(3.8 cm)
typical
1 11 ⁄
16
"
(4.3 cm)
3 27 ⁄
32
"
(9.8 cm)
1 ⁄
4
" (6 mm)
radius is
permissible
14"
(35.6 cm)
1 3 ⁄
16
"
(3 cm)
3 1 ⁄
8
"
(7.9 cm)
30 11 ⁄
32
"
(77.1 cm)
30 11 ⁄
32
"
(77.1 cm)
3 1 ⁄
8
"
(7.9 cm)
4 1 ⁄
8
"
(10.5 cm)
3 1 ⁄
8
"
(7.9 cm)
1 3 ⁄
4
"
(4.4 cm)
3 1 ⁄
8
"
(7.9 cm)
2"
(5.1 cm)
4 1 ⁄
8
"
(10.5 cm)
1 ⁄
4
" (6 mm)
radius is
permissible
14"
(35.6 cm)
4 7 ⁄
8
"
(12.4 cm)
3 27 ⁄
32
"
(9.8 cm)
3 1 ⁄
8
"
(7.9 cm)
1 3 ⁄
4
"
(4.4 cm)
1 5 ⁄
32
"
(2.9 cm)
