AIRSHORE Struts and Accessories for Rescue
The ART strut is positioned on the mounting head of the clevis
with the support tube and is also secured and locked by the aid of
the spring-loaded safety pin of the strut.
1.5.3 Base plate

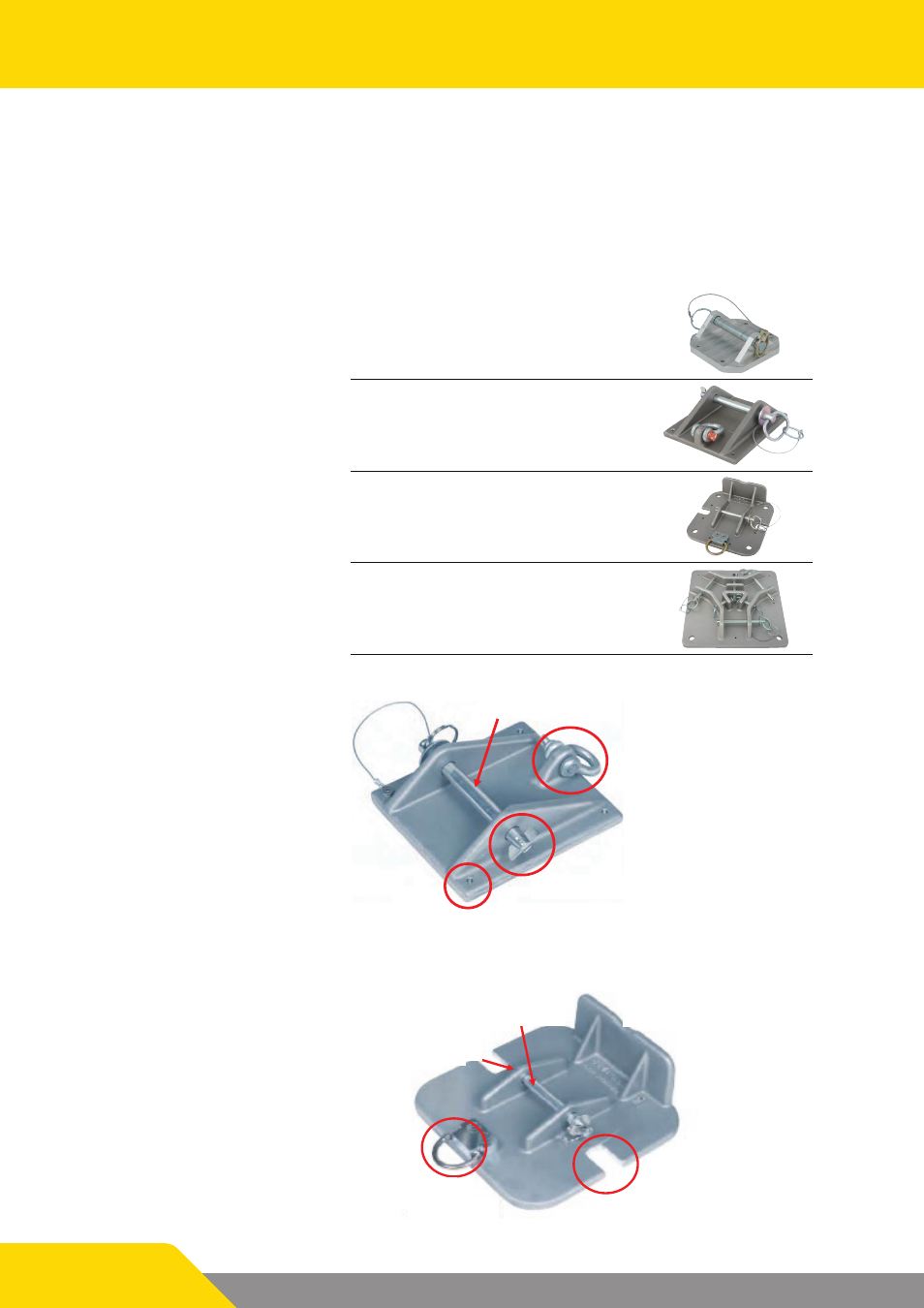

Base plates for ART struts are supplied in three versions.
ART-BP5 base plate
120 mm
is also used for the
Airshore rails, refer to
wall shoring
ART-BP6 base plate
150 mm
ART-BPB12 base
plate 300 mm with
bracket
ART-TH head plate
used for the high-
strength column and
for the tripod.
ART-BP6
Sicherungsstift
Sicherungsöse
Verriegelung Sicherungsstift
Bohrung mit Gewinde
Safety pin
Safety lug
Locking for safety pin
Threaded hole
ART-BPB12
Sicherungsstift Anschlag
Sicherungsöse
Verriegelung
Sicherungsstift
Aufnahme für
Erdanker
Safety pin
Safety lug
Locking for safety
pin
Bracket
Inlet for ground
anchors
