iDP-3535 User’s Manual
CITIZEN 29/38

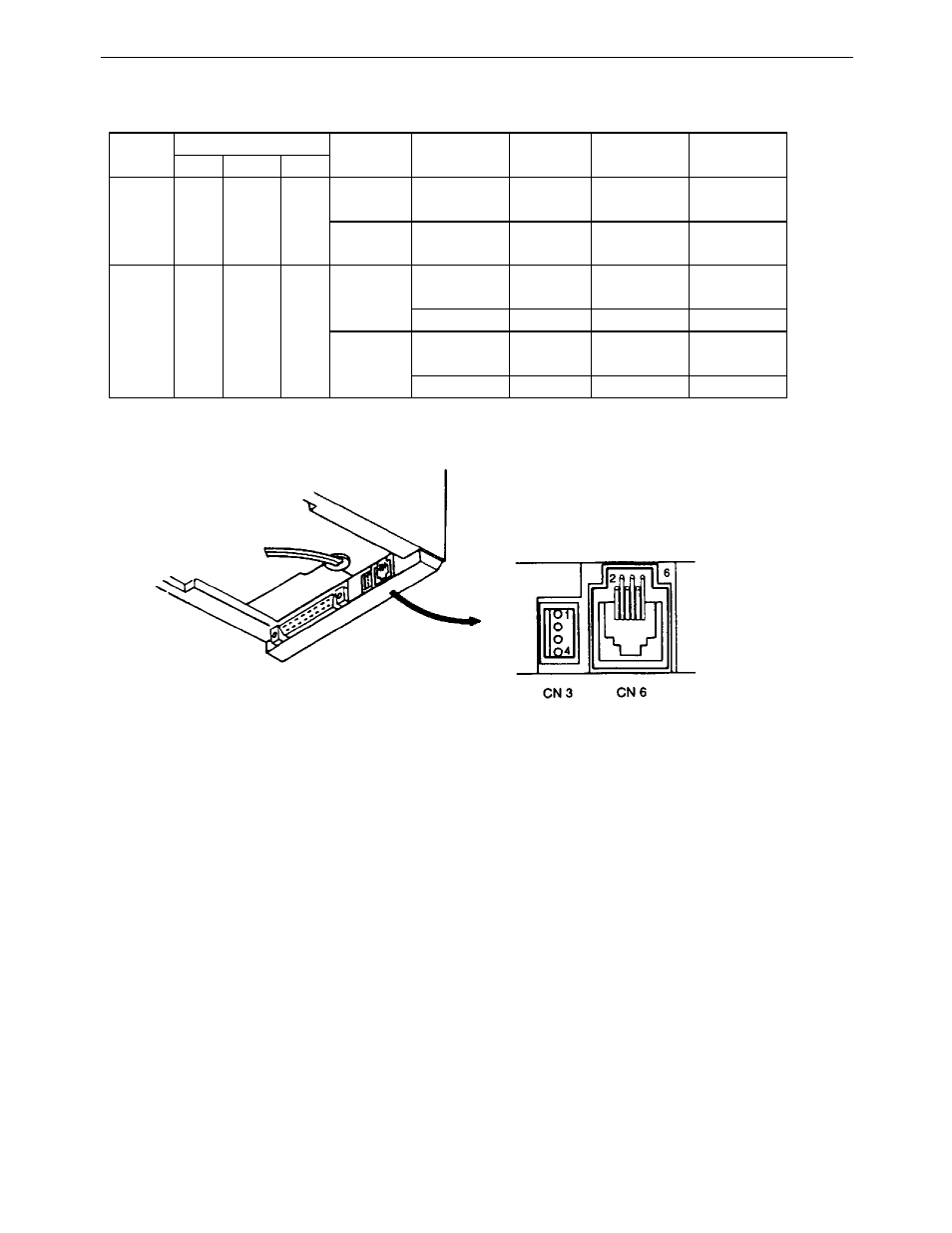

Usage of the DIP switch
Type Preset JP. Line Dig SW. Paper Cash Connector Command
JP 1 JP 2 JP 3 DIP 1-6 Winder Drawer (PIN) Code (HEX)
E type ON OFF ON ON L1(AW-3) - CN 3-2 LF (0A)
- L2 CN 6-2.5 SUB (1A)
OFF - L1 CN 3-2 BELL (07)
- L2 CN 6-2.5 SUB (1A)
U-type ON ON OFF ON L1(AW-3) - CN 3-2*1 LF (0A)
CN 6-2
- L2 CN 6-5 SUB (1A)
OFF L1 CN 3-2*1 BELL (07)
- CN 6-2
- L2 CN 6-5 SUB (1A)
*1. Do not connect External Device L1 (Drawer and Winder) to the connectors CN3-2 and CN6-2
at the same time.
Note : 1) External device 1 and 2 can not be driven at the same time. In case the device is driven continuously,
the duty note should be less than 20%.
2) The resistance of L1, L2 should be more than 36
Ω
.
3) Paper winder (AW-3) and cash drawer are option.
