iDP-3535 User’s Manual
CITIZEN 12/38
4-2 The Ribbon Cassette Installation
To insert a ribbon, disconnect the power source beforehand. When the printer has been printing for
many hours, be careful not touch printer head as it might be hot.
1) Remove the printer cover

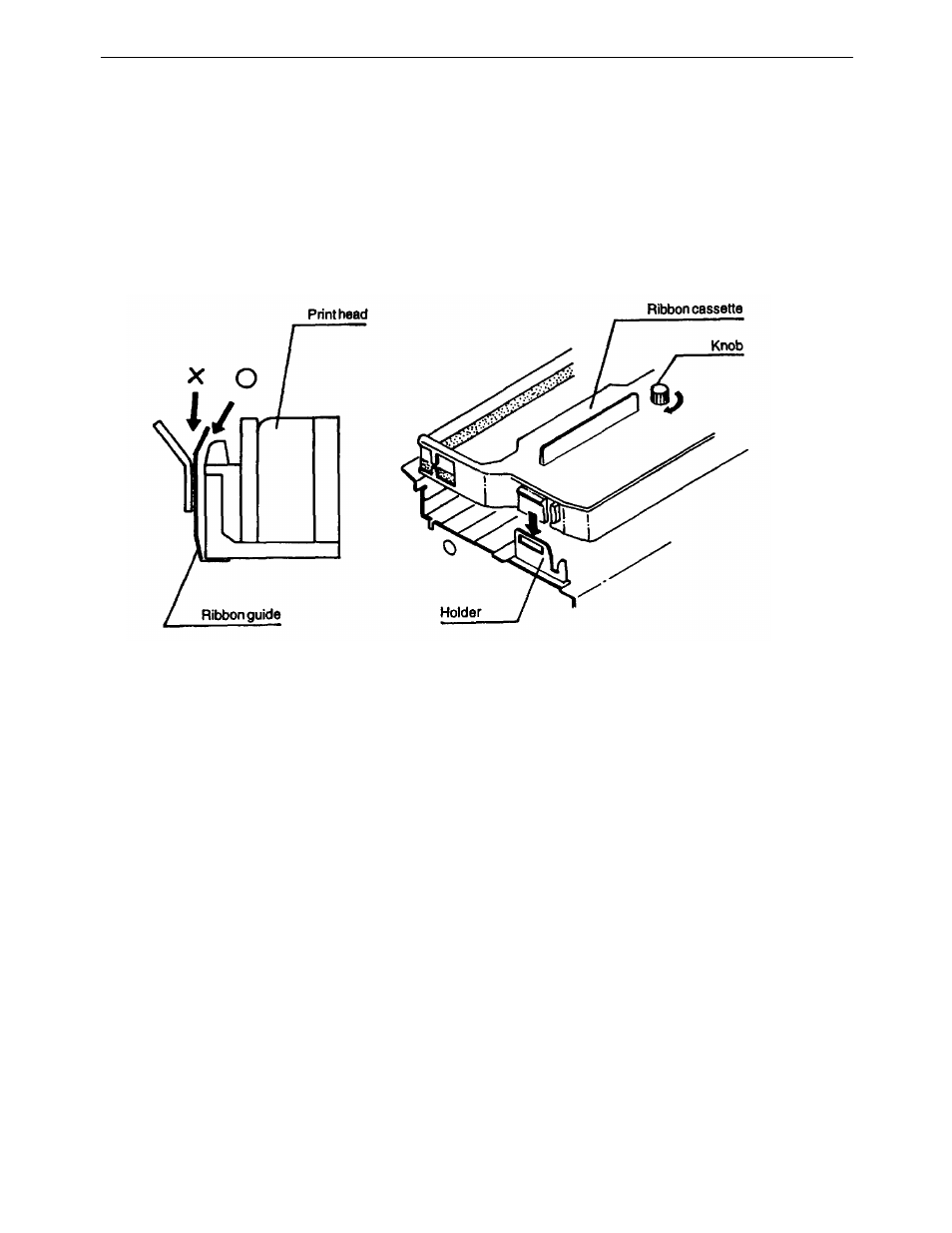

2) While inserting the ribbon into the space between the print head and the ribbon guide, press the cassette
into the holder unit until it clicks into place. (Ref. To Fig. 4&5)
3) Turn the cassette ribbon knob in the direction of the arrow to take up slack in the ribbon.
Fig. 4 Fig. 5
