iDP-3535 User’s Manual

CITIZEN

14/38

Using Fan-fold Paper
1) Remove the printer cover.
2) Set the imprint face of the paper down ward and put into the paper entrance.
3) If necessary to adjust the sprocket-wheel’s position, free the wheels using the lever on both side.

Slide them to the appropriate position, and lock them back.

4) Hook some of the paper’s perforations on the sprockets and forward the paper into the printer mechanism

by pulling and turning the paper-feed knob until the paper’s tip reaches the platen.

5) The unlock the levers of the sprocket and match the marks (3 or 3.5 inches) with the width of the paper.

Then lock them back.

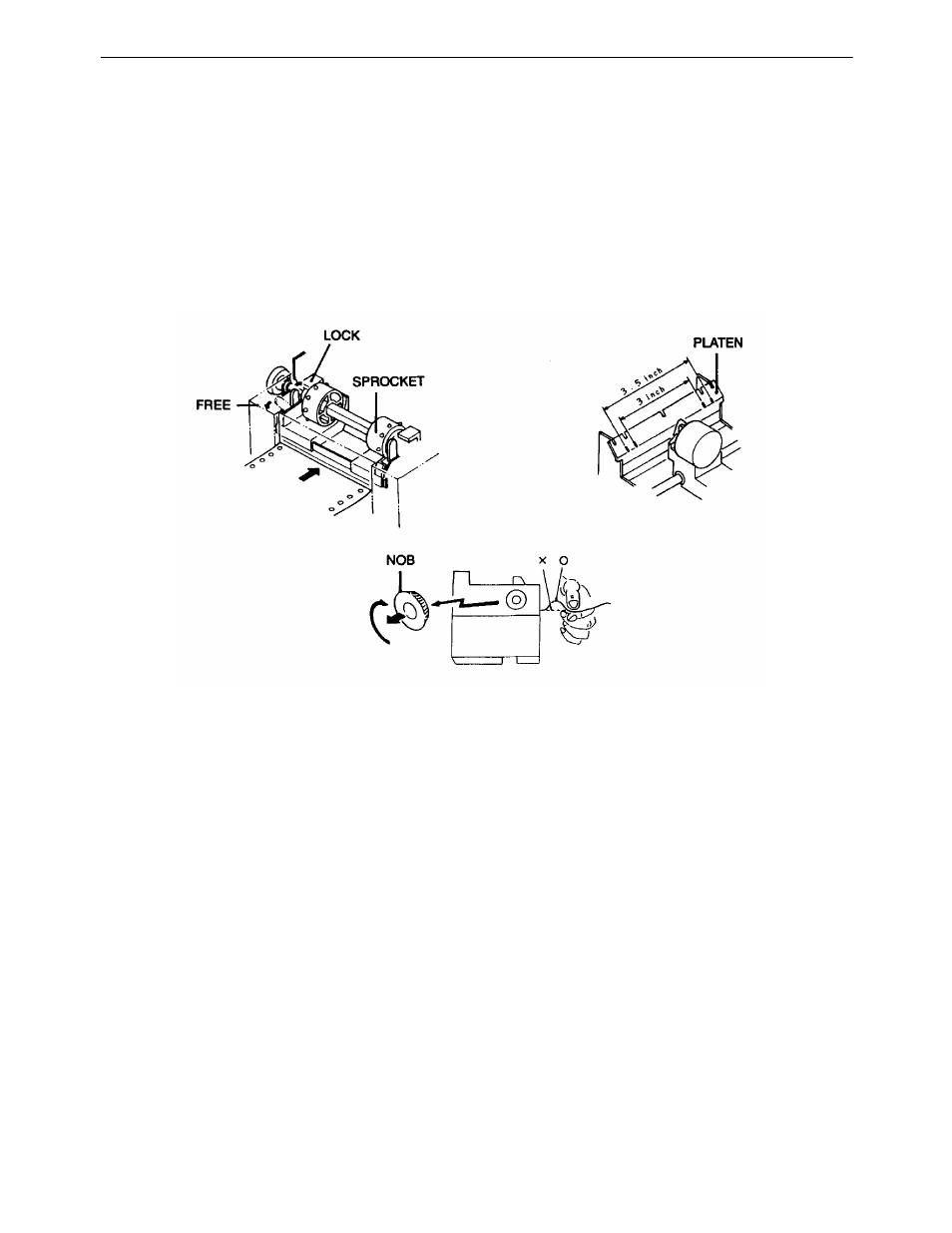

Fig. 8
