Qwik Install
STEP 1: Connect 18AWG wire to the solar panel inside wire junction
box. Install solar panel to the mount so that junction box is at the top or
side. Install mount to 2” to 4” pole. Solar panel should be facing South if
in Northern Hemisphere. If you are planning to keep solar panel angle
fixed all year then set the angle to Your_Latitude * 0.9 +30

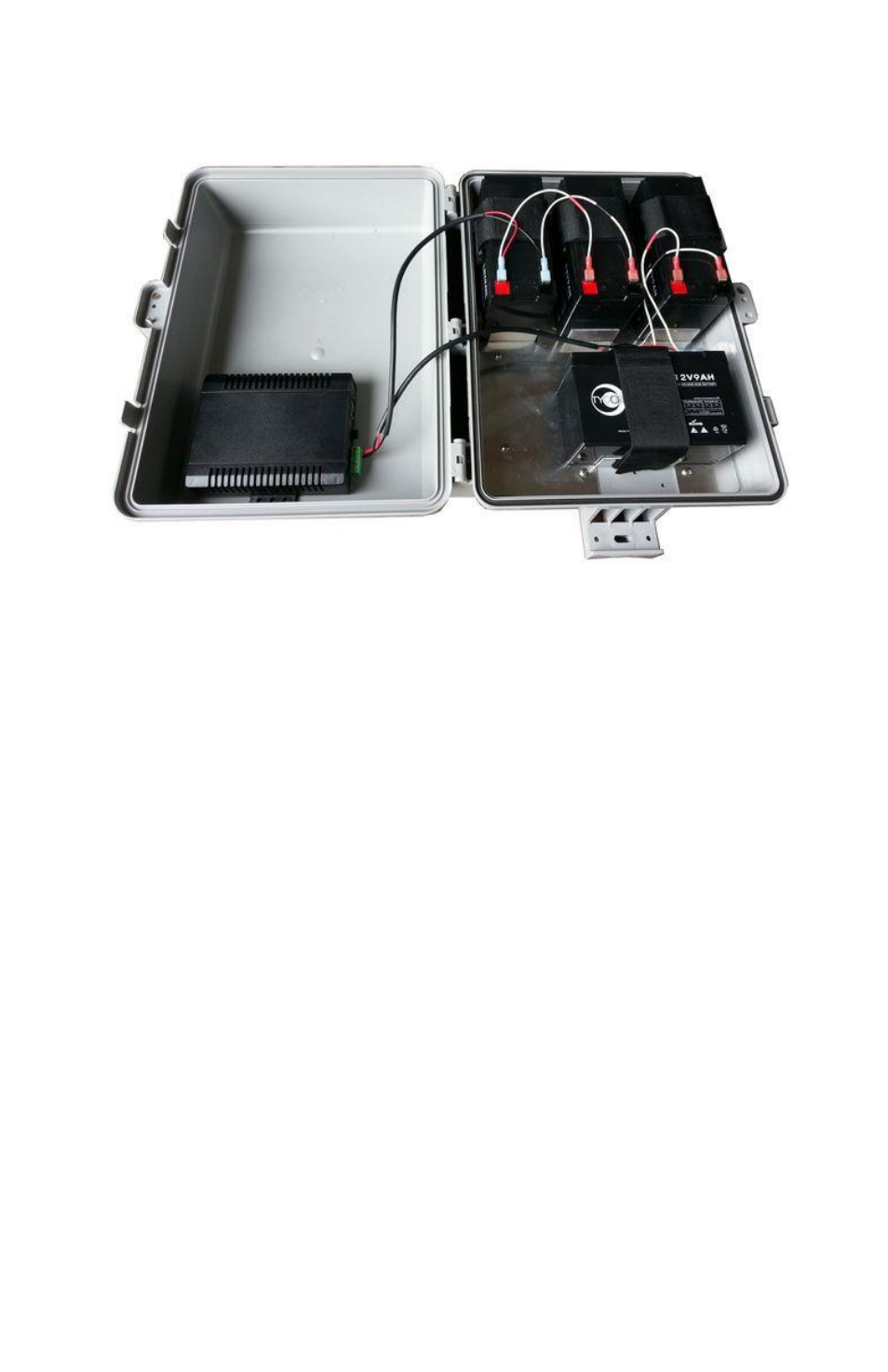

STEP 2: Mount any electronics inside the enclosure then mount the
enclosure to the pole. We recommend mounting the enclosure directly
under the solar panel and just low enough that the enclosure cover can
be opened without interfering with solar panel tilted at its winter angle.
Note: The enclosure and solar panel can also be mounted to a wall
if desired.
STEP 3: Connect a CAT5 cable between the controller POE OUT and
the electronics. There is a secondary voltage output on the back of the
controller which can be used in addition to the POE OUT. The second-
ary output is equal to the battery voltage.
Note: If grid power is available the batteries can also be charged
over POE using an appropriate power supply/POE Inserter and CAT5
cable connected to the controller POE Input. We offer a POE inserter
model number POE-INJ-S and a 24V 2.5A power supply model num-
ber PS24V-2.5 that are designed for this use.
STEP 4: Route 18AWG wire from solar panel into the enclosure and
