User’s Manual

TP-MS308/316/324



6

Rear Panel

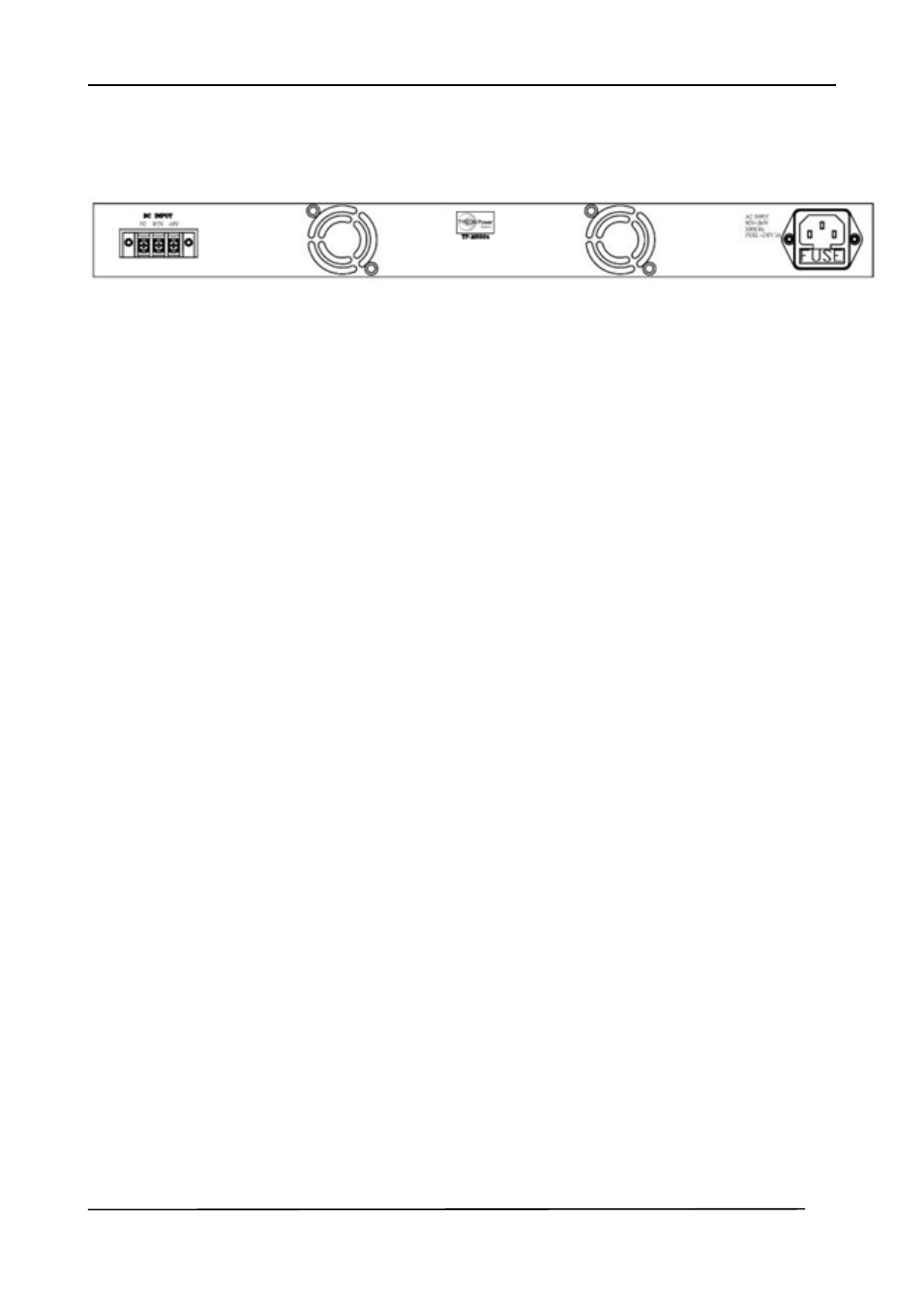

Figure 2-2. The Rear Panel of TP-MS308/TP-MS316/TP-MS324

The AC inlet, DC input terminal and 2 Ventilation fan are located at the rear panel of

the TP-MS308/TP-MS316/TP-MS324. The device will work with AC in the range

100-240V AC, 50-60Hz. Or work with DC -48V(-42V~-57V).

Power On

Connect the power cord to the power socket on the rear panel of the PSE. The other

side of power cord connects to the power outlet. The internal power supply of the PSE

works with the voltage range of 100V-240VAC, frequency 50~60Hz, or with voltage

range of DC -42V~-57V. Check the port, the power indicator will self-test on the front

panel to see if power is properly supplied.

Network Application

The PSE can provide power to the PD which follow the IEEE 802.3af standard in the

network. It can solve the problem of position limitation. The network device can be

installed in a more appropriate position for better performance. The following figure is

an example of a network application for PSE
