Tycon Power UPS-ST12-50 - Manual (Page 2)

2
Qwik Install

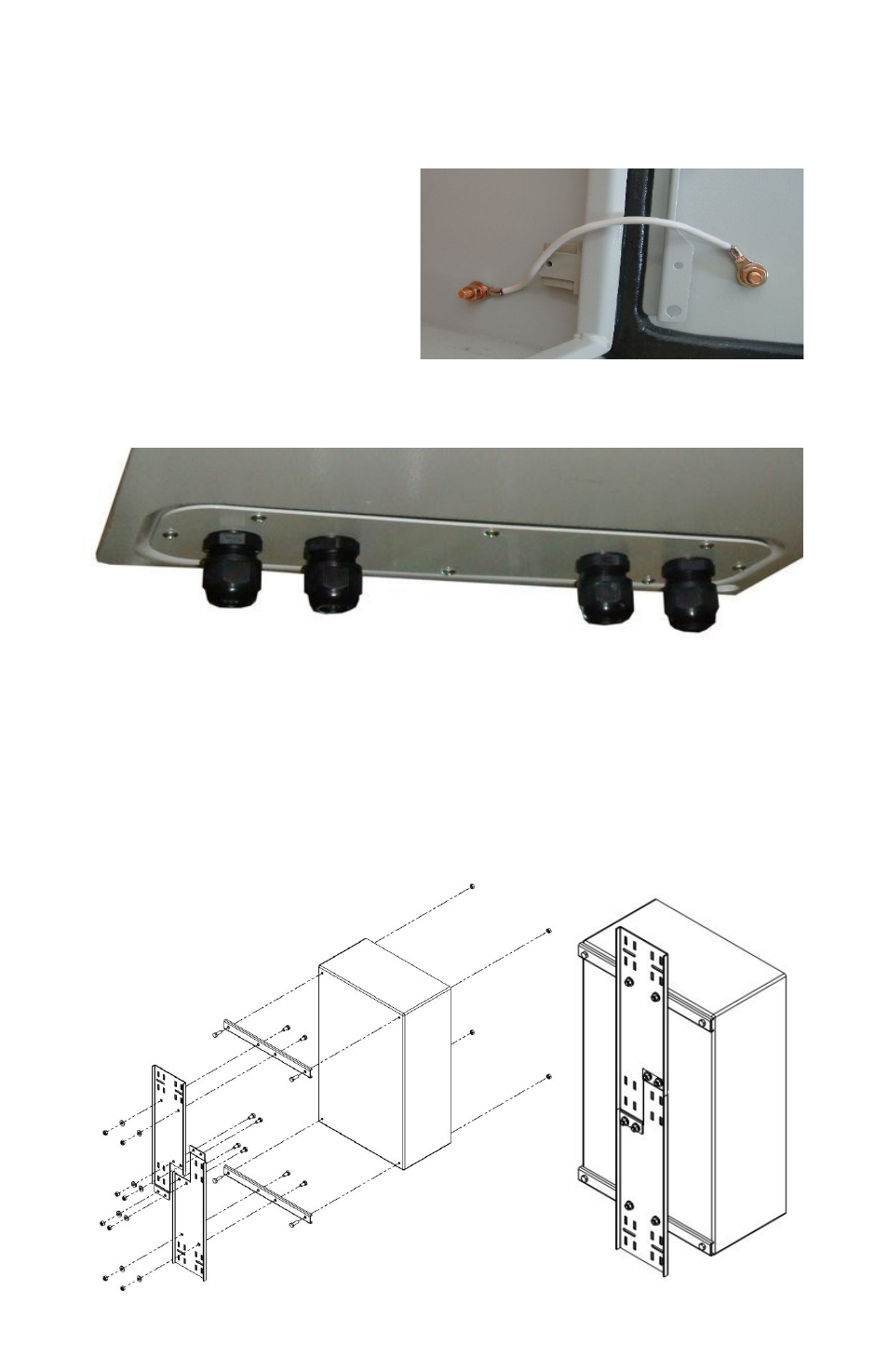

STEP 1: Add Grounding Wire
Between Door and Enclosure:
Remove plastic covers on cop-
per studs on inside of door and
inside of enclosure. Add jumper
wire between 2 copper studs
and use copper washers and
nuts to secure.
STEP 2: Add wire feedthrus into
the bottom connector plate. Attach the connector plate to the bottom of
the enclosure using self tapping screws provided.
STEP 3: Install hole plug in drain hole in bottom right corner of the en-
closure.
STEP 4: If pole mounting the enclosure, assemble the pole mount
kit to the back of the enclosure and mount the enclosure to a pole using
the 6 hose clamps provided. The enclosure can also be wall mounted
using the 4 holes in the back of the enclosure.
