Tycon Power UPS-ST24-100-8-UBNT User Manual

Page 3

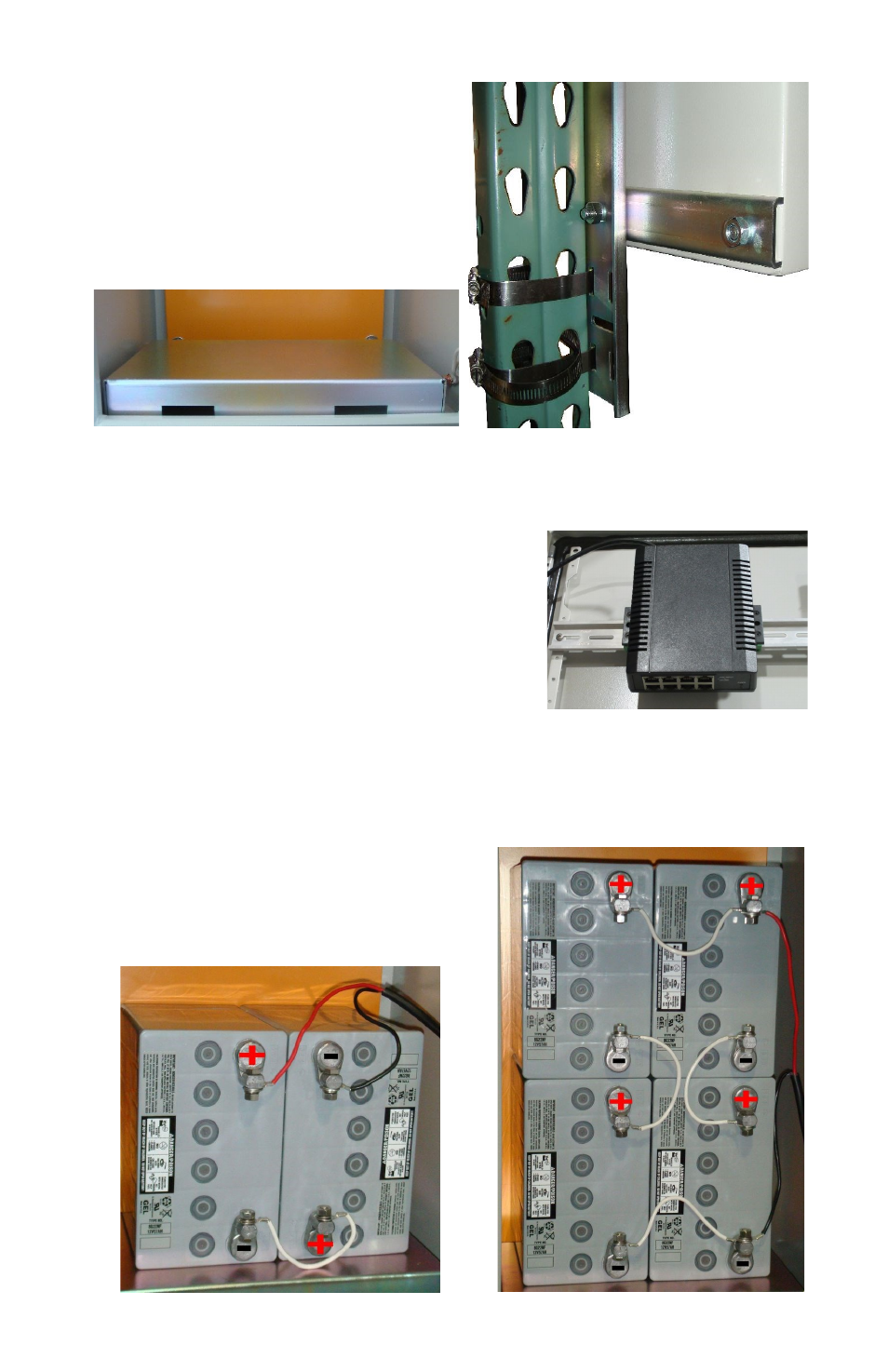

STEP 4: If pole mounting the en-

closure, assemble the pole mount kit

to the back of the enclosure and

mount the enclosure to a pole using

the 6 hose clamps provided. The en-

closure can also be wall mounted

using the 4 holes in the back of the

enclosure.

STEP 5:

Insert the battery platform in the bottom of the enclosure. The

battery platform has cutouts so wires can be routed under the battery

as needed.

STEP 6: Attach the green DIN Rail adapt-

ers to the 8 port POE switch using the screws

provided. Clip the POE switch to the DIN rail.

Connect a cable from the controller LOAD

output to the 8 port POE switch green voltage

in connector V+ and V-. There are two V+

and two V– inputs. Either input is fine to use.

Just make sure polarity is correct.

STEP 7: Install the batteries in the enclosure. If using multiple bat-

teries, connect in series for 24V output.

24V two battery and 24V four battery configurations are shown

below. Batteries are connected in se-

ries, with Plus(+) connected to Minus(-).
