8
4.3 SELECTING HEADLAMP PATTERN
Not all headlamps are created alike and different vehicles
may have different design patterns. To be certain of the
lamp pattern, a designate is located on the lamp at the
bottom of the lens. Patterns of lamps that may be aligned
with the LCA 2
EZ are;

SAE HIGH BEAM: All high beam lamps. Highest
intensity point is centered on the Horizontal /
Vertical axis.

SAE LOW BEAM: All low beam lamps
manufactured prior to 1999, selective manufacture
after 1999. The high intensity area is located in the
lower right hand quadrant.

FOG/DRIVING LAMPS: All fog/driving lamps the
top of the high intensity area is located 4” down and
centered on the Vertical axis.
NOTE: DO NOT use “Visual Assist” Meter
for alignment assistance for Fog /
Driving Lamps

SAE LOW BEAM “ VOR ” (Visual Optical Right):
Low beam lamps manufactured after 1999, some
vehicles. The high intensity area is located in the
lower right hand quadrant and the beam pattern is
aligned by placing the right upper portion of the
beam pattern on the Horizontal axis.
NOTE: “Visual Assist” meter can be used when
aligning this lamp type if the lamp is
switched to HIGH beam and aligned as
High beam procedure.

SAE LOW BEAM “ VOL ” (Visual Optical Left):
Low beam lamps manufactured after 1999, some
vehicles. The high intensity area is located in the
lower right hand quadrant and the beam pattern is
aligned by placing the left upper portion of the beam
pattern on the .4 Degree (2.096”) Down Horizontal
axis.
NOTE: “Visual Assist” meter can be used when
aligning this lamp type if the lamp is
switched to HIGH beam and aligned as
High beam procedure.
4.4 ALIGNMENT OF HEADLAMP PROCEDURE

Locate LCA 2 EZ approximately 18 inches from in
front of the lamp to be aligned.

Position LCA 2 EZ in front of first lamp to be
aligned.

Align LCA 2 EZ to vehicle by sighting through the
sighting unit.

Select headlamp pattern and press “Visual Assist”
Switch to lamp type, HIGH BEAM or LOW BEAM.

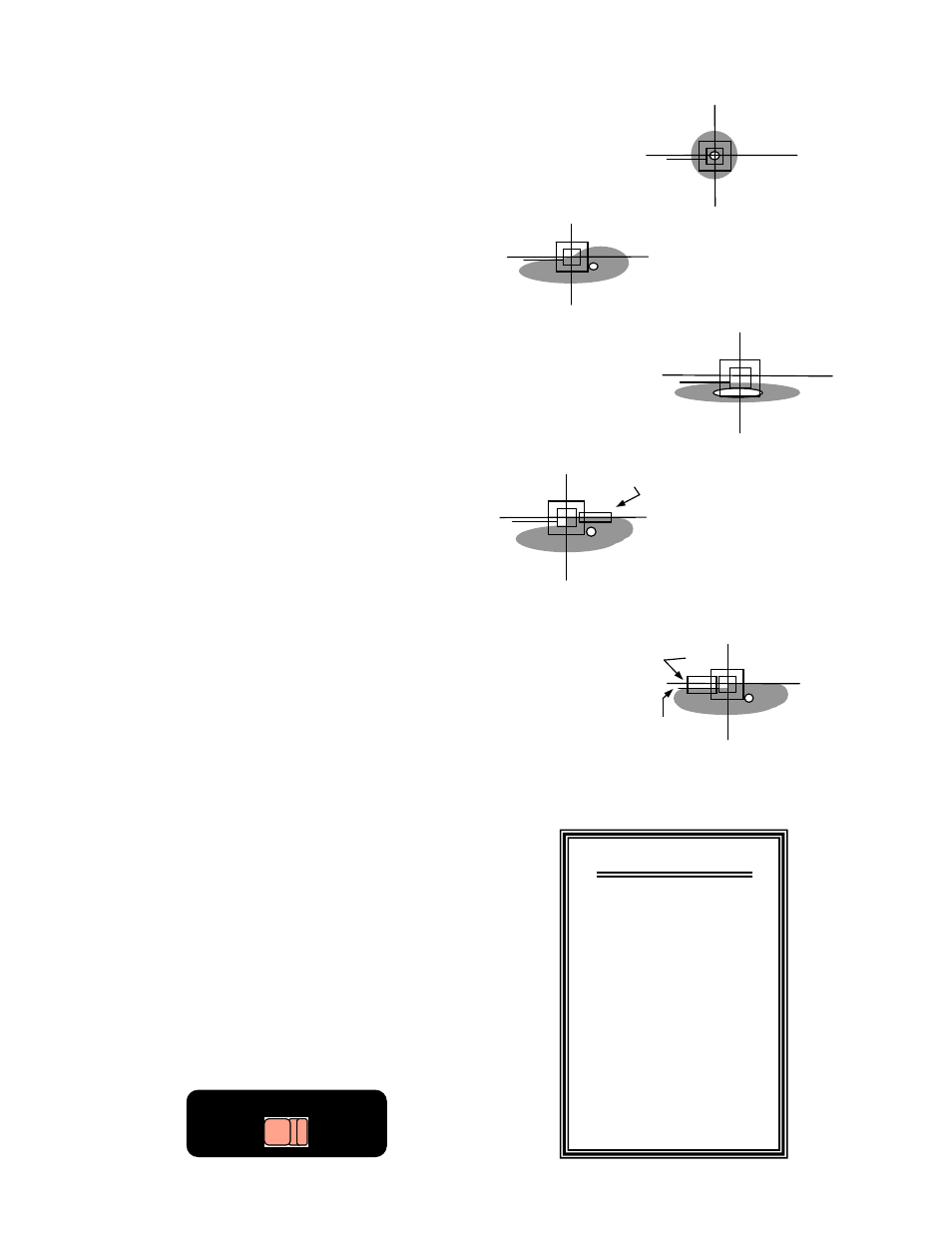

H
V
High Beam
H
V
US Low Beam
V
H
Fog / Driving
Lamp
US Low Beam
VOR
Aim Area
V
H
H
V
US Low Beam
VOL
.4 Degree Down
(2.096 Inches)
Aim Area
PROCEDURE for HEADLAMP
ALIGNMENT
1. Measure and Adjust for Floor
Slope. Refer to Instruction
Manual.
2.
Square LCA 2EZ to Vehicle by
Looking Through Sighting Unit.
Align Two Common Points on
Front of Vehicle With Line in
Sighting Unit.
3.
Position LCA 2EZ in Front of
First Lamp to be Aligned.
4.
Press “Visual Assist” Button to
Lamp Beam Type. While viewing
meter, Adjust Lamp to highest
achievable reading.
5.
Move LCA 2EZ to Next lamp and
Repeat Steps 2 Through 4. “HIGH”
BEAM
“LOW”
BEAM
VISUAL ASSIST
SELECTOR
