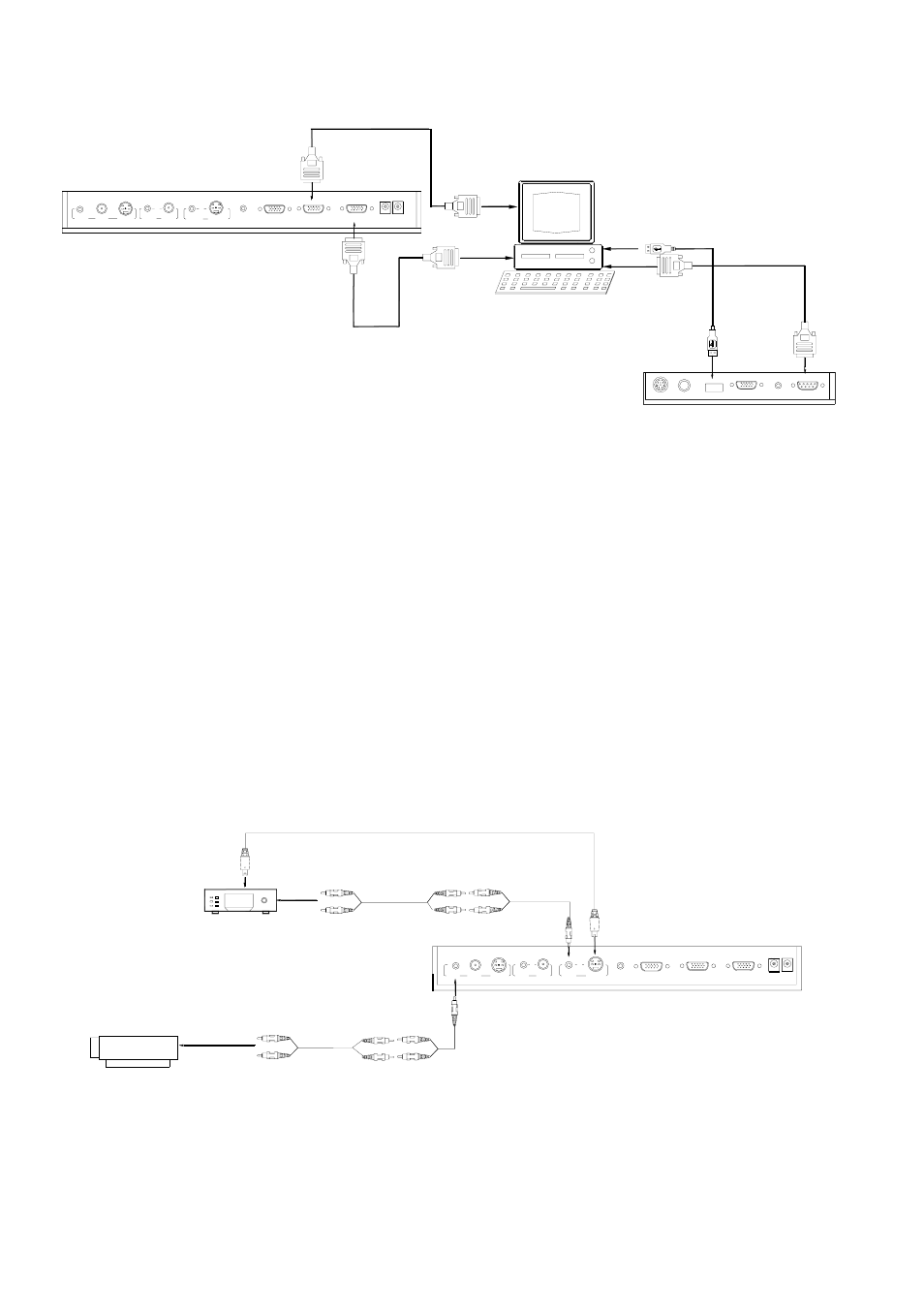

QOMO QD1600 - Manual (Page 9)

RGB Output
To the
Monitor
USB Connector
Computer
RS232
Cable
Side Panel
MIC USB RGB IN AUDIO IN RS232
S-VIDEO
Rear Panel
VIDEO AUDIO
OUT IN
S-VIDEO
OUT
AUDIO AUDIO VIDEO
IN
OUT -COMPUTER- IN PROJECTOR AUDIO IN OUT-12V- IN
MOUSE
Note:
You can connect a laptop computer to the RGB IN port of side panel
with a RGB cable.
Step 4: Connect to the first video equipment with S-Video input.
Output of the S-Video signal from the visualizer to the projector is already
done in the step 2, where the RGB cable comes out from the visualizer and
goes to the projector. After the connections as steps 2, 3, 4 are made, input
AUDIO
IN
S-VIDEO
OUT OUT
VIDEO AUDIO VIDEO
Video equipment
S-Video out
Audio out
Audio input
(or amplifier/speaker equipment)
Projector
S-Video Cable
S-VIDEO AUDIO
IN
PROJECTOR
Rear Panel
AUDIO IN OUT-12V- IN OUT -COMPUTER- IN
9
