Connections, Rear panel side panel – QOMO QD1600 User Manual
Page 6
FAR/NEAR
(Focus near or far)
AUTO
(To auto adjust brightness, auto white balance and auto focus)
VOL+/-
(Increase or decrease the volume)
CCD/PC1/PC2
(CCD/RGB input signal selection)
VIDEO
(S-VIDEO/ VIDEO input signal selection)
RED+/-
(Increar or decrease the red hue)
BLUE+/-
(Increar or decrease the blue hue)
BRIGHT+/-
(Increas or decrease the brightness)
SCROLL /
(Move the image up/down)

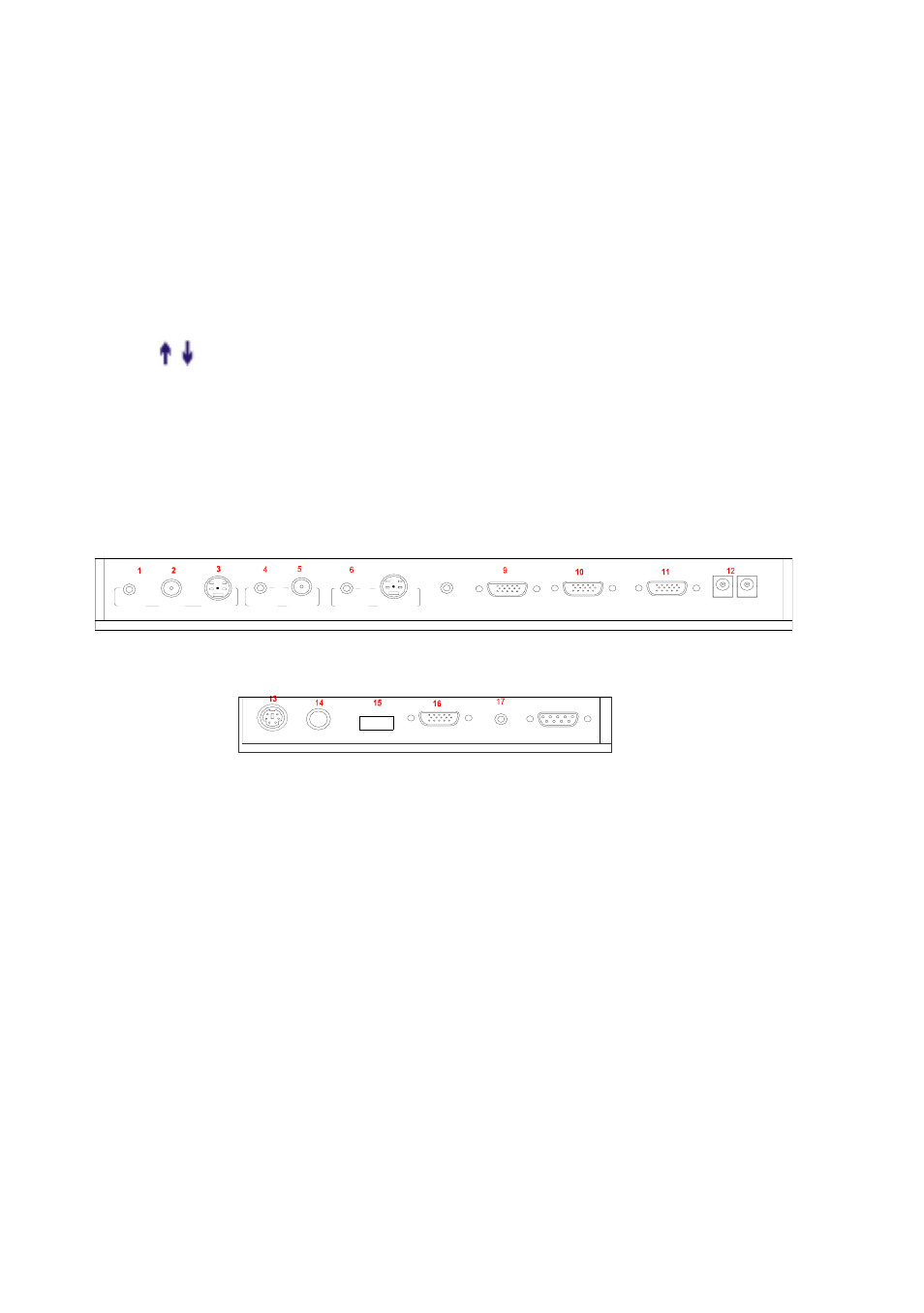

CONNECTIONS
USB
M IC
V IDEO
O UT
AUD IO
A UDIO
O UT
S-VIDEO
IN
V IDEO
RG B IN
AUDIO IN
RS232
Rear Panel
Side Panel
#1 AUDIO OUT
#2 VIDEO OUT
#3 S-VIDEO OUT
#4 VIDEO AUDIO IN
#5 VIDEO IN
#6 S-VIDEO AUDIO IN
#7 S-VIDEO IN
#8 PC AUDIO IN
#9 PROJECTOR Connector
#10 COMPUTER OUT
#11 COMPUTER IN
#12 POWER OUT/IN
#13 MOUSE #14 MIC IN
#15 USB Connector #16 RGB IN
#17 RGB AUDIO IN
#18 COMPUTER RS-232 Connector
PRO JE CTO R
O U T -CO M PUTER- IN
O UT-12V- IN
AUDIO IN
S-VIDEO
AUDIO
IN
M O USE
6
