692
Practical hints

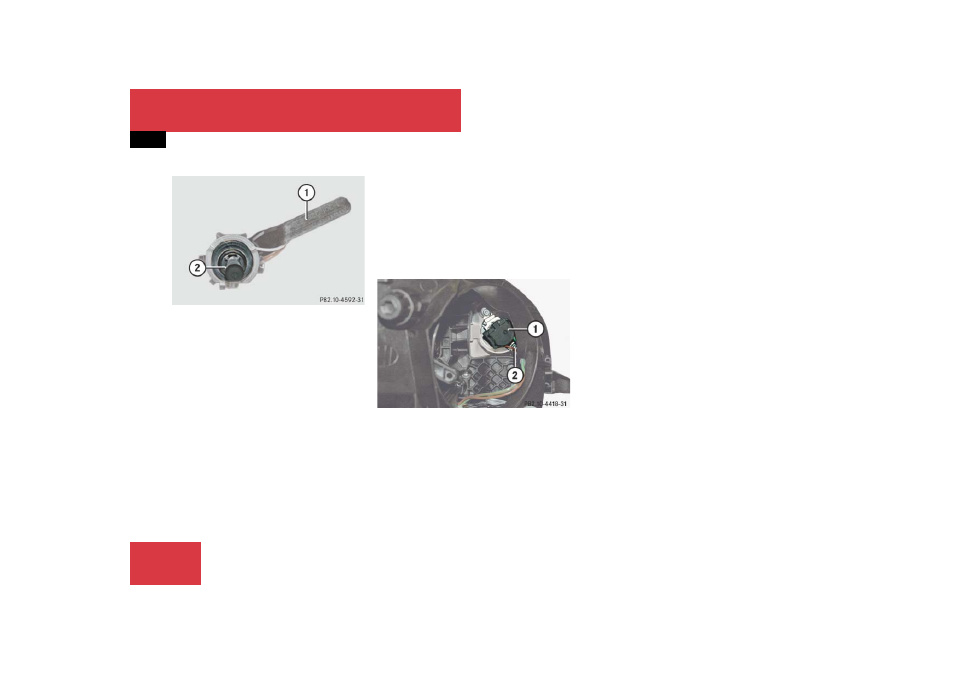

Replacing bulbs
1 Installation device
2 Bulb
̈ Pull bulb 2 out of the socket.
̈ Insert new bulb 2 into the socket.
̈ Insert installation device 1 into the
headlamp so that the handle of the in-
stallation device points up (left head-
lamp) or down (right headlamp).
̈ Pull installation device 1 down (left
headlamp) or up (right headlamp) until
it engages.
̈ Attach cover ( ୴ page 691) and let it au-
dibly engage to close.
Corner-illuminating lamp
1 Bulb holder
2 Wire position
̈ Turn bulb holder 1 counterclockwise
until it disengages.
̈ Take out bulb holder 1.
̈ Take bulb out of holder.
̈ Insert new bulb into holder and press it
all the way down.
̈ Insert bulb holder 1 into guide in
headlamp.
The tab of the bulb holder must be po-
sitioned on the upper left-hand side
and wire
2 must point downward and
to the left for the left headlamp, up-
ward and to the right for the right head-
lamp.
̈ Turn bulb holder 1 clockwise until it
engages.
i Make sure to insert the bulb in the right di-
rection. The bulb must fit plane on the socket.
