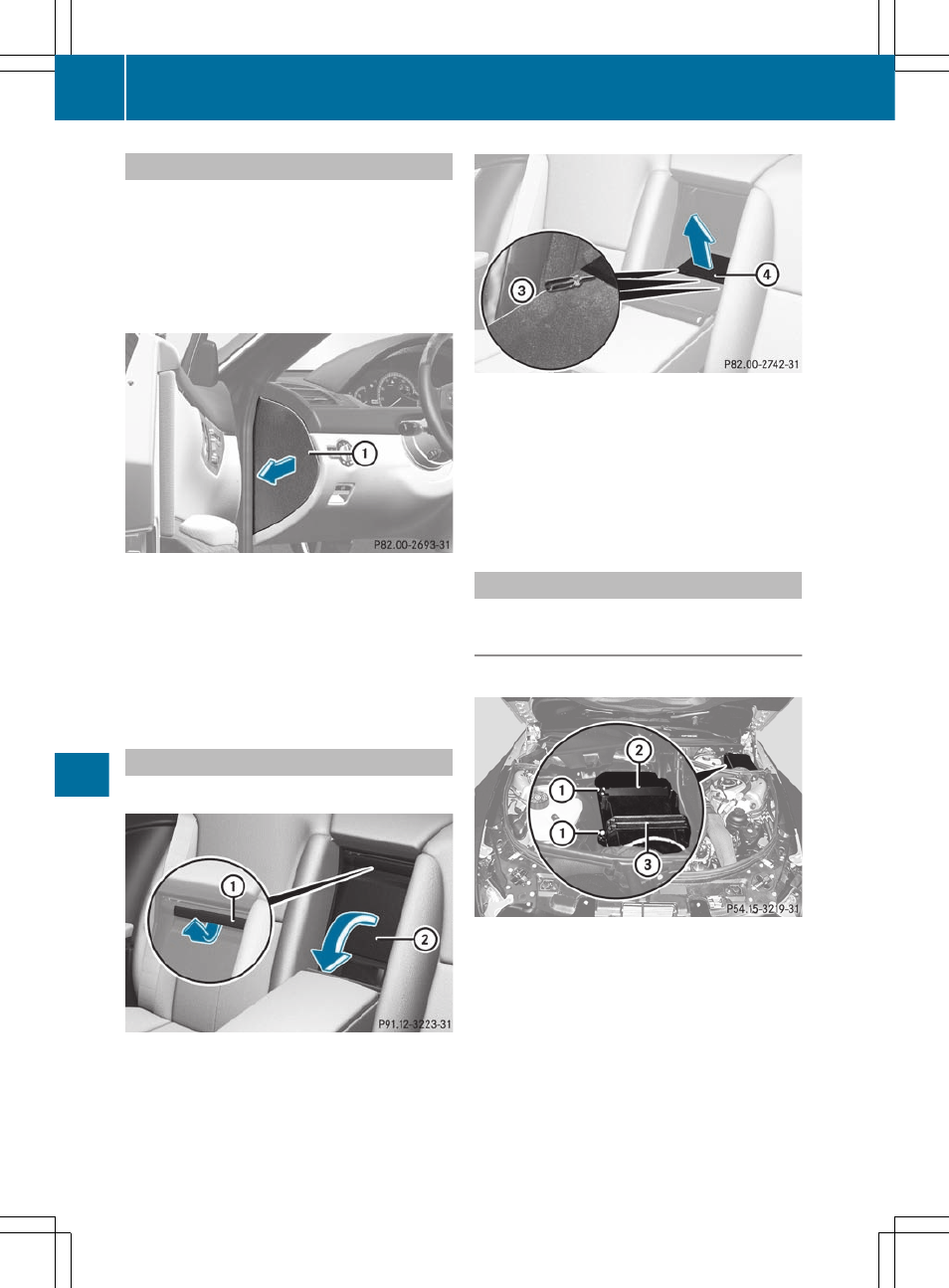

Dashboard fuse box
There is a fuse box located on both the
driver's side and the front-passenger side.
! Do not use a pointed object such as a
screwdriver to open the cover in the
dashboard. You could damage the
dashboard or the cover.
Driver's side illustrated
X To open: pull cover : outwards in the
direction of the arrow and remove it.
X To close: clip in cover : on the front of
the dashboard.
X Fold cover : inwards until it engages.
Fuse box in the rear compartment
The fuse box is behind the armrest in the rear.
X To open: fold down the armrest.
X Pull handle : on the trim behind the rear
seat armrest up in the direction of the
arrow.
X Fold down trim ;.
X Loosen cover ? with a suitable object =.
X Remove cover ? upwards in the direction
of the arrow.
! The cover must be seated properly,
otherwise moisture or dirt could impair the
function of the fuses.
Fuse box in the engine compartment
Fuse box on the left-hand side of the
vehicle
X Open the hood ( Y page 404).
X Remove any existing moisture from the
fuse box using a dry cloth.
X AMG vehicles: remove the control unit
above the fuse box.
X To open: loosen screws : with an Allen
key.
X Remove bracket =.
X Remove cover ;.
434
Fuses
