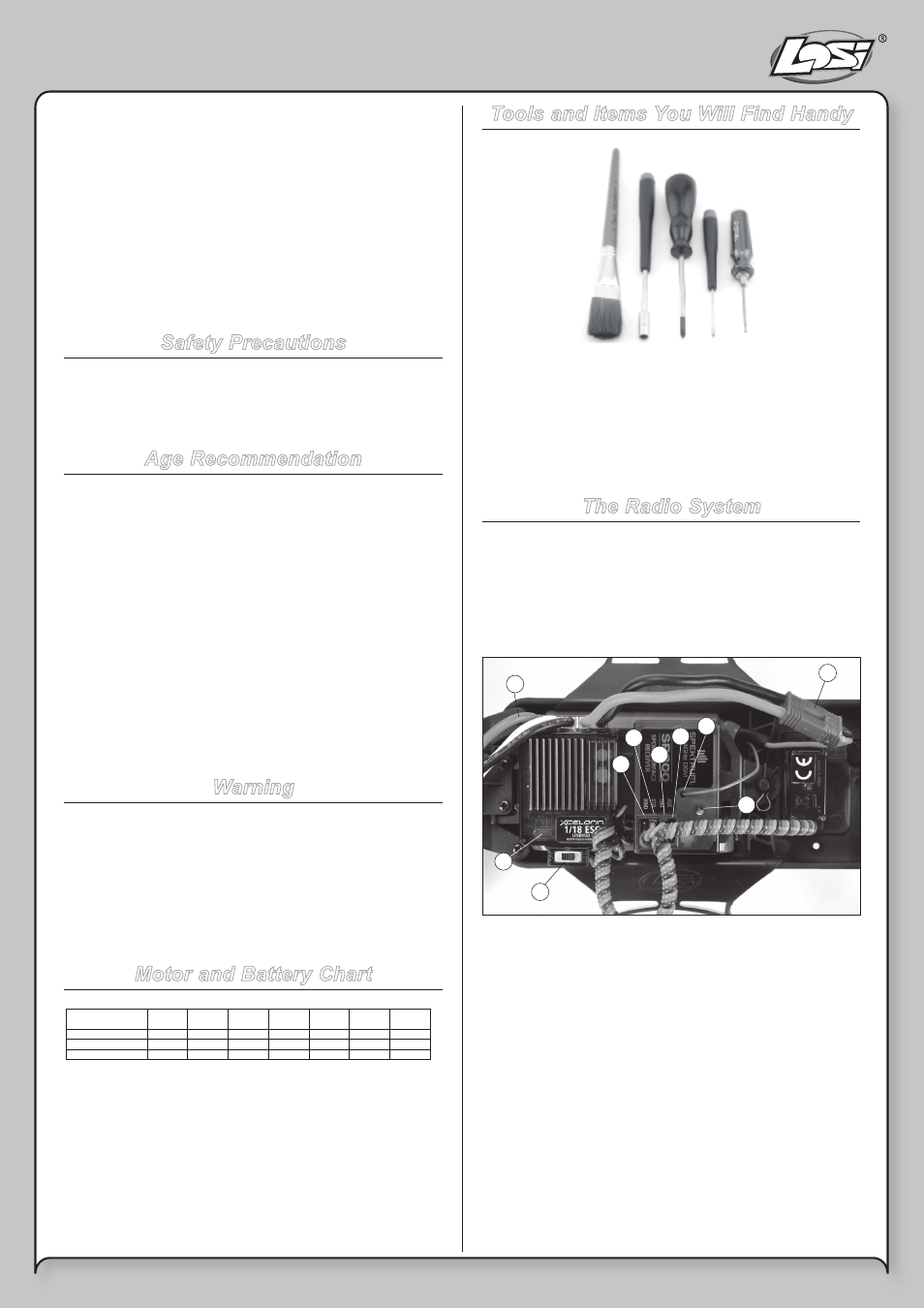

7 - EN
AlwAyS:
• Turn on the transmitter before the vehicle
• Use caution when running your vehicle near people
• Turn both the vehicle and transmitter “OFF” when done
• Check the battery condition of the transmitter before
running
NEVER:
• Operate the vehicle with low battery power
• Run the vehicle through water or wet grass
• Use chemicals to clean the chassis
• Run the vehicle without a gear cover
Safety Precautions
Losi and Horizon Hobby shall not be liable for any loss or
damages, whether direct, indirect, special, incidental, or
consequential, arising from the use, misuse, or abuse of this
product or any product required to operate it.
Age Recommendation
Not for children under 14 years. This is not a toy.
• This model is controlled by a radio signal subject to
interference from many sources outside your control.
This interference may cause momentary loss of control
so it is advisable to always keep some distance in all
directions around your model as a safety margin to
avoid collisions.
• Always operate your model in an open area away from
cars, traffic and people.
• Avoid running your model in the street where damage
can occur.
• Never run your Mini SCT with low transmitter batteries.
• Carefully follow the directions and warnings for this and
any optional support equipment.
• Keep all chemicals, small parts and anything electrical
out of the reach of children.
Warning
This model may only be powered by the stock 6-cell 7.2-
volt NiMH battery pack (LOSB1212), a 2-cell 7.4-volt LiPo
battery pack (LOSB9826) or 3-cell 11.1-volt LiPo battery pack
(LOSB9827). Please consult the Motor/Battery Chart below
for suggested motor/battery combos. The use of higher
voltage battery packs will cause ESC damage and void any
warranty. Consult your local hobby dealer or check www.losi.
com.
Motor and Battery Chart
7.2V NiMH (LOSB1212)
7.4V LiPo (LOSB9826)
11.1V LiPo (LOSB9827)
4100
(LOSB9458)
x
x
x
4500
(LOSB6457)
x
x
x
5000
(LOSB9459)
x
x
x
6000
(LOSB9460)
x
x
8200
(LOSB9462)
x
x
7400
(LOSB9461)
x
x
9400
(LOSB9463)
x
x
Tools and Items You Will Find Handy
• Soft bristle brush for cleaning
• 5.5mm nut driver for the wheel nuts
• #0 or #1 Phillips screwdriver
• LOSA99100 .050-inch Hex Wrench
Note: Use only Losi tools or other high-quality tools. Use of
inexpensive tools can cause damage to the small screws and
parts used on this type of model.
The Radio System
The following is an overview of the various functions and
adjustments found on your Losi Mini SCT radio system.
Since the Mini SCT operates on a radio signal, it is important
for you to read and understand these functions before driving
the model.
thE REcEiVER
2
1
10
9
3
4
5
6
7
8
1. Receiver/ESC Power Lead: Connects to the battery lead
for power
2. Servo Port/Plug: Where the steering servo plugs in (note
polarity on case)
3. Bind port: Used to bind the receiver to the transmitter
4. Indicator Light: Indicates the operation status of the
receiver
5. On/Off Switch: Controls Power to the Receiver/ESC
6. Setup Button: Enters ESC into setup mode
7. Battery Leads: Connects the battery to the ESC
8. Motor Lead: Connects the ESC to the motor
9. Antenna Wire: Receives the radio signal from your
transmitter
10. Aux. Port
