Slide the battery access panel opposite the hand strap back and
remove the cover. Remove hex starter shaft from the back side of the
cover (fig. 5B) and press the O-ringed end into the drive cup. Slide a
charged 7.2-volt 6-cell “stick pack” (not included) into the Spin-Start and
plug it in. Note that the plug is made such that it can only be plugged
in one way. Carefully tuck the plug wires under the battery access panel
and slide shut.
Turn on the transmitter and check for proper voltage (fig. 7A). Slide the
switch on the side of the radio box to the “ON” position. With the front
tires off the ground (fig. 7B), turn the steering wheel on the transmitter
from left to right. The wheels should turn smoothly and with ease. Also
operate the throttle and brake (fig. 7C), checking for quick, smooth
operation. Do not try to operate your truck if any of the servos or any
part of the radio is not operating correctly. If the servos operate slowly,
the batteries are low and must be replaced (if using alkaline batteries)
or recharged. Never try to operate your model if either the transmitter
or receiver batteries are low.
Prepare the glow plug ignitor by first removing the
cover from the ignitor. Insert a C-size battery into
the ignitor, noting the polarity molded into the case.
Replace the cover to complete the preparation.

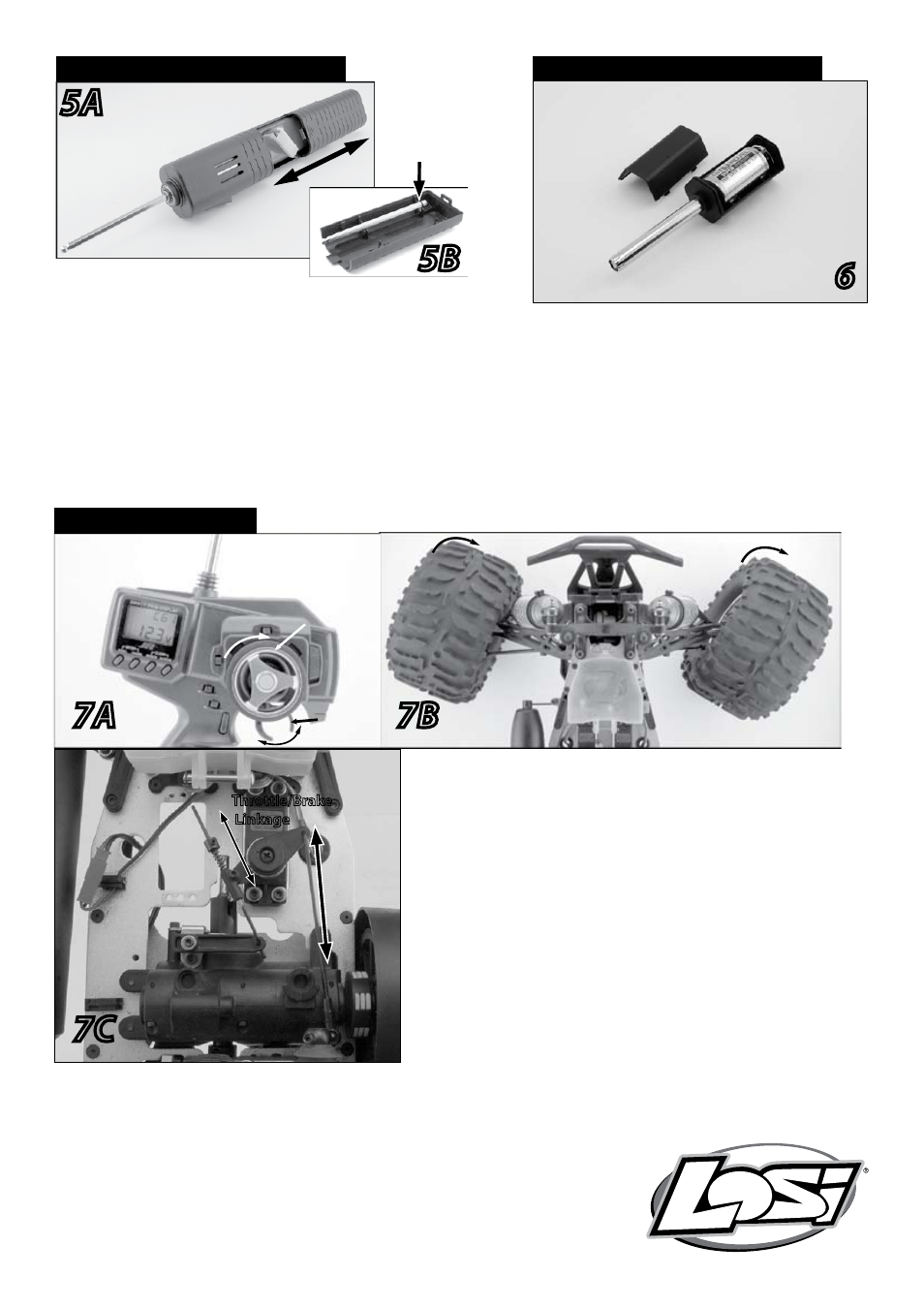

5A
5B
Operations Check
7A 7B
7C
Spin-Start Battery Installation
6
Glow Plug Ignitor Battery
