ENGINE INSTALLATION
(Continued)
3 9

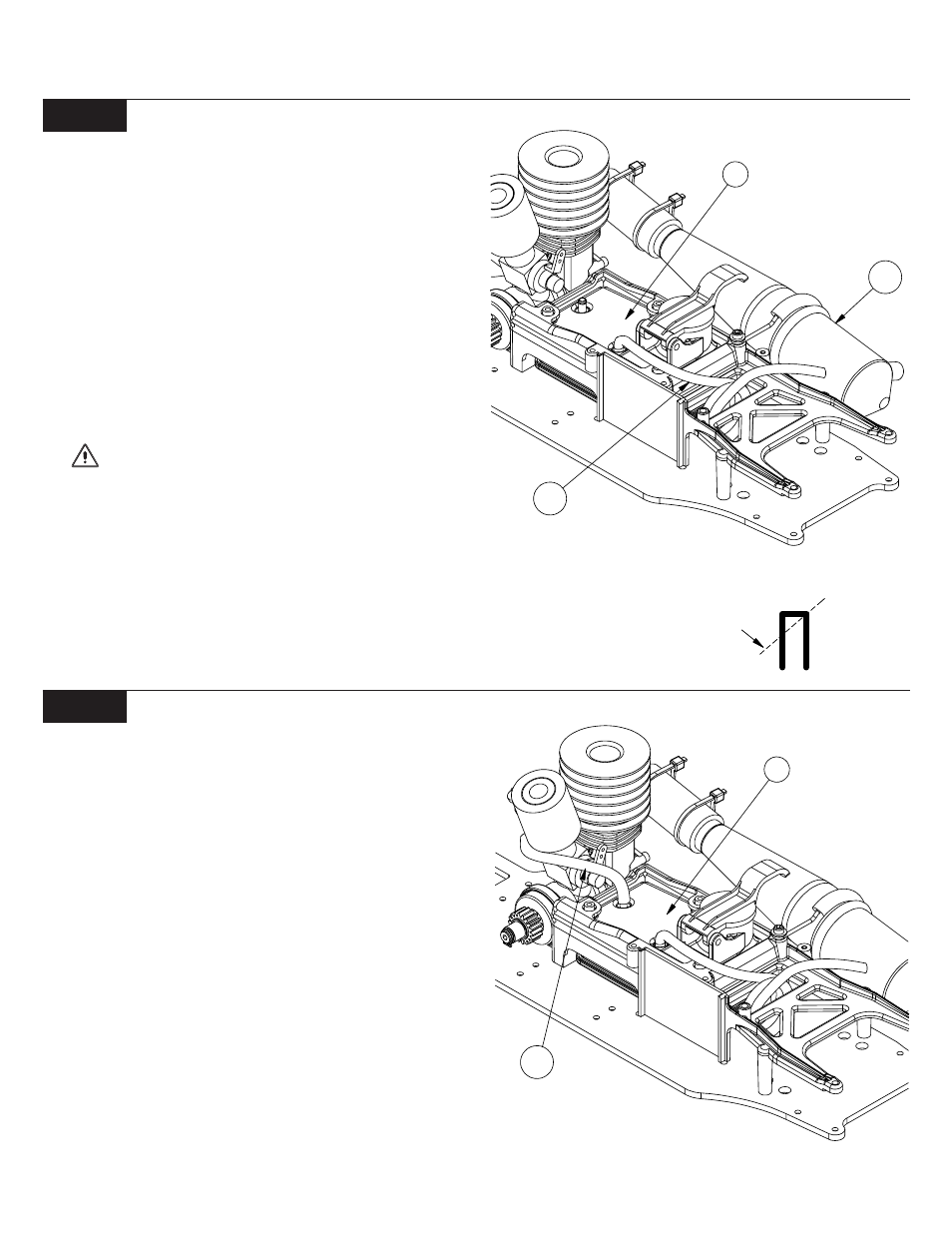

Figure 88
Step 36. Cut an 11" (280mm) length of fuel tubing (176) from the piece
supplied.
Step 37. Cut one end of the 11" piece of tubing at a 45 o angle as shown
in Figure 88A. Install the uncut side of the tubing to the forward
fitting on the top of the fuel tank (30).
Step 38. Wind the tubing into two small loops and insert them into the
rectangular slot in the chassis brace (29) as shown. Insert the cut end
of the tubing into the inside (small) hole in the tuned pipe (176). This
fuel line will serve as the fuel tank pressure line.
IMPORTANT NOTE: Make sure that the cut section of fuel
tubing is inserted all the way into the tuned pipe.
Figure 89
Figure 88A
Figure 88
Figure 89
176
175
30
176
30
Step 41. Attach one end of the fuel tubing (176) to the rear fitting on
the top of the fuel tank (30), and attach the other end to the fitting on
the carburetor. This will be your fuel line.
CUT
