BAG D (Continued)
2 4

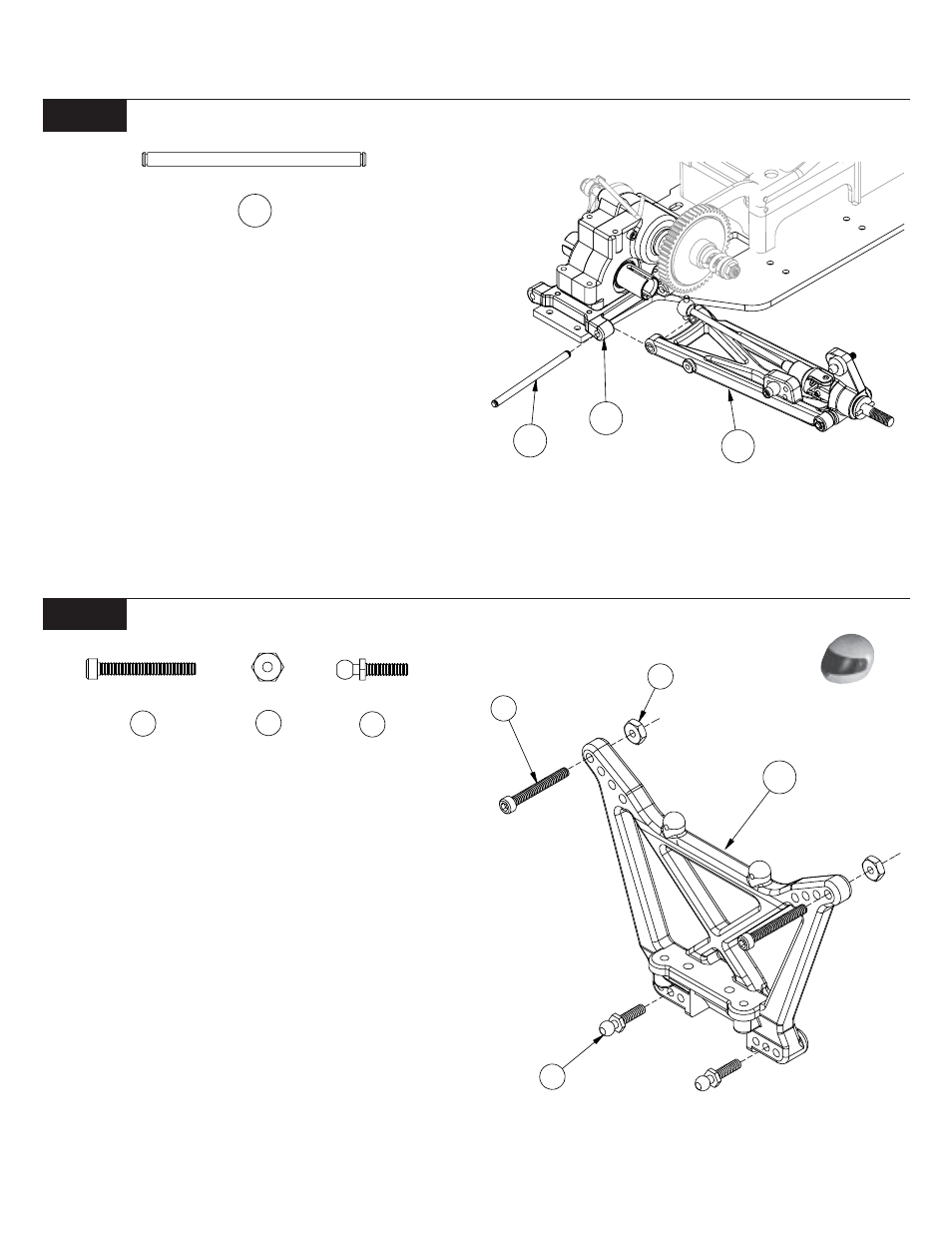

Step 17. Insert two 4-40 x 7/8" cap-head screws (33), one on each
side, through the outer holes in the top of the rear shock tower (123)
from the front side. Secure the screws (33) to the rear shock tower
(123) by threading a 4-40 nut (35) over each screw (33) and tighten-
ing..
Tip: Use the included Team Losi wheel wrench/nut-driver to secure
the 4-40 nuts.
Step 18. Thread a 3/8" ball stud (38) into the center hole on each side
of the shock tower (123).
Figure 57
Figure 57
Figure 56
Step 15. Position the right rear arm (118) inside the rear pivot block
(104) and line up the holes in the arm with the holes in the pivot. Slide
a rear inner hinge pin (122) through the pivot block (104) and rear arm
(118) all the way in until the pin (122) rests against the set screw in the
front of the pivot block (104).
Step 16. Repeat step 15 for the left rear arm (119).
Figure 56
122
33 35 38
104
122
118
