Page 7
7
2
Connecting the Hardware
2.1 Ports and Antennas

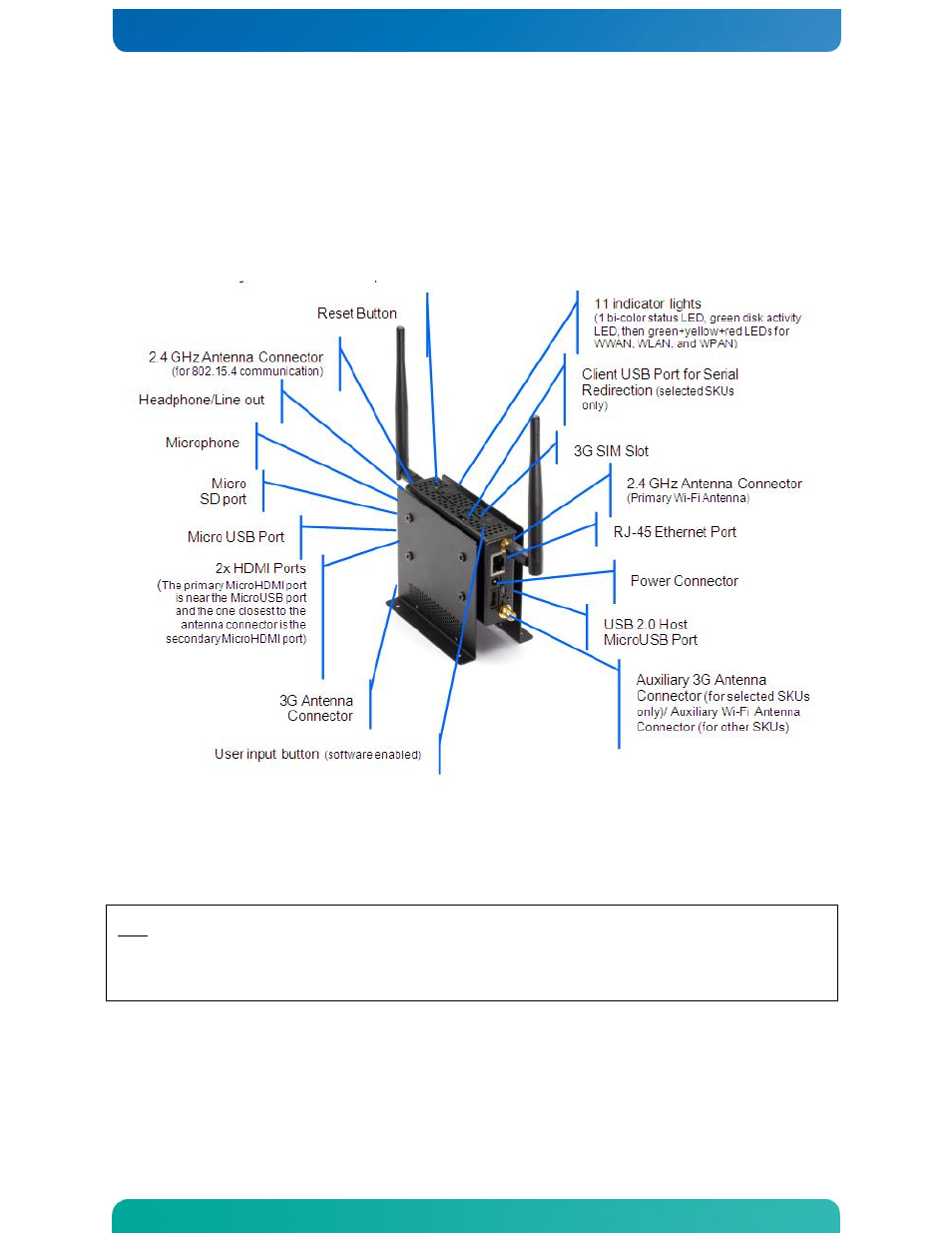

Refer to the figure below for locations of ports and where to attach the antennas:
Note: The MicroUSB port closest to the lower antenna is a USB host port. The other Micro-USB port can be
either a host or client port, depending on BIOS settings (and the configuration of the S3 switch inside the
Kontron/Intel® Atom™ based Reference Platform). These ports have static configurations and can provide 5Vdc
power. DO NOT PLUG USB OTG (On-The-Go) DEVICES INTO THESE MICROUSB PORTS.
