Page 35
MSM800SEV/SEL
/ Connectors & Jumpers
www.kontron.com
33

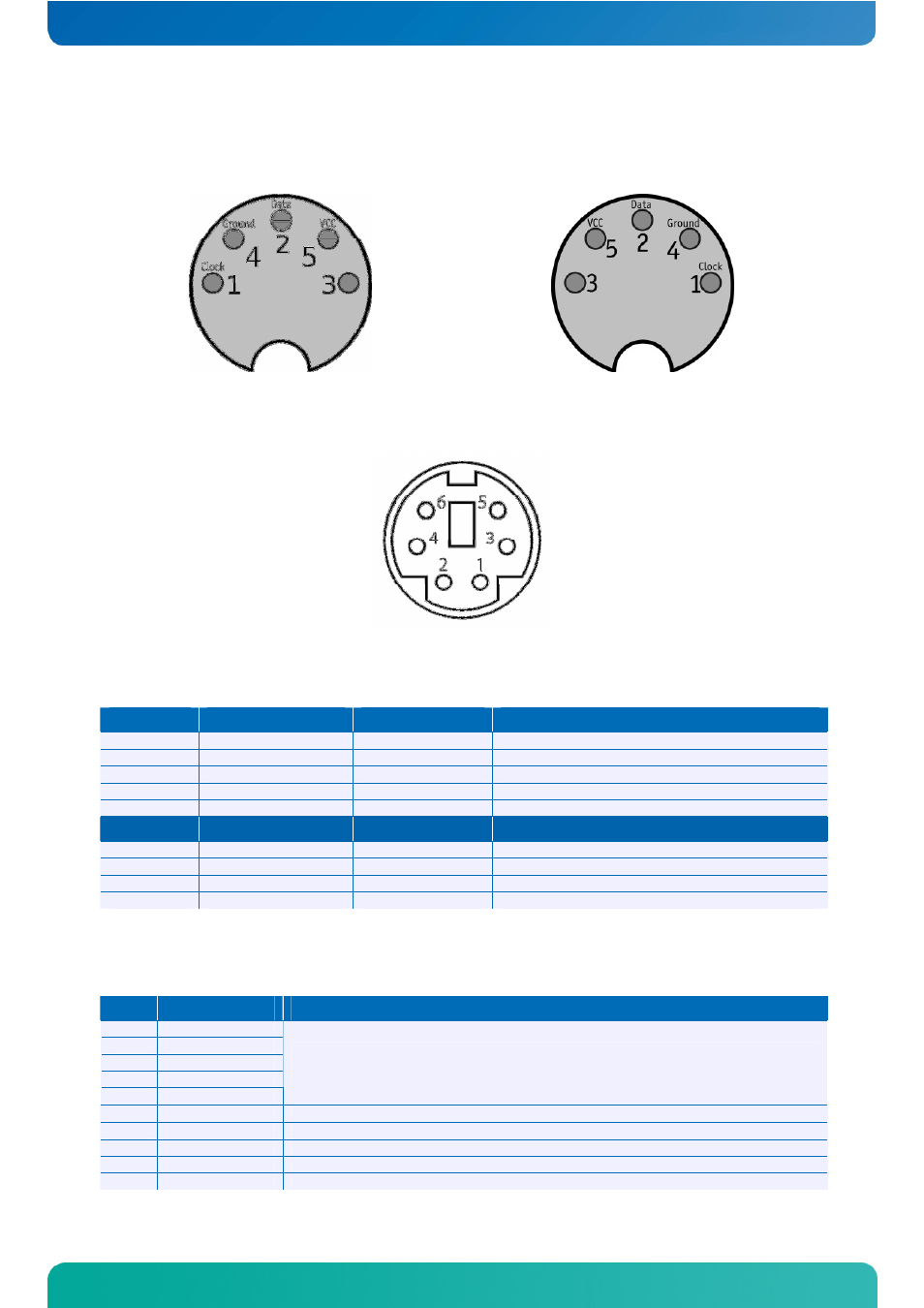

The Utility connector must be wired to a standard AT-female connector:
Front side AT-Keyboard (female)
Solder side AT-Keyboard (female)
Front side PS/2 (female)
Connector and Adapter
Signal
Mini-DIN PS/2 (6 PC)
DIN 41524 (5 PC)
Remarks
Shield
Shield
Shield
KEYBOARD
DATA
1
2
GND
3
4
VCC (+5V)
4
5
CLK
5
1
Signal
Mini-DIN PS/2 (6 PC)
VCC (+5V)
4
MOUSE
DATA
1
GND
3
CLK
5
5.1.9
X33
10/100 BASE-T Interface Connector
Pin
Signal
Remarks
1
TX-
2
TX+
3
RX-
4
RX+
5
Activity LED
The LAN transformer is onboard starting with board version:
SEV/SEL V2.1
6
BAT Input 3.0-3.6V
External lithium battery (see also Section 6.4.1)
7
GND
8
VCC 3.3V
9
Speed LED
10
Link LED
