KTQ67/Flex -Medical Users Guide
KTD-N0849-D Page 27
5 IO-Area Connectors
5.1 Display connectors (IO Area)
The KTQ67/Flex-Medical has two DVI connectors (stacked) and optionally one on-board LVDS panel
interface. Both DVI connectors support single channel digital signals in a DVI-I type connector. Only the
lower DVI connector support also analogue signals. Two graphic pipes are supported; meaning that up
to two independent displays can be implemented using any two of the above mentioned graphic ports.

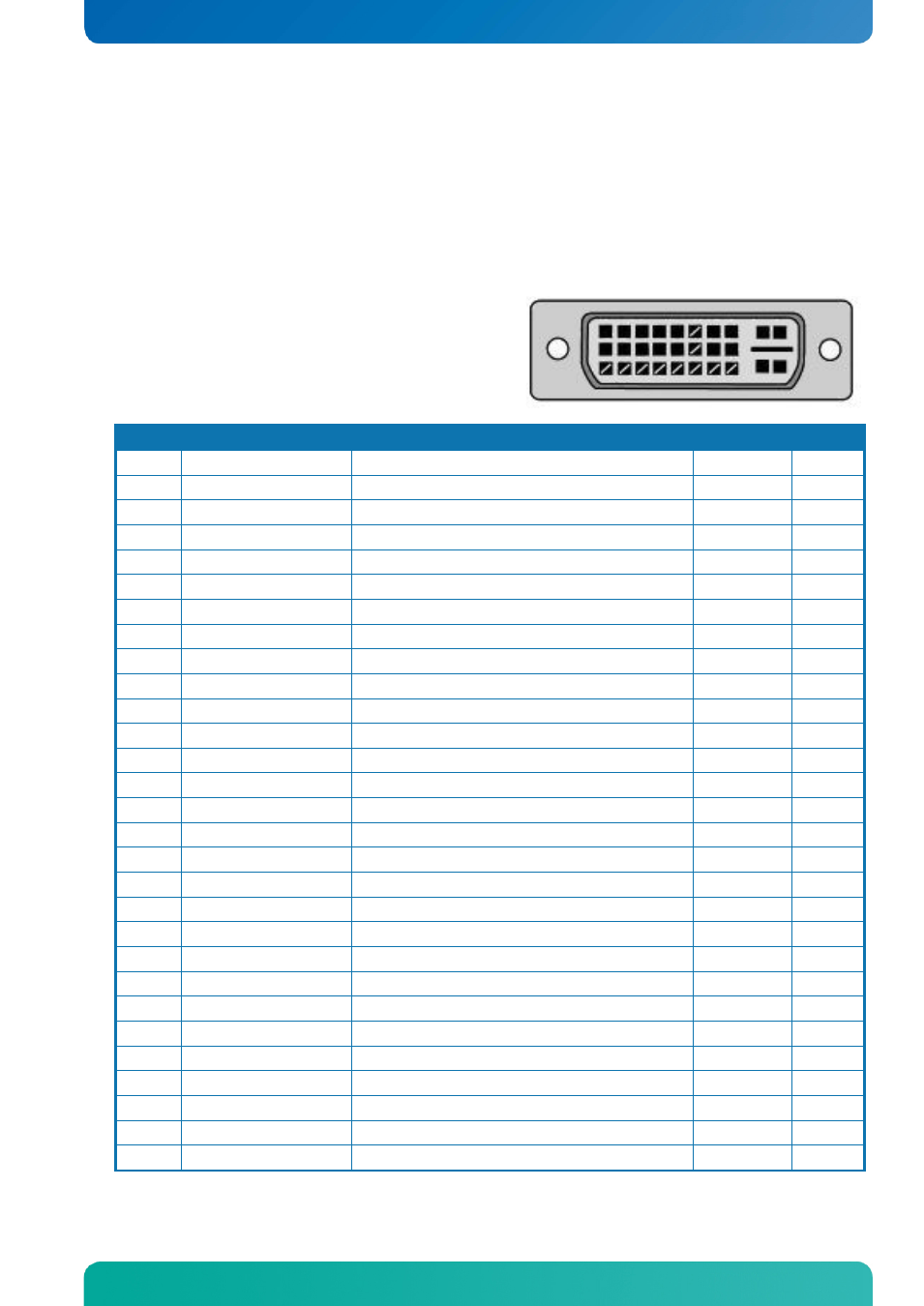

5.1.1 DVI (lower) connector – DVI-I
Pin No. Signal Description Type Pull Up
1 TMDS Data 2- Digital Red – (Link 1) LVDS OUT
2 TMDS Data 2+ Digital Red + (Link 1) LVDS OUT
3 TMDS Data 2/4 Shield PWR
4 N.C. -
5 N.C. -
6 DDC Clock DDC Clock IO 2K2
7 DDC Data DDC Data IO 2K2
8 VSYNC AI
9 TMDS Data 1- Digital Green – (Link 1) LVDS OUT
10 TMDS Data 1+ Digital Green + (Link 1) LVDS OUT
11 TMDS Data 1/3 Shield PWR
12 N.C. -
13 N.C. -
14 +5V (55mA) Power for monitor when in standby PWR
15 GND PWR
16 Hot Plug Detect Hot Plug Detect I
17 TMDS Data 0- Digital Blue – (Link 1) / Digital sync LVDS OUT
18 TMDS Data 0+ Digital Blue + (Link 1) / Digital sync LVDS OUT
19 TMDS Data 0/5 Shield PWR
20 N.C. -
21 N.C. -
22 TMDS Clock Shield PWR
23 TMDS Clock+ Digital clock + (Link 1) LVDS OUT
24 TMDS Clock- Digital clock - (Link 1) LVDS OUT
C1 RED AI
C2 GREEN AI
C3 BLUE AI
C4 HSYNC AI
C5 GND PWR
IO-Area Connectors
The DVI-I connector is based on stacked DVI-I
connector type Kycon KVI42X-DA29S-S-A4N-W or
similar. The lower connector is supporting both
analogue and digital (single channel) signals.
