2 system overview, System overview, System specification – Kontron KTQ67-FLEX MED User Manual
Page 14
KTQ67/Flex -Medical Users Guide
KTD-N0849-D Page 14
2.2 System overview

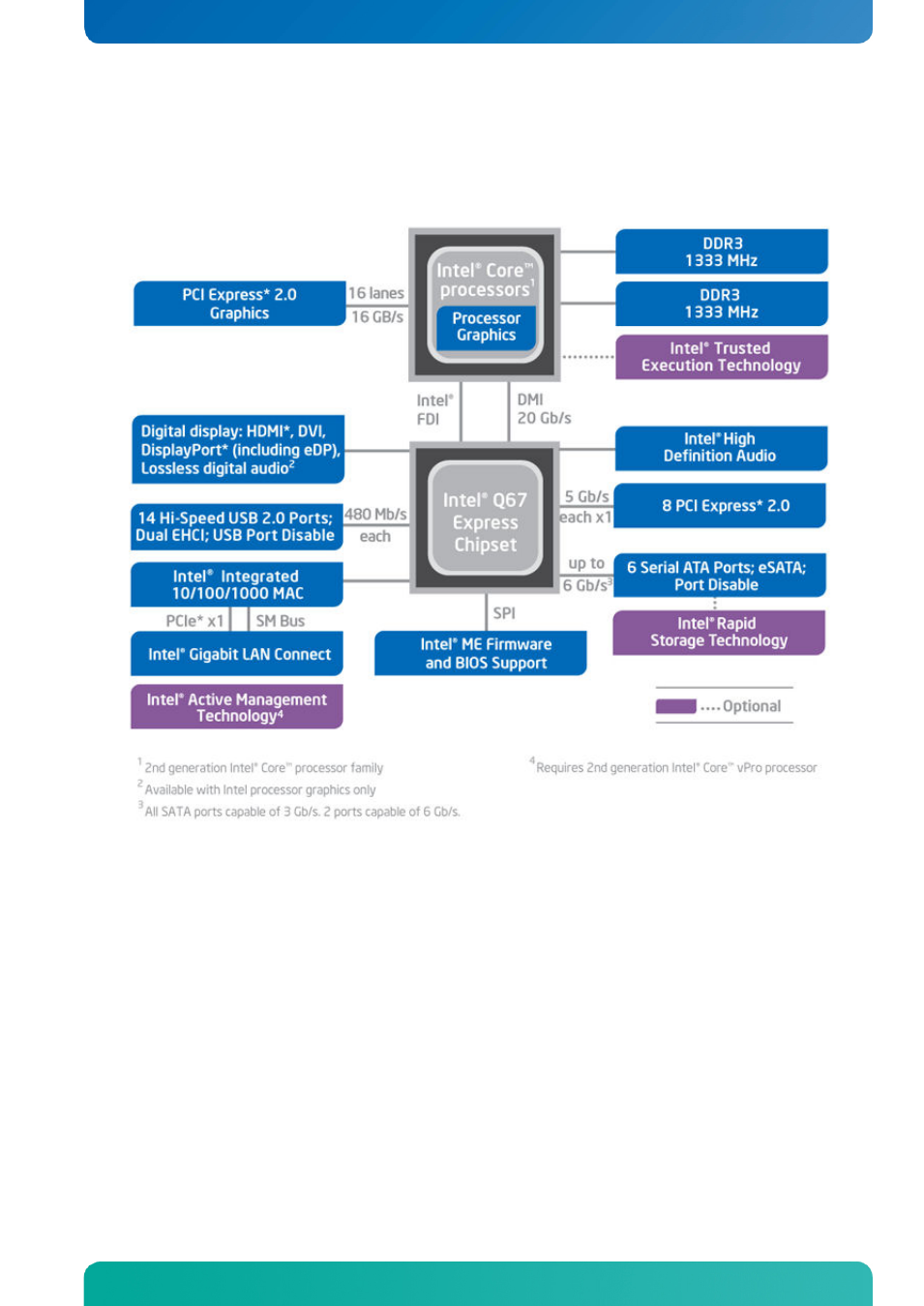

The block diagram below shows the architecture and main components of the KTQ67. The key
component on the board is the Intel
®
Q67 (Cougar Point) Mobile Express Chipset.
More detailed block diagram on next page.
System Specification
