14 www.kontron.com
User Guide
CP6005(X)-SA
1.3.2 Front Panel

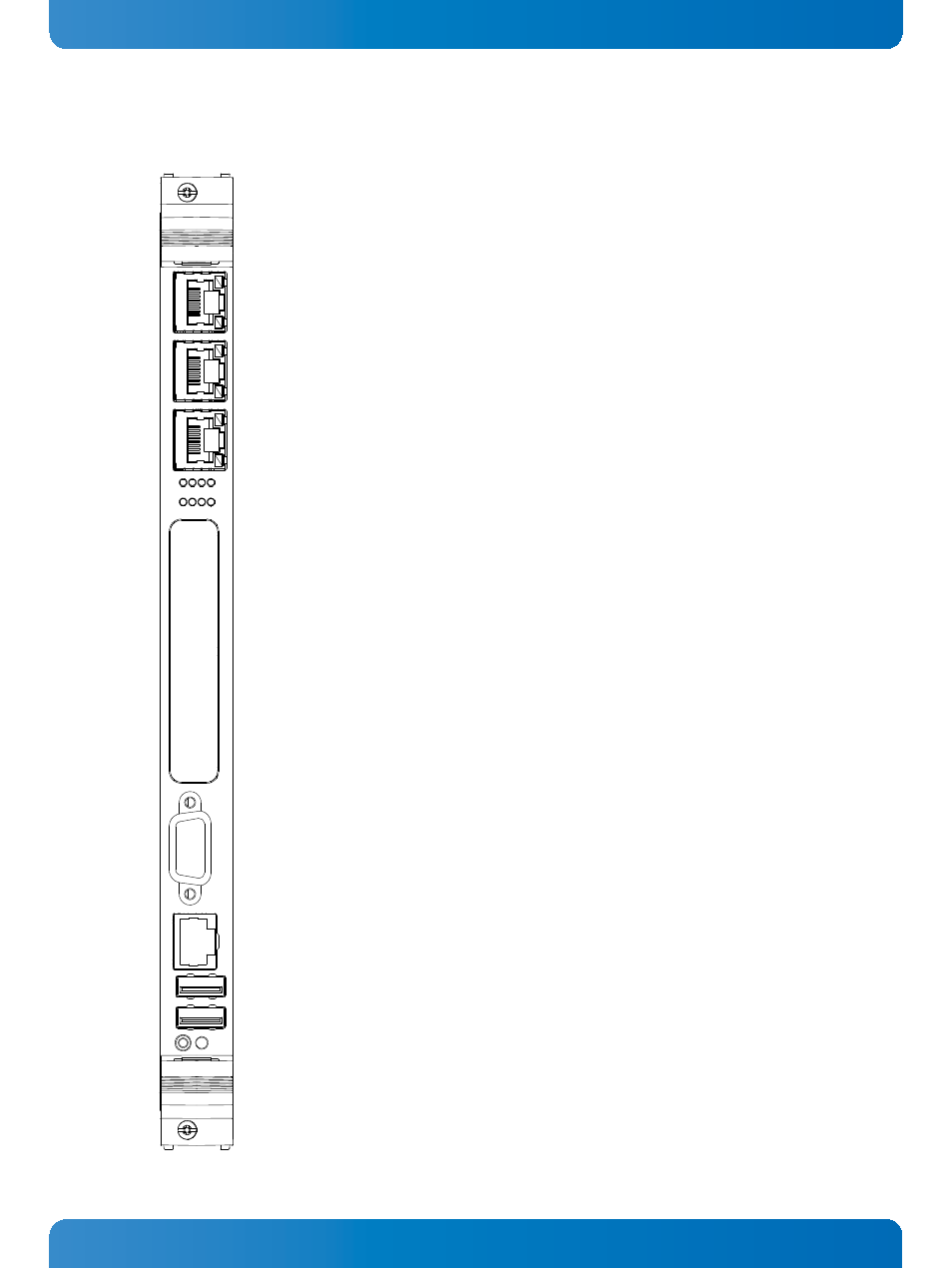

Figure 2: 4 HP CP6005(X)-SA Front Panel
SP
ACT
GbE E
SP
ACT
GbE B
ACT
GbE A
TH
0
WD
1
I0
2
I1
3
PMC/XMC
VGA
COM
USB 2.0
RST HS
IPMI LEDs
I0/I1 (red/green): Indicate the software status of the IPMI controller
System Status LEDs
HS (blue): Hot Swap Status
TH (red/green): Temperature Status
WD (green): Watchdog Status
General Purpose LEDs
LED3–0 (red/green/amber): General Purpose / POST Code
Note: If the General Purpose LEDs 3–0 are lit red during boot-up,
a failure is indicated before the uEFI BIOS has started.
Integral Ethernet LEDs
ACT (green): Ethernet Link/Activity
SPEED (orange): 1000BASE-T Ethernet Speed
SPEED (green): 100BASE-TX Ethernet Speed
SPEED (off) + ACT (on): 10BASE-T Ethernet Speed
