CP346 Installation
ID 27253, Rev. 03 © 2005 Kontron Modular Computers GmbH Page 3 - 7
P R E L I M I N A R Y
3.4.3 Rear I/O Module
The rear I/O-capable variant of the CP346 is provided with a J2 connector for the transmission
of the serial I/O via the CompactPCI backplane to a rear I/O module. A schematic view of the
installation procedure is illustrated in the following figure.

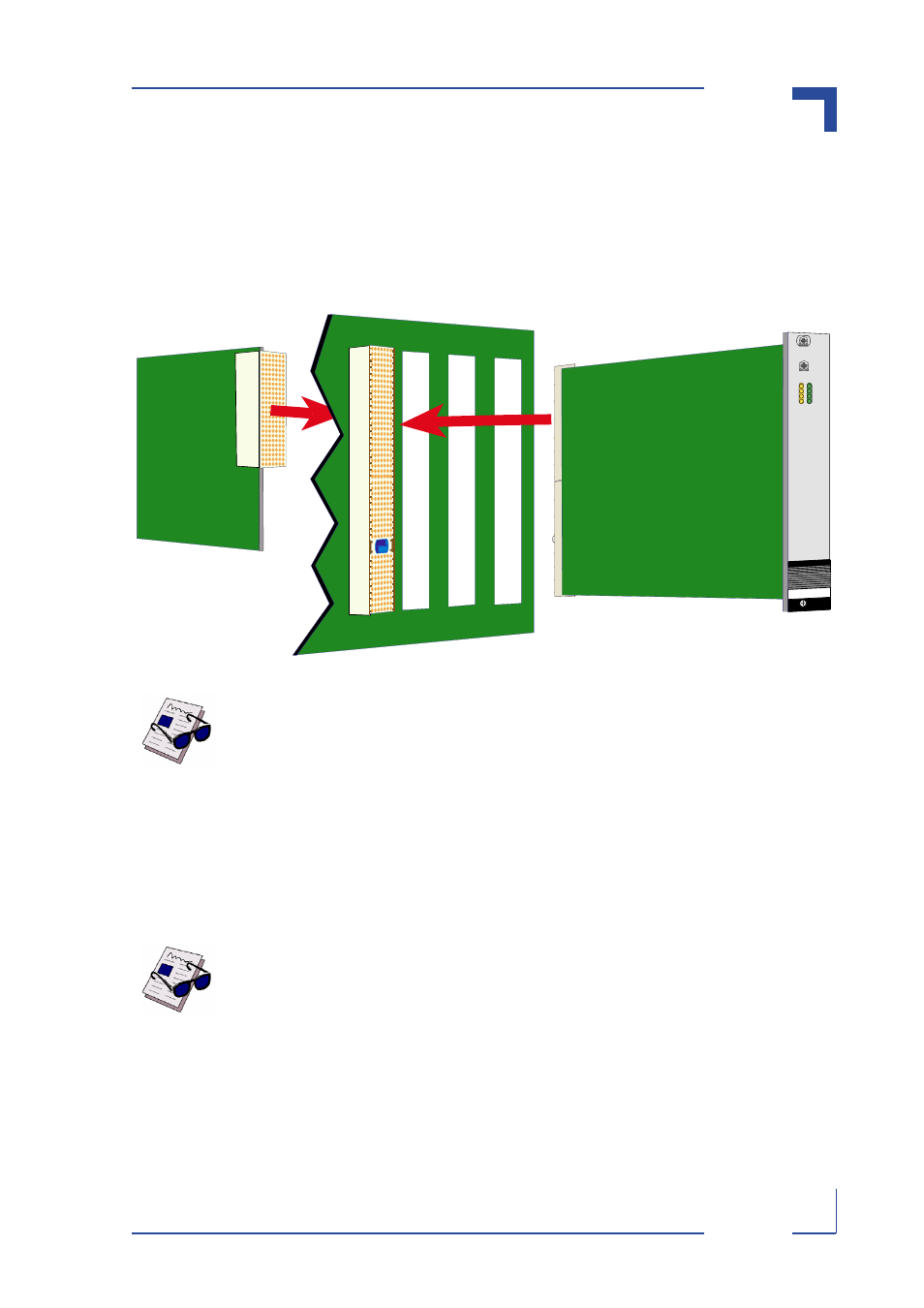

Figure 3-2: Installation of Mainboard and Rear I/O Module
3.5 Software Installation
Drivers for Windows® 2000, Windows® XP, Windows® XP Embedded, Linux® and VxWorks®
are available for the CP346. For the installation of any required driver, please refer to the driver
documentation contained in the software kit.
Note...
The rear I/O-capable CP346 board variant and the corresponding rear
I/O module can only be installed in a backplane slot provided with a rear
I/O-capable P2 connector.
Note...
Before installing the driver software it is recommended that all boards
required for the application be installed. Failure to do so may result in
improper operation of the system.
CP 346
Rx Tx
