Temperature Control
Use this control (right rotary knob) to regulate the
temperature of the air inside the passenger compartment.
The blue area of the scale indicates cooler temperatures
while the red area indicates warmer temperatures.
Manual Heating and Air Conditioning System — If
Equipped
The controls for the heating/air conditioning and venti-
lation system in this vehicle consist of a series of rotary
knobs. These comfort controls can be set to obtain desired
interior conditions.
The instrument panel features four airflow registers. Two
registers are located on the outer ends of the instrument
panel and two are located in the center of the instrument
panel. These registers can be closed to partially block
airflow, and they can be adjusted to direct airflow where
the occupant desires.

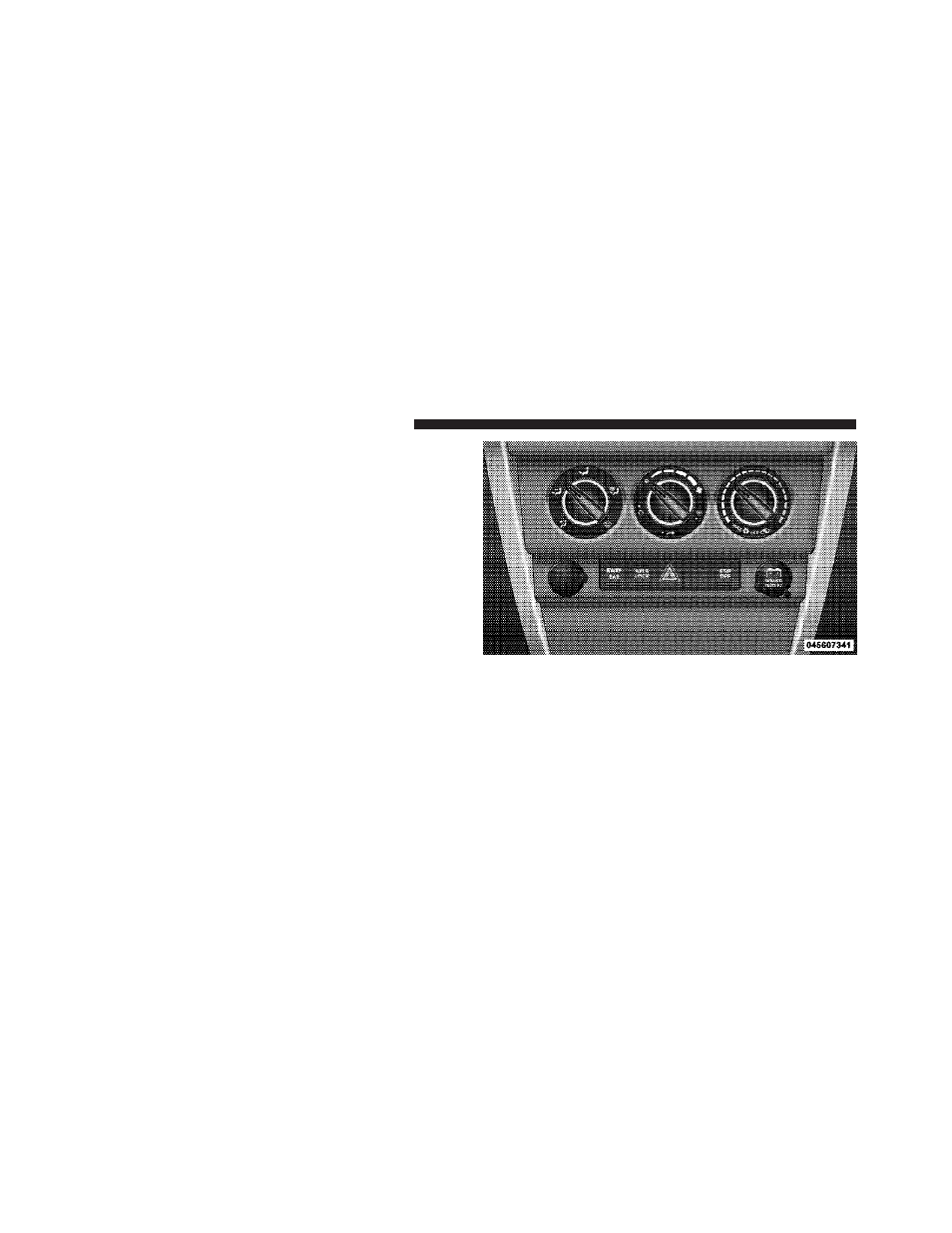

Climate Controls
264 UNDERSTANDING YOUR INSTRUMENT PANEL
