Jeep 2009 Wrangler Unlimited - Owner Manual - Manual (Page 193)

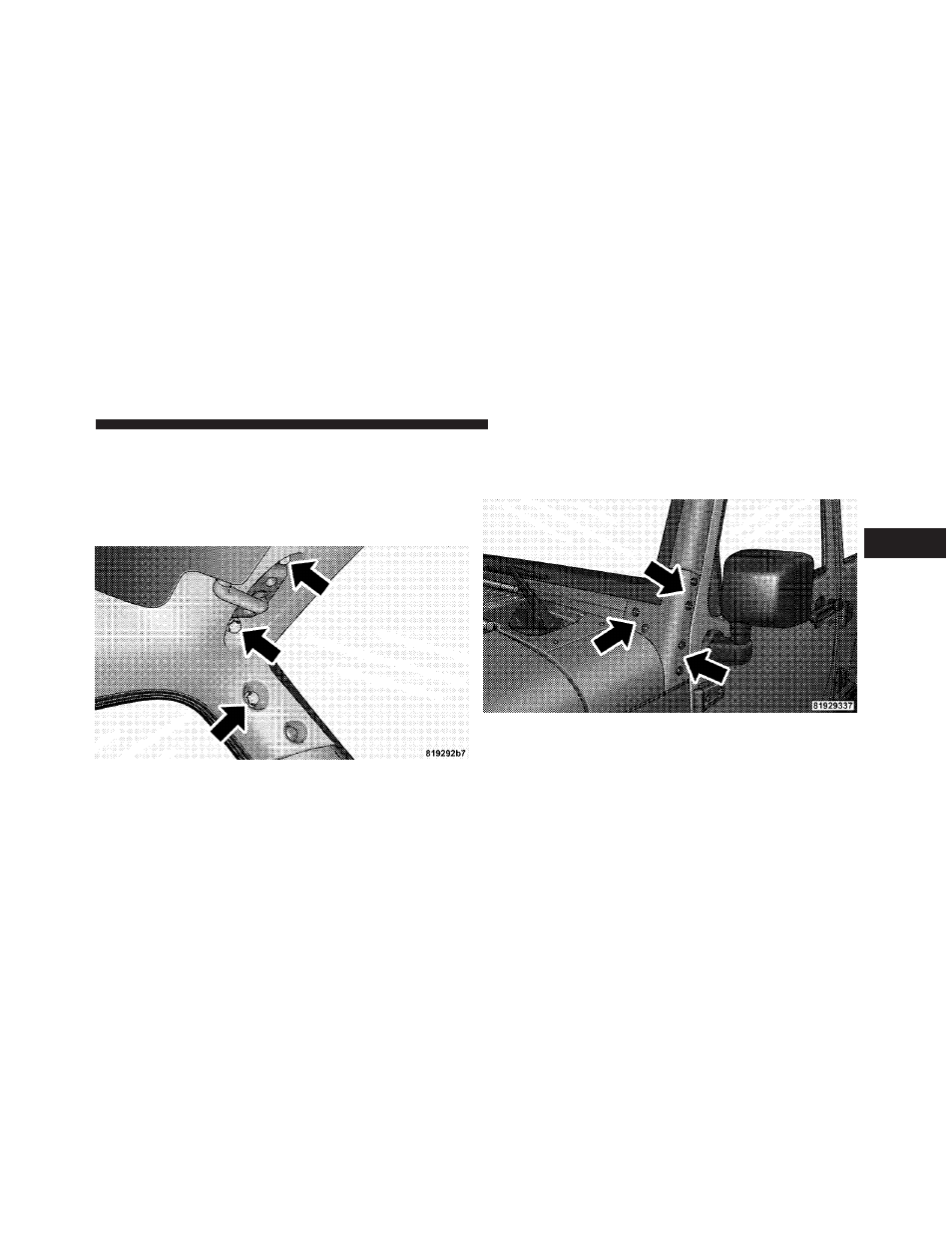

3. Attach the front of the side bar to the windshield
frame.
• Install the top two hex bolts (13 mm) first, then the
lower side hex bolt (13 mm). The lower side bolt will
not align until the top two bolts are installed.
4. Tighten all side bar attachment bolts.
5. Install the lower windshield plates with the six black
round-headed Torx
௡ head screws (using a #40 Torx௡ head
driver) on each side of the base of the windshield.
6. Reinstall the wiper arms.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191
