EFCO CORPORATION 6/2012 PART NO. Y554 5
Series 5500 Silicone Structural Glazed Curtain Wall Installation Instructions

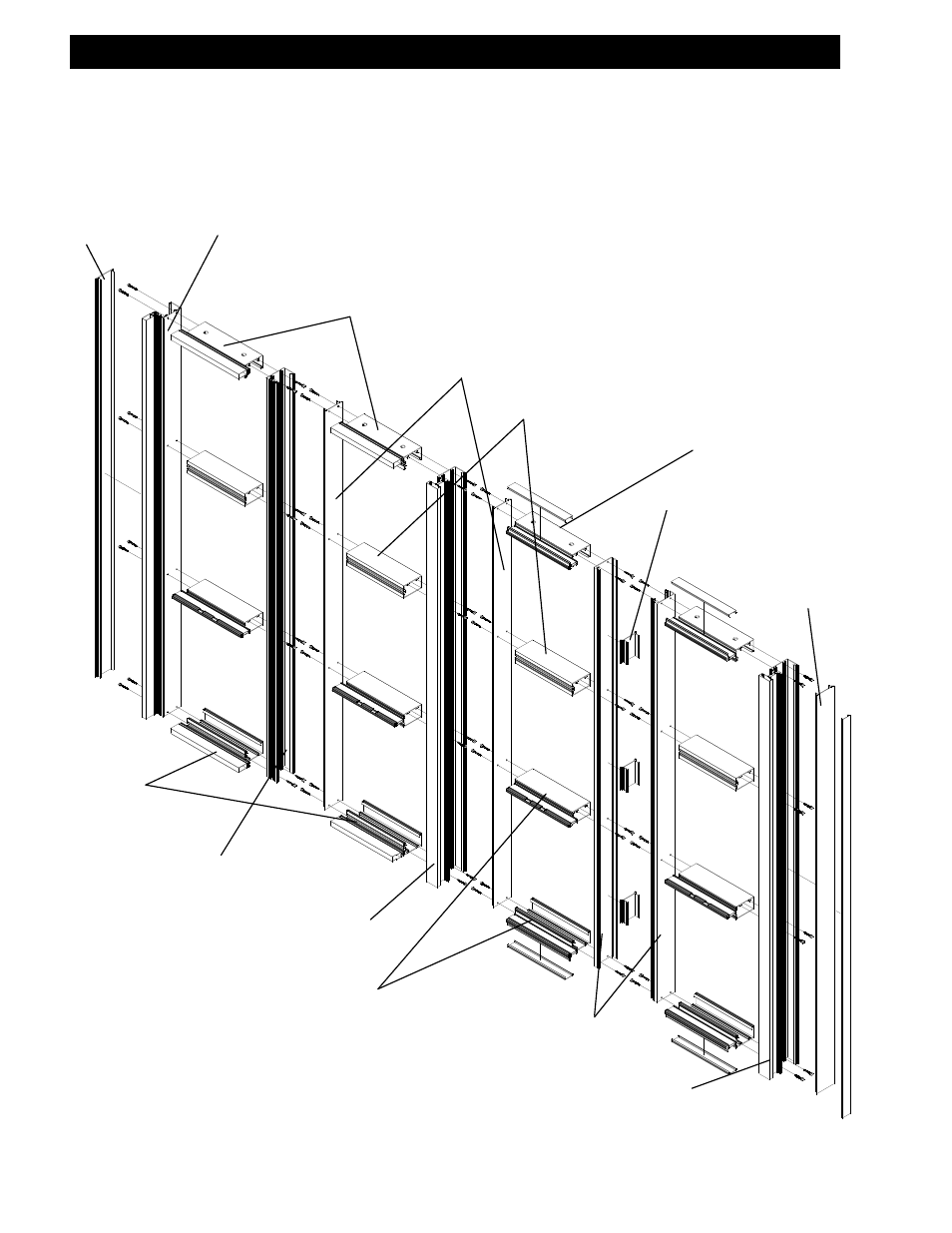

STEP #1 ASSEMBLE OUTSIDE GLAZED FRAME MEMBERS
Section II: Frame Unit Assembly & Frame Sealing
Note: Sealant or gasket must be applied to
the ends of each horizontal member before
assembly. (See enlargement pages 6-14.)
FRAME ASSEMBLY SCREWS 1/4” –14
x 1 1/2” HWSMS 18-8 Typical
INTERMEDIATE
SSG VERTICAL
SSG JAMB MULLION
WITH REVEAL
SSG HEADS
WITH REVEAL
SSG HORIZONTALS
SSG SILLS
WITH REVEAL
VERTICAL FILLERS
SSG EXPANSION
VERTICALS
MULLION CLIPS
OPTIONAL CAPTURED
VERTICAL
OPTIONAL CAPTURED
JAMB
OPTIONAL CAP-
TURED SILLS AND
HORIZONTALS
JAMB
FILLER
JAMB
FILLER
OPTIONAL CAP-
TURED HEADS
