EFCO CORPORATION 6/2012 PART NO. Y554
Series 5500 Silicone Structural Glazed Curtain Wall Installation Instructions
Section III: Typical Anchorage Methods
STEP #6 INSTALL FRAME COMPONENTS – BOLTED DEAD LOAD ANCHORS
For installations with multi-spans, follow applicable notes from Step 6. When the frame is properly
aligned and is level and plumb, match drill the slab through the anchor and install anchor bolts se-
curing the anchor to the building structure. Match drill the mullion through the set of holes in the
anchor.
NOTE: The holes must be a minimum of 1” from the back of the mullion in order to clear any steel
reinforcement located inside the system as may be required on a job specific basis.
Refer to the approved shop drawings for anchor bolt size, type, spacing, and embedment, as well
as anchor dimensions.
NOTE: For special instructions regarding wind load anchors see Step 7, page 25.

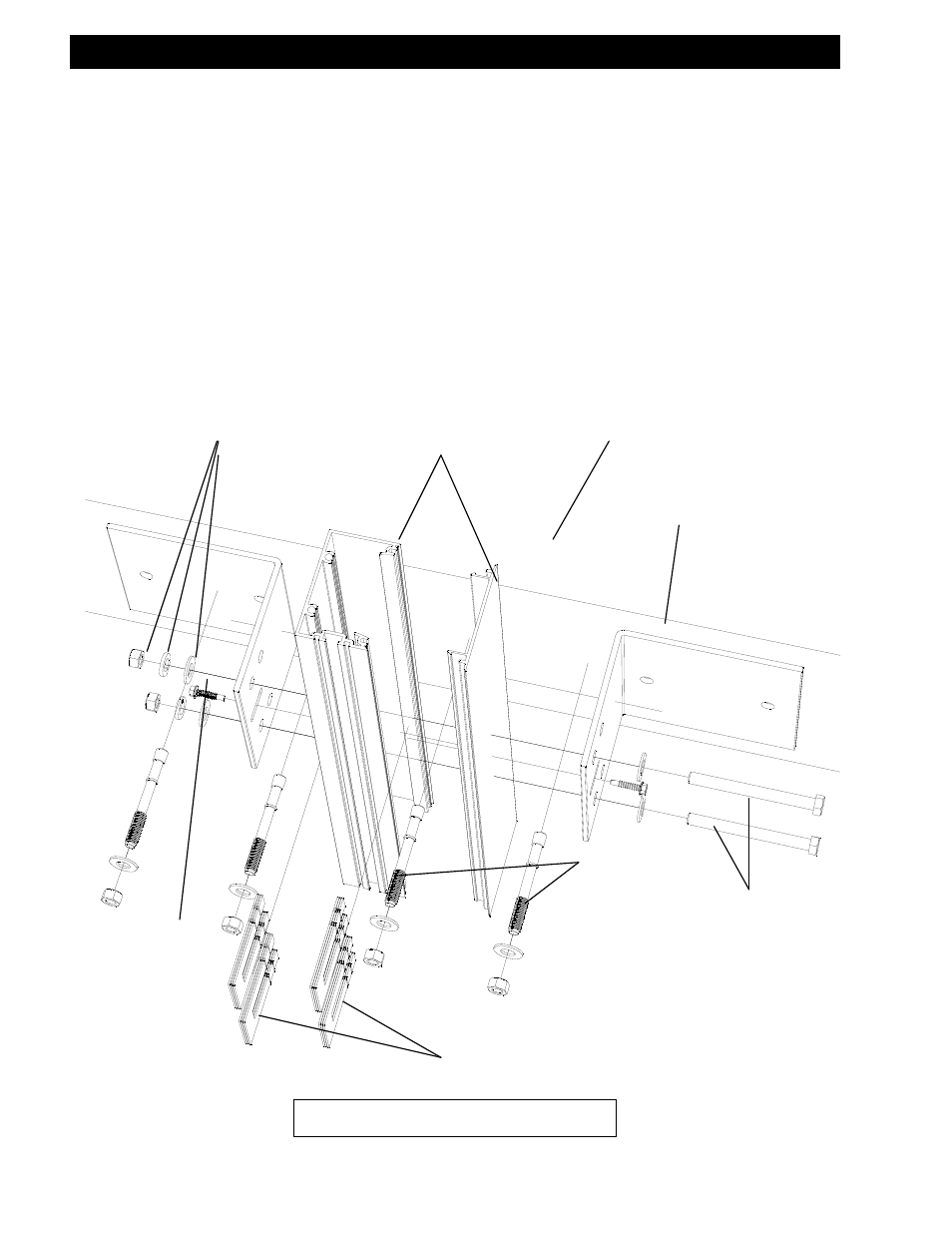

FRAME UNITS
HIGH IMPACT POLYSTYRENE
HORSESHOE SHIMS AT EACH BOLT
STEEL ANCHOR PER
SHOP DRAWINGS
TEMPORARY
ALIGNMENT
SCREW (#12 X
1” TEK SCREW)
BOLTS WITH
FLAT WASHERS
BOLTED DEAD LOAD ANCHORS
ANCHOR BOLTS
AS REQUIRED
FLAT AND SPRING
LOCK WASHERS
AND NUTS
BUILDING
STRUCTURE
