EFCO CORPORATION 6/2012 PART NO. Y554
Series 5500 Silicone Structural Glazed Curtain Wall Installation Instructions
STEP #3 INSTALL FRAME COMPONENTS
A. Repeating step 2, page 18, set each successive frame into the opening, snapping the verti-
cals and fillers at each frame, until all frames are installed up to the last frame at the op-
posite jamb.
B. Check frequently to ensure the installed framing is in the proper position with regard to
established benchmarks.
C. After securing the anchor bolts, snap-in head and sill fillers.
Section III: Typical Anchorage Methods
* NOTE: On long runs, check overall frame dimensions at every fifth opening to avoid
dimensional build-up. The commercial cut length tolerance is +/- 1/16”. It is critical
to check every fifth unit for location relative to established benchmarks.

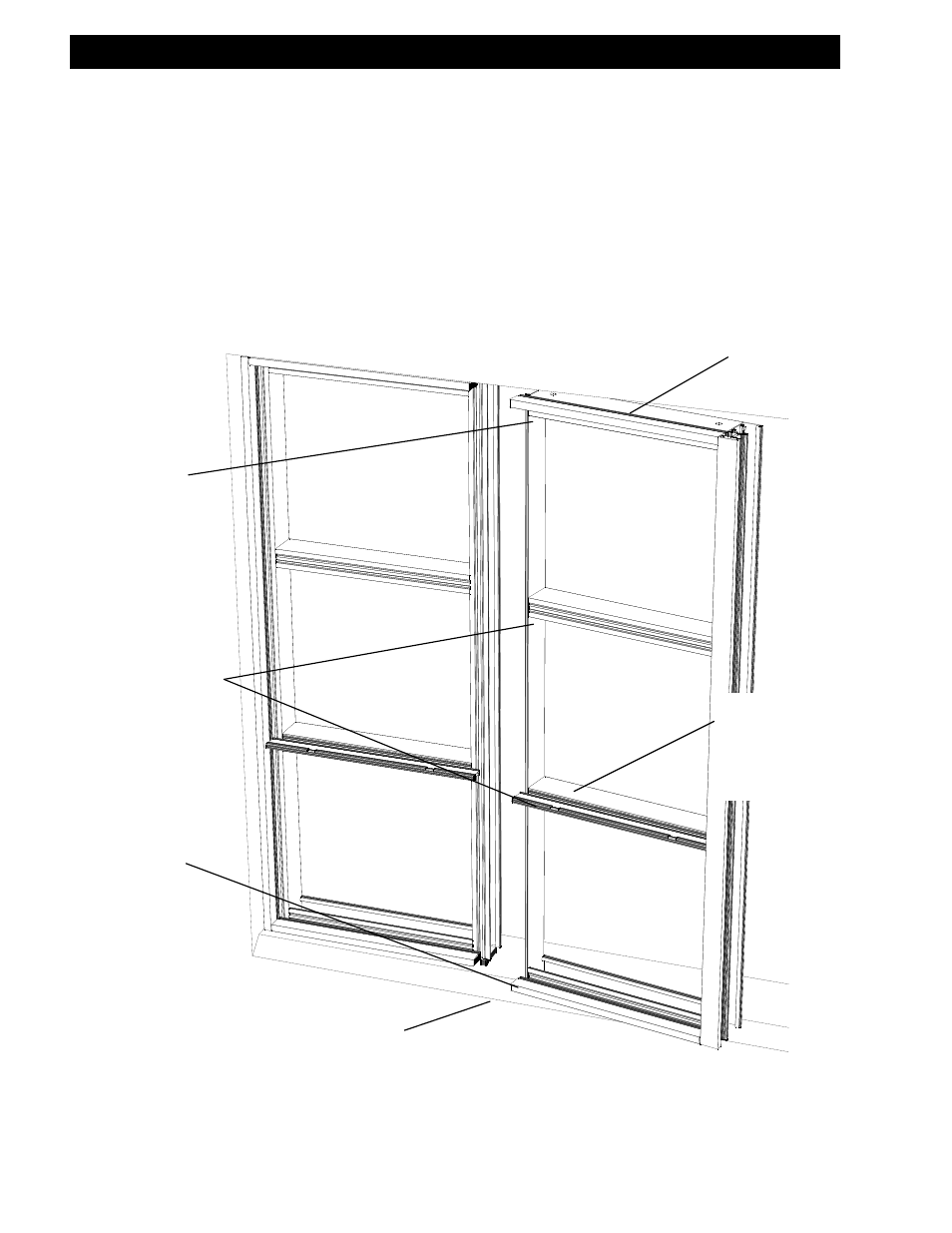

See Step 4, page
20 for special
sealant note for
intermediate
horizontals.
See Step 1,
page 26 for
special sealant
note for SSG
head and sills
used with SSG
verticals.
See Step 1,
page 26 for
special sealant
note for SSG
head and sills
used with SSG
verticals.
See Step 2, page 27
for special sealant
note for captured
horizontals used
with SSG verticals.
BUILDING ROUGH
OPENING
ASSEMBLED
FRAME
