Torque Module Installation and User Guide for Model 250 Dynamometers
C H A P T E R 2
Torque Cell Calibration
2-4
6 Click Next to continue.
The Span Calibration window will appear.
7 Install the calibration arm and weights. Refer to step 8 and
Figure 2-5 on page 2-5.

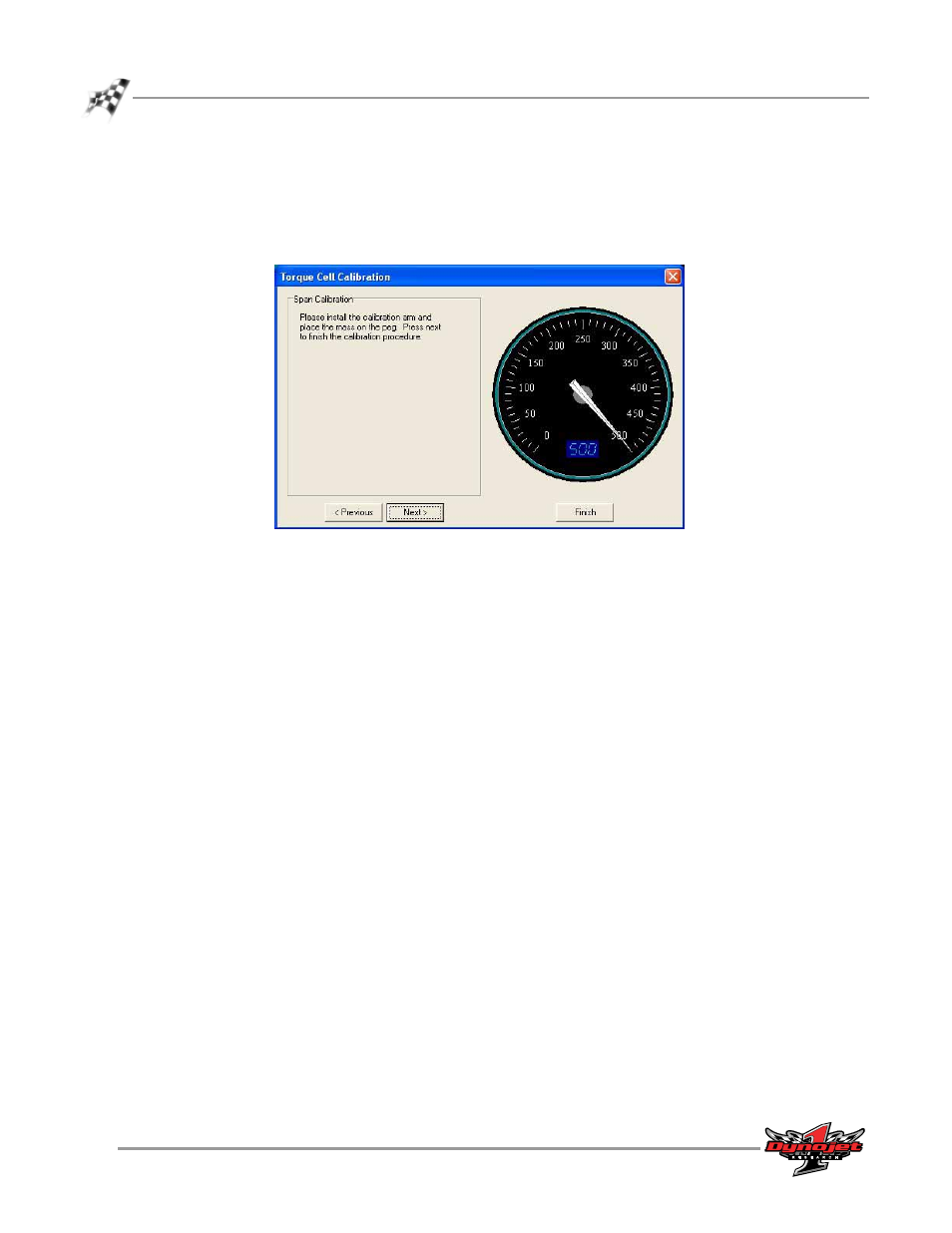

Figure 2-4: Span Calibration Window
