U S I N G T H E TO R Q U E M O D U L E
Torque Cell Calibration
Version 3 Torque Module Installation and User Guide for Model 250 Dynamometers
2-3
Once the Zero Calibration is complete, the Calibration Mass window will appear.
5 Enter the Torque Module calibration value. Refer to Figure 2-3.
Note: You must perform this step the first time you calibrate the load cell.
Or
If you are only performing a Zero Calibration, click Finish.

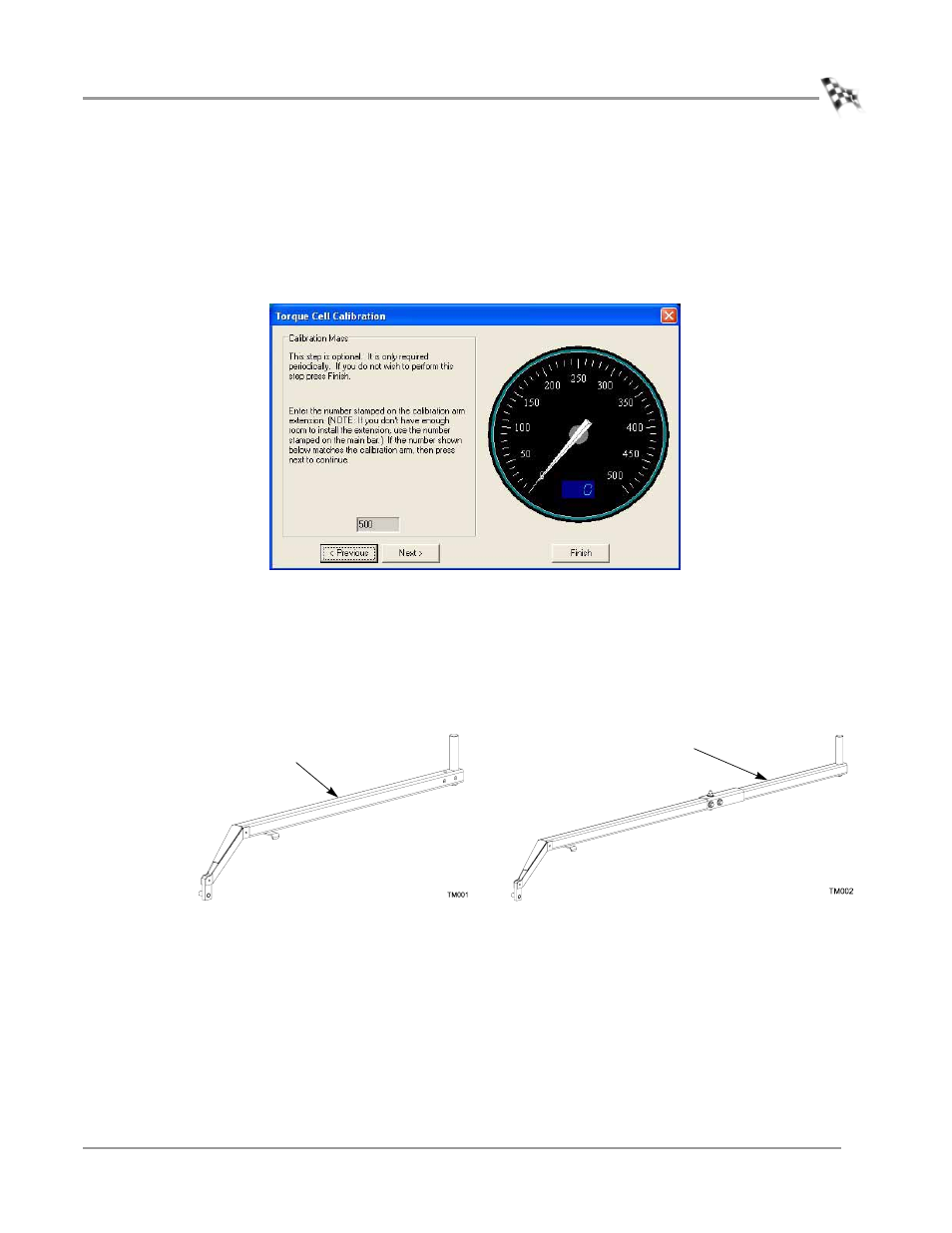

Figure 2-2: Calibration Mass Window
Enter the calibration number stamped on the calibration arm extension. If you do
not have enough room to install the extension, use the number stamped on the
main bar.
Note: Dynojet recommends you use the calibration arm with the extension unless
space constraints in your dyno room do not allow you to.
Figure 2-3: Calibration Arm
calibration arm
main bar
calibration arm with
extension
