OUTSIDE OF BATH

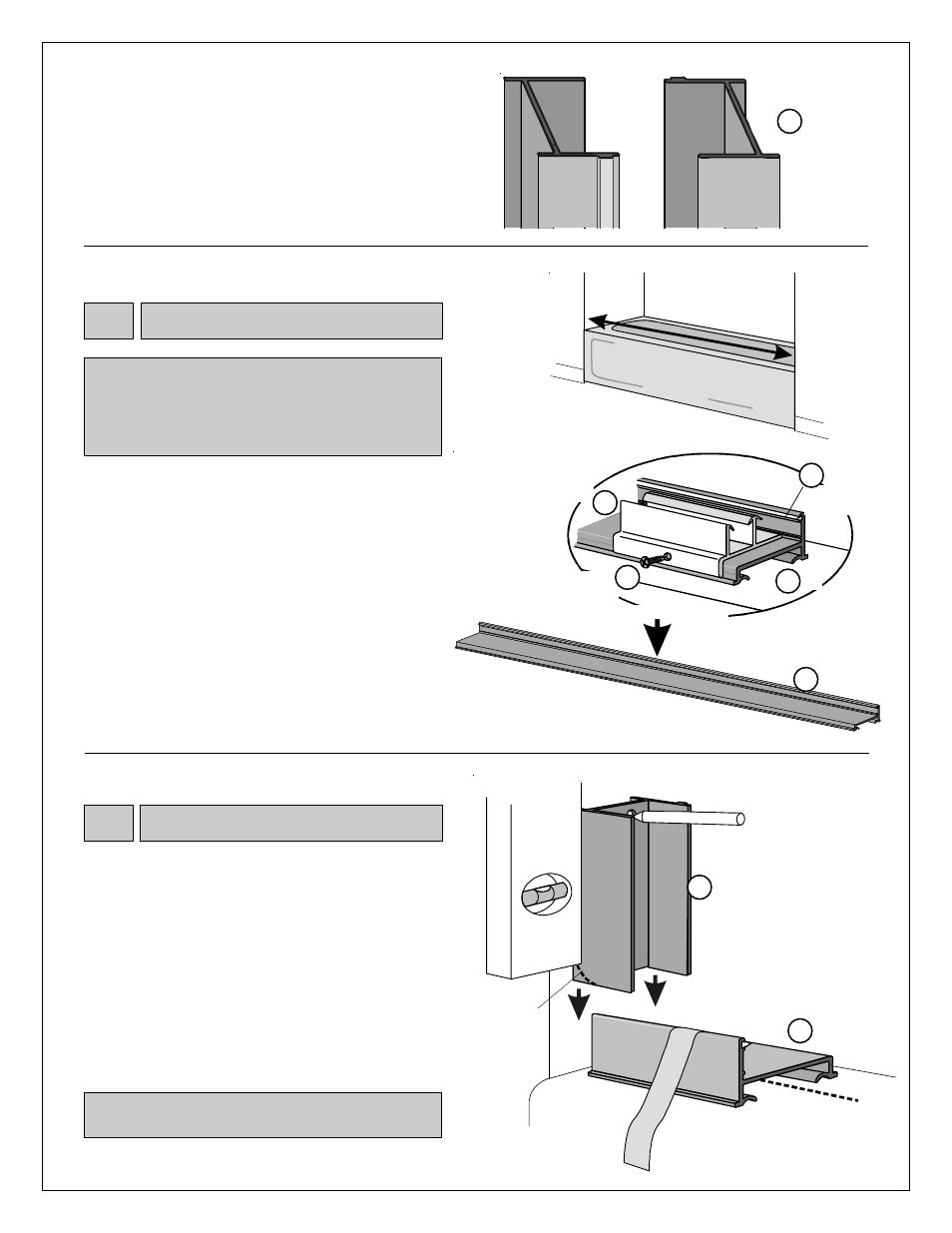

Position sill on centerline of tub with tall edge of sill
toward outside of tub. Tape sill to tub with masking
tape. This will help hold sill in place while positioning
jambs.
Place one jamb (B) against wall with short legs toward
wall and bottom resting firmly on sill. If necessary for a
smooth fit, file back of jamb (short legs) to fit contour of
your unit.
Align jamb vertically using a level and mark wall through
prepunched holes. Repeat procedure for remaining
jamb on opposite side.
Level
Jamb
Mark wall through
prepunched holes
and drill.
B
Centerline
File to fit
contour of
unit if
needed
Masking
Tape
When anchors (I) are used holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.)
Sill
A
Measure wall to wall opening at tub level and cut sill (A)
3/4" less than that measurement.
Slide vinyl track guide (V) into small groove on upright
of sill. Trim end flush with edge of sill.
Locate center of sill. Position guide (G) at center of sill
with curved leg fitting over curve of sill, and back of guide
fitting under small lip on back upright of sill.
Position 1/8" drill bit in small groove on curved leg of
guide and drill through guide into sill. Secure guide to
sill with 8A x 3/8" pan head screw (M).
Measure
Jambs are designed with
reversible surfaces, each
having a distinctly different
look. Select your
preference before
beginning installation.
Jamb B
Due to the manufacturing process, there may be
rack marks present at one end of your sill and
header. Sill and header must be trimmed to fit your
individual opening. When cutting sill and header,
make certain to trim off end with rack marks.
1 Sill
(A)
/ Guides
(V), (G)
Vinyl Track
Guide
V
Place guide at
center of sill
Sill
INSIDE OF BATH
Sill
A
A
Guide
G
8A x 3/8"
Pan Head
Screw
M
2 Jamb
(B)
