Note: Towel bar for outside panel faces outside of
shower, while towel bar for inside panel faces inside of
shower. Pull/stops should be mounted on edge of panel
closest to jambs as shown in illustration.

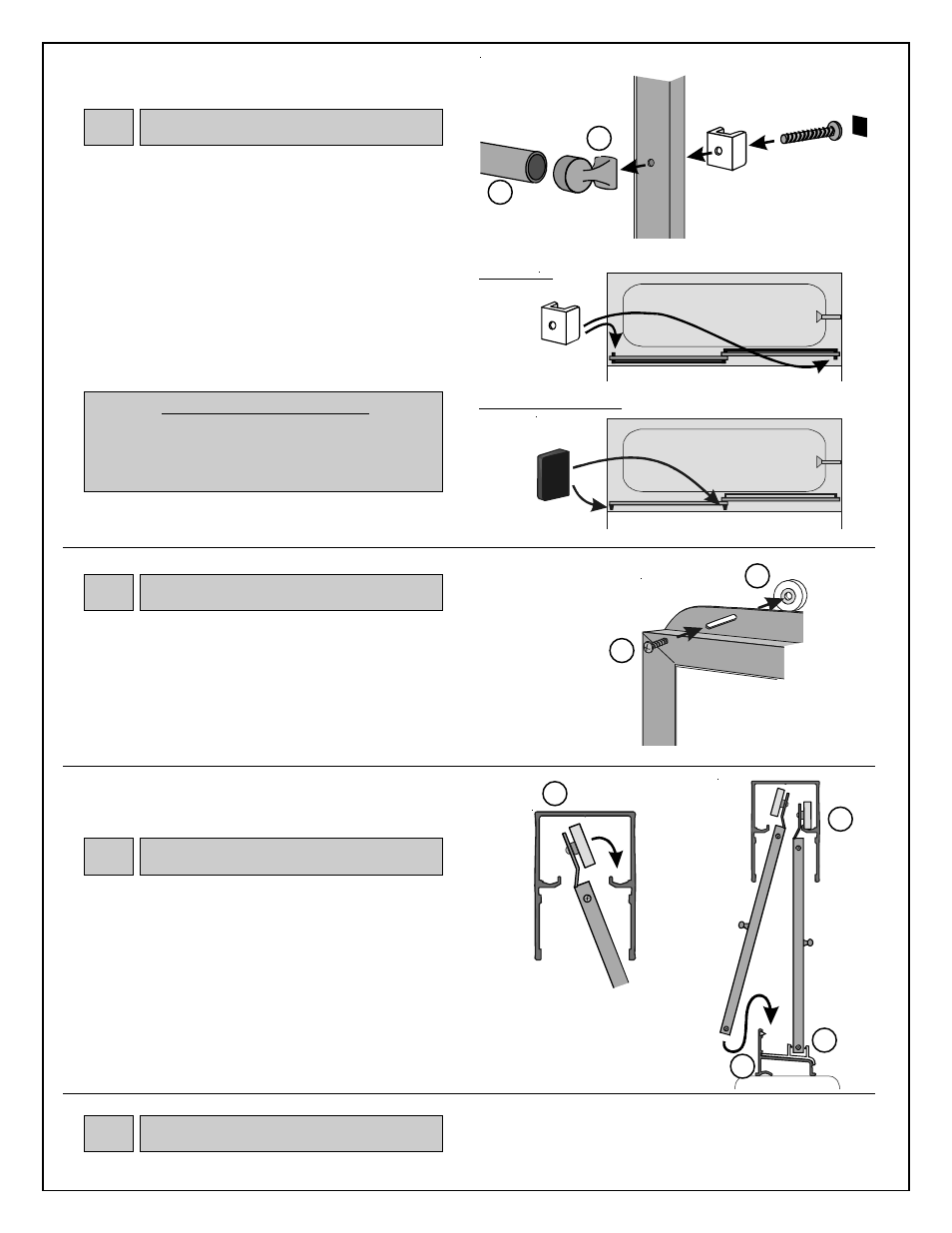

Mount one towel bar bracket and pull/stop onto door
panel using 8-32 x 1" truss head screw. Slide towel
bar (D) into mounted bracket. Slide second bracket
onto opposite end of towel bar. Mount bracket to door
panel using 8-32 x 3/4" truss head screw. Place pull/
stop label in recessed area of pull/stops, covering
screw head. Repeat for remaining panel.
Mount rollers (F) to top channel of doors using
8-32 x 3/8" truss head screws (K). Rollers are to be
mounted on same side of doors as towel bars and at
the midpoint of slots.
Rollers may be positioned up or down in slots to adjust
for out of plumb situations.
Lift inside door panel into header with towel bar facing
inside of bath. Seat rollers on roller track while guiding
bottom of door into sill guide. Repeat for outside door,
hanging panel with towel bar facing outside of bath.
Seal unit by caulking along outside of enclosure where metal
and bath meet, especially where sill and tub meet. If desired,
caulk inside of enclosure where jambs meet walls.
E
D
K
F
8-32 x 3/8"
Truss Head
Screw
Towel Bar
Bracket
Roller
Towel
Bar
8-32 x 1"
Truss Head
Screw
Inside
Door
Panel
Inside
Door Panel
Header
Header
Outside
Door
Panel
Sill
Guide
Pull/Stop
OUTSIDE
OF BATH
OUTSIDE
OF BATH
Door Panel
Pull/Stop
Pull Handle
C
C
G
A
TOWEL BAR / PULL HANDLE (L)
Towel bar is to be mounted on inside panel facing
inside of shower. Pull handles are to be mounted
on outside surface of the outside panel using
8A x 1" pan head screw.
Pull / Stop
Label
Towel Bar Kit:
Towel Bar/ Pull Handle Kit:
6 Towel Bars
(D)
7 Rollers
(F)
8 Hanging Door Panels
9 Caulking
